QuOmni 5G/LTE MIMO 2x2, ver. US

5m cable P/N: AO5G2U / 10m cable P/N: AO5G2U-1 / Nf connector P/N: AO5G2U-N

Omnidirectional ultra wideband 5G/LTE MIMO 2x2 antenna

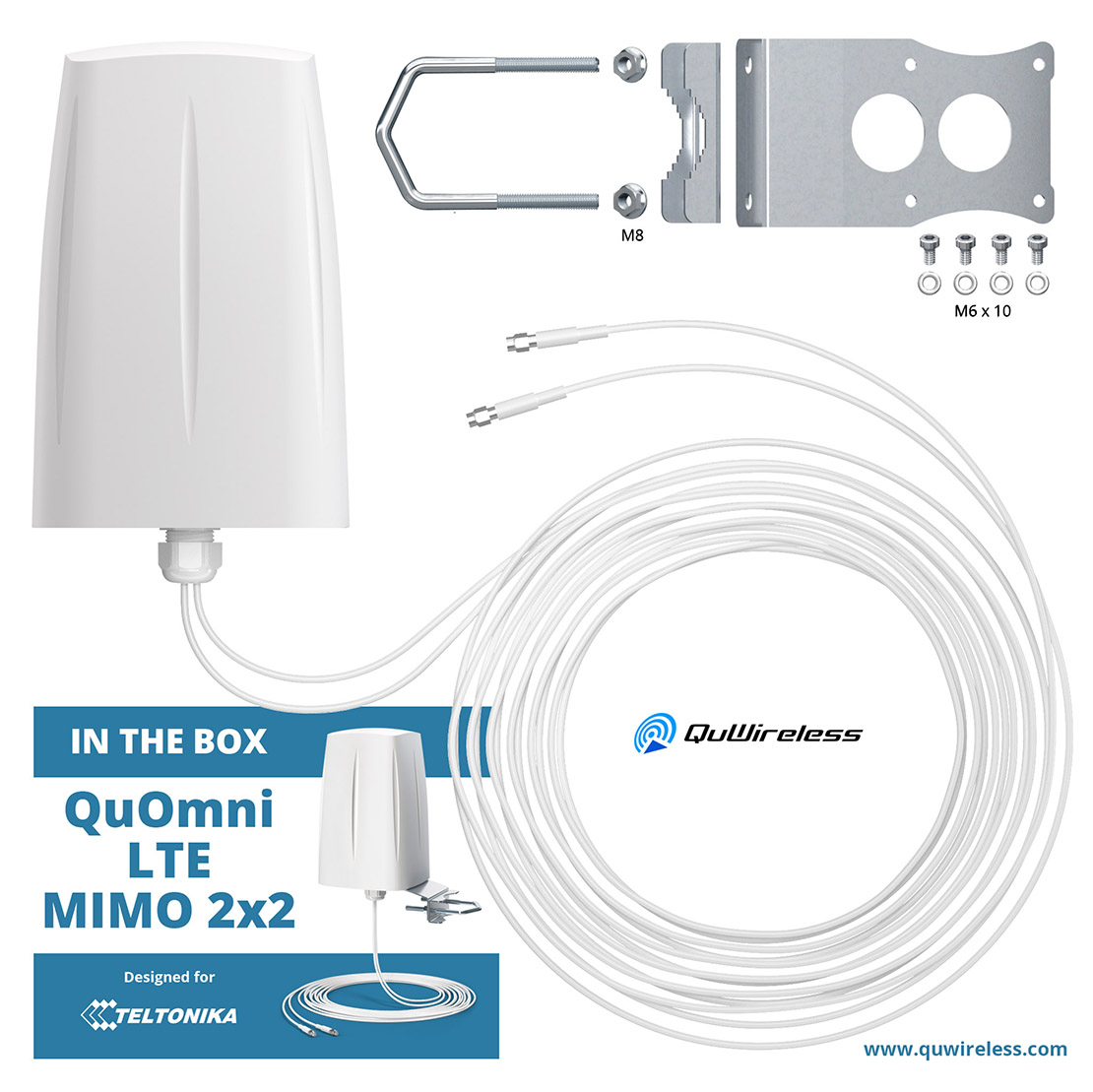

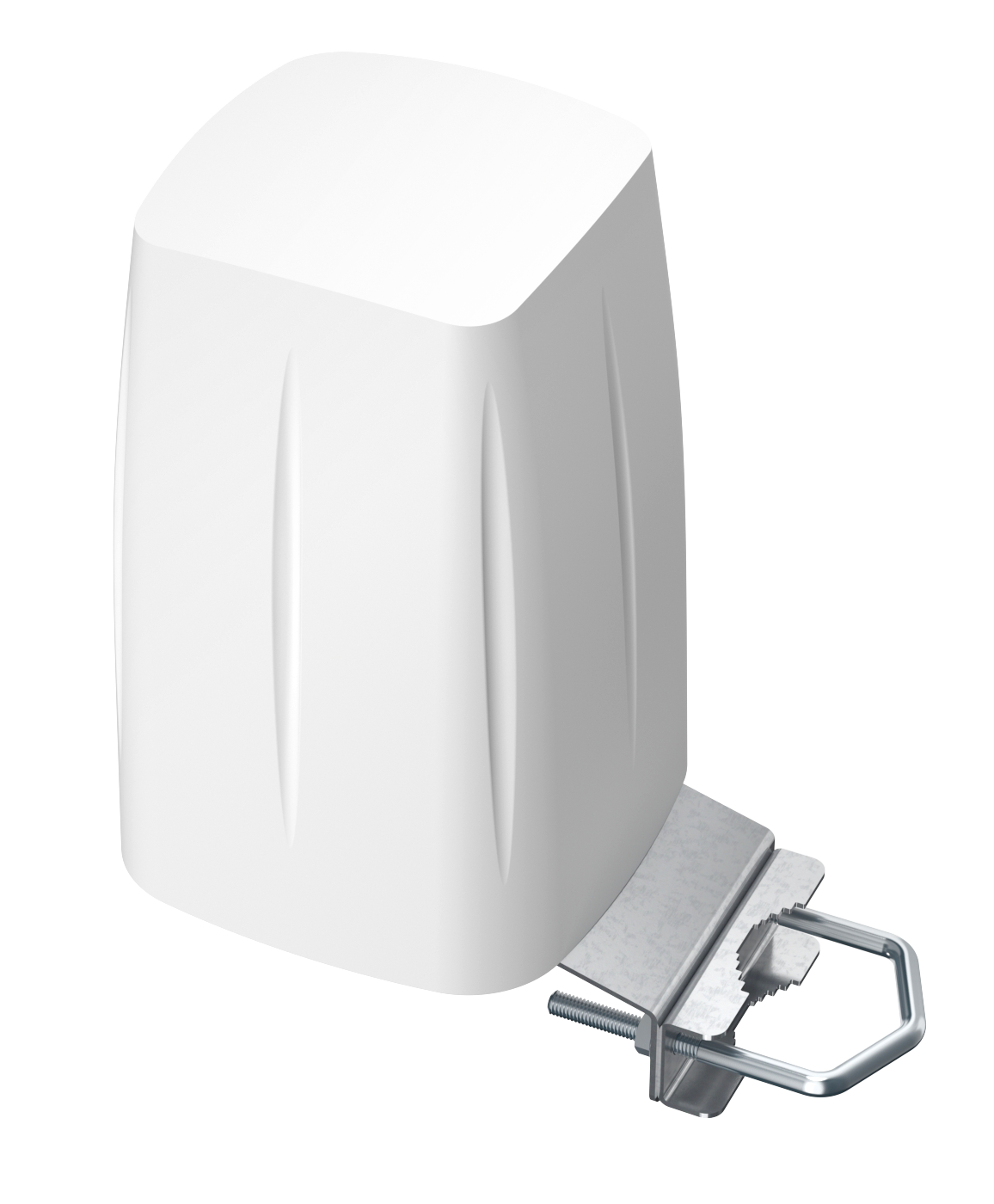

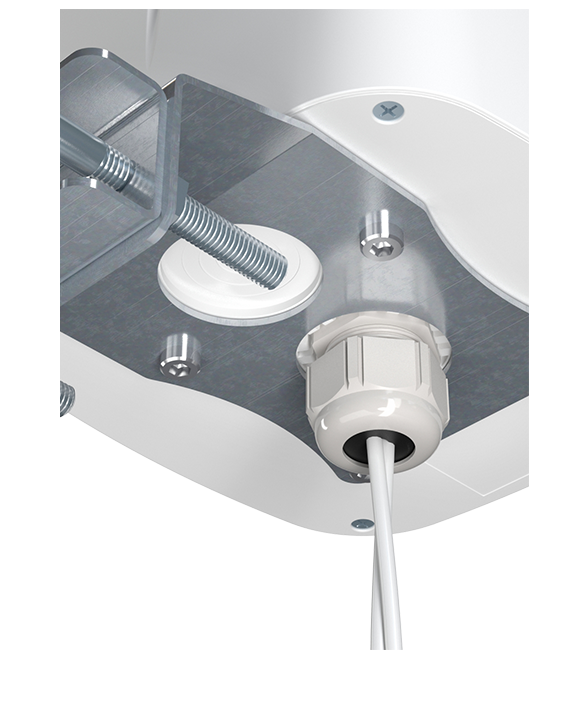

QuOmni 5G/LTE omnidirectional MIMO 2x2 is ultra wideband LTE Outdoor antenna. It´s primary designed for LTE/5G/3G/2G devices which require high efficiency connections. The antenna covers many LTE bands including the new Extended LTE Band 71, frequencies: 617 - 3800MHz. The mounting bracket allows the antenna to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/5G/3G/2G. It's ideal solution to use with all industrial and domestic 2x2 LTE modems and routers like: Teltonika, DIGI, Mikrotik, Robustel, Cisco, etc.

Datasheet

3D Model

Send Inquiry

LTE ANTENNA SPECIFICATION
Frequency	0.617 - 0.96 GHz 1.7 - 2.2 GHz 2.3 - 2.7 GHz 3.3 - 3.8 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.617 - 0.96 GHz : 3 dBi 1.7 - 2.2 GHz : 3.5 dBi 2.3 - 2.7 GHz : 3.5 dBi 3.3 - 3.8 GHz : 4dBi

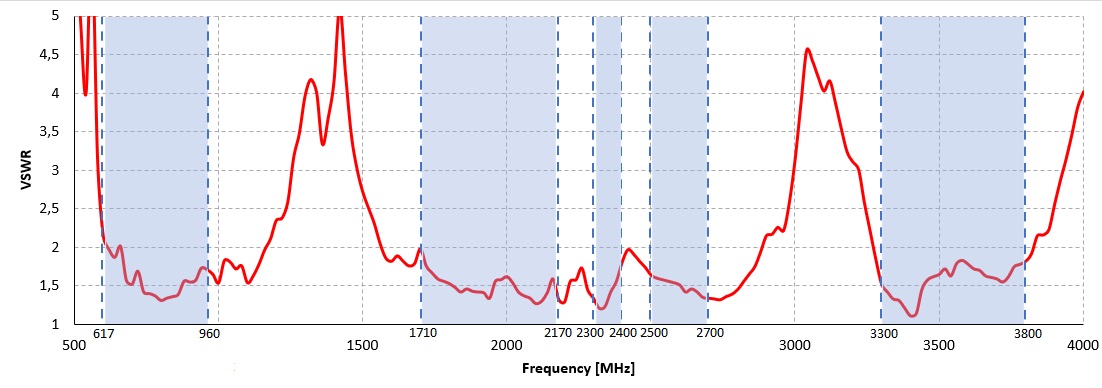

VSWR	<1.80, max <2.00

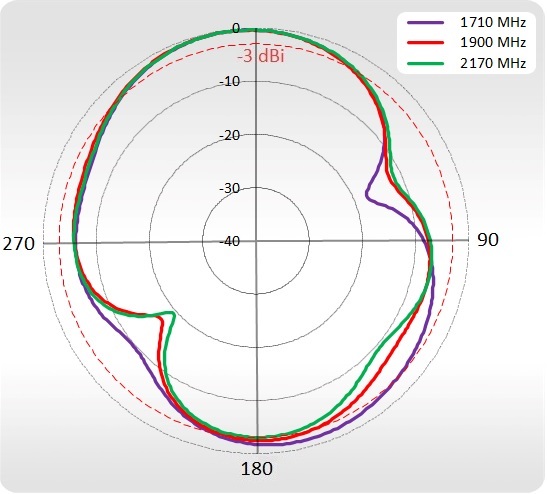

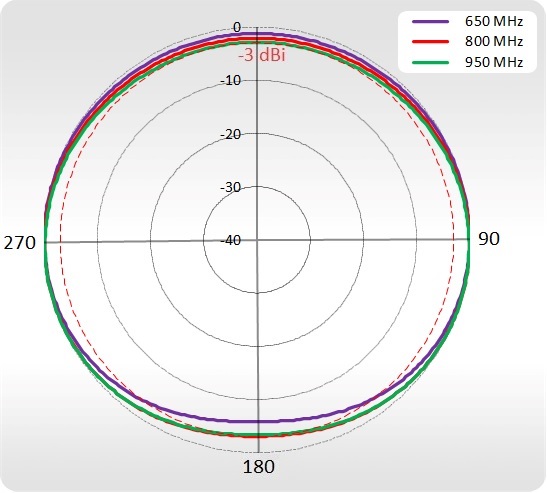

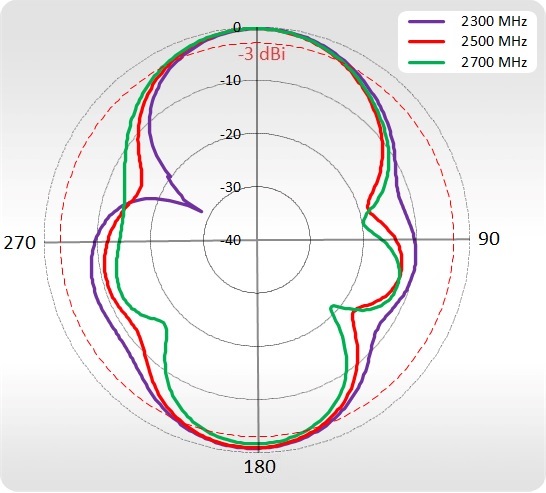

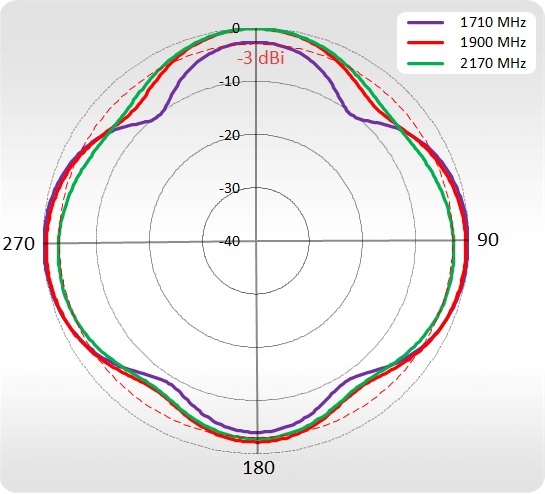

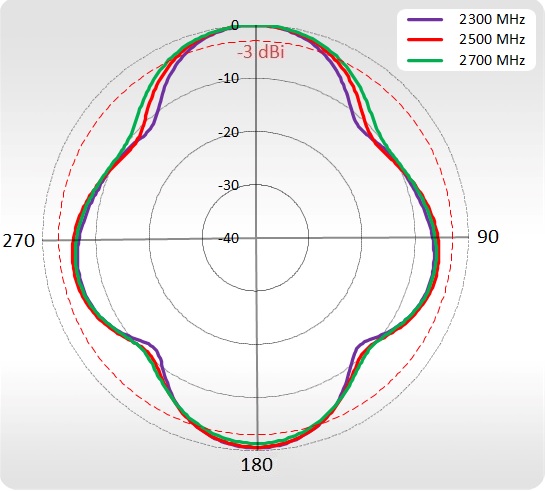

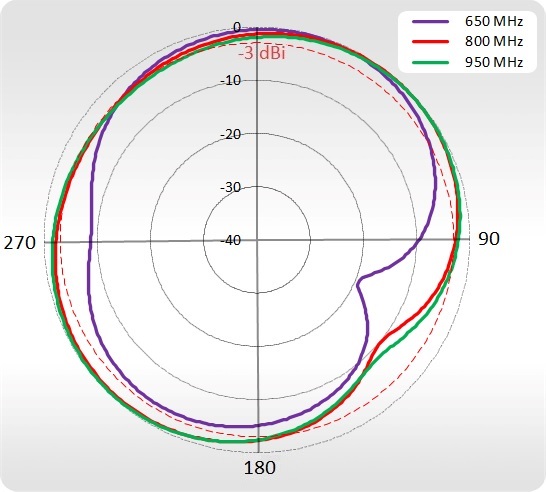

Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ω

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

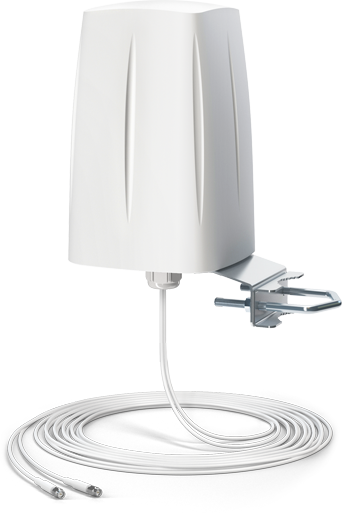

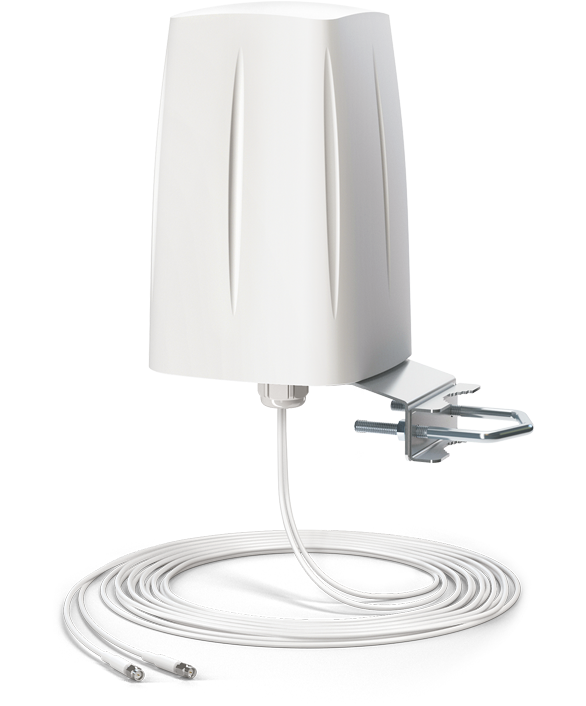

Cable length	5m (P/N: AO5G2U) or 10m (P/N: AO5G2U-1) or Nf connector (P/N: AO5G2U-N)
Cable type	LMR195 white

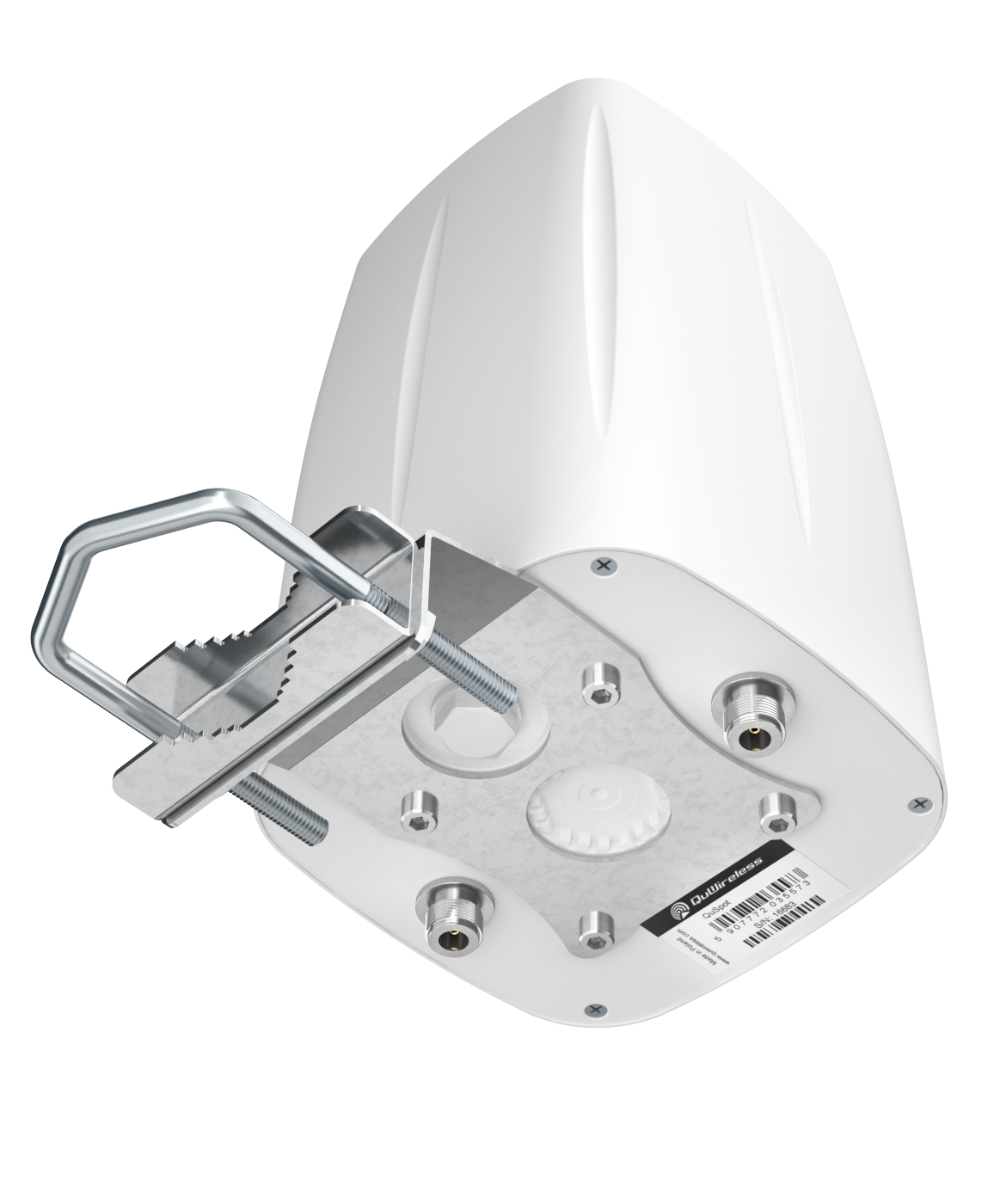

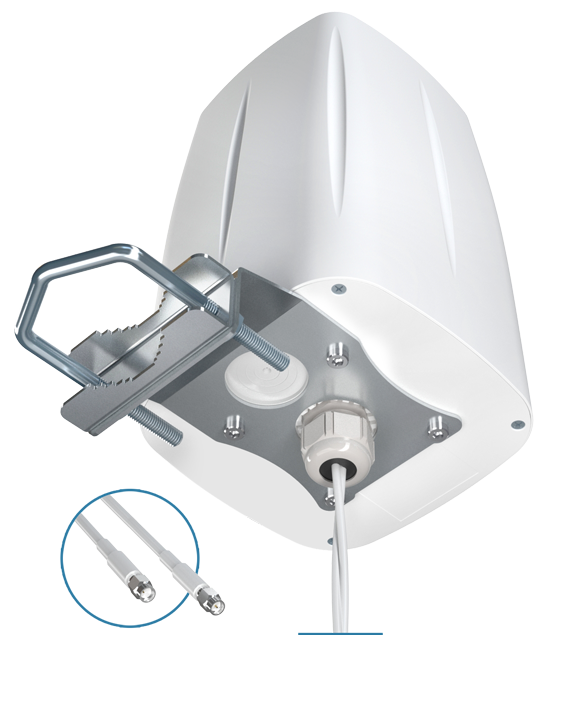

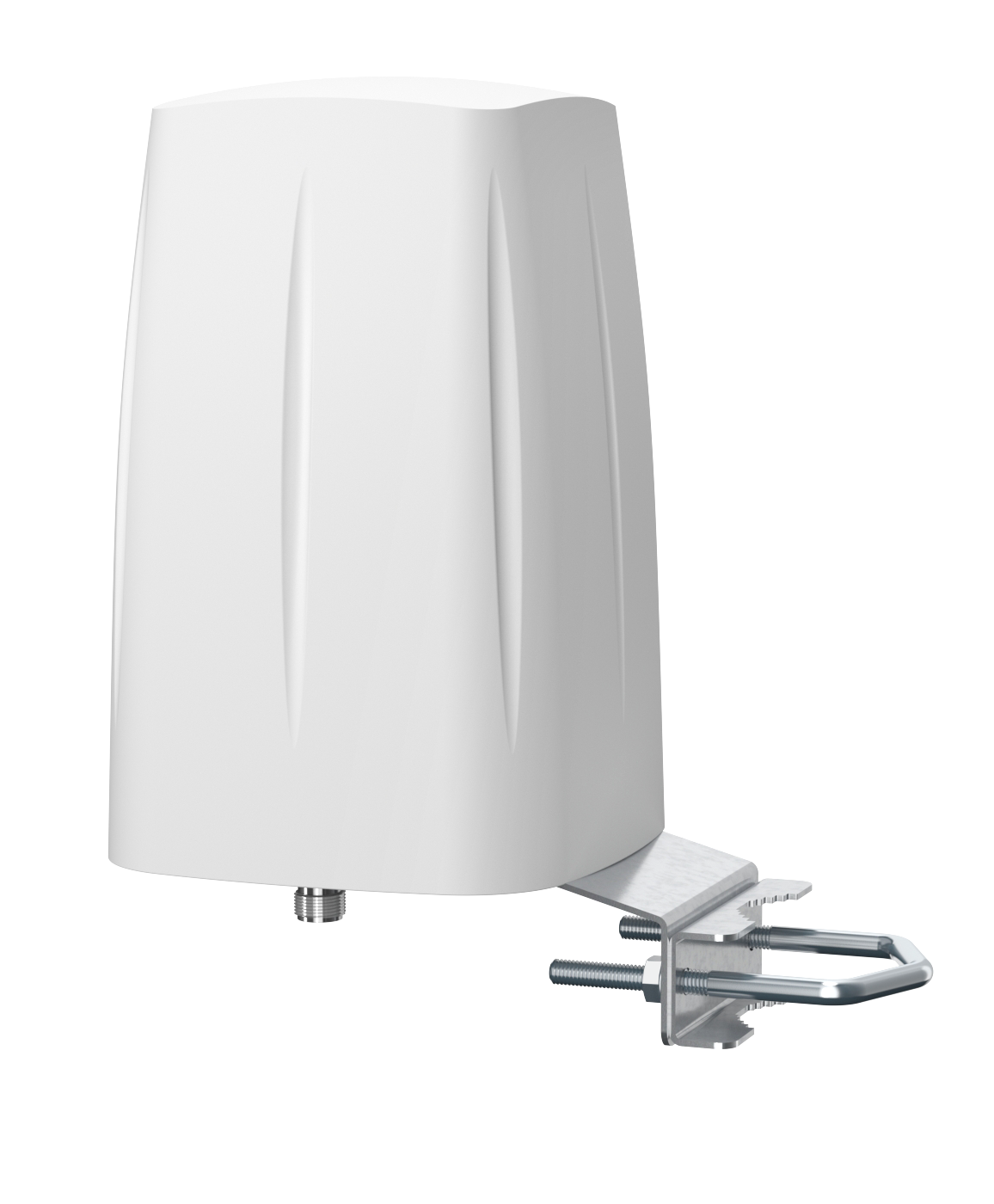

Connector type	2x integrated cables with SMA plug or 2x Nf connectors
