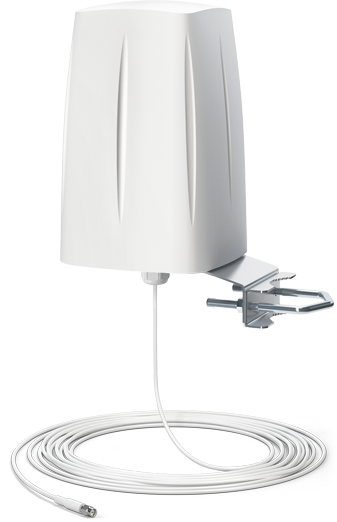

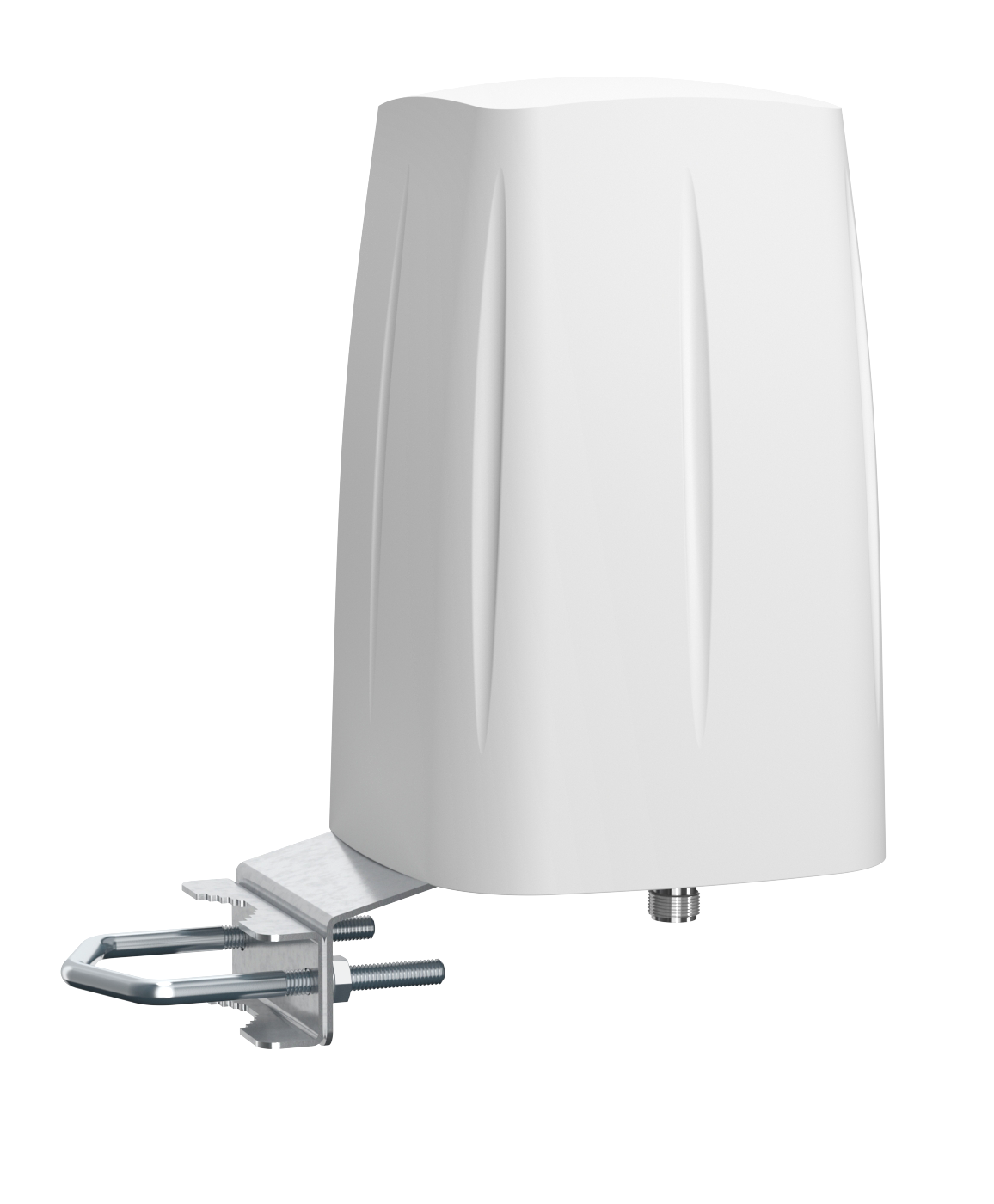

QuOmni LTE SISO

5m cable P/N: AOLS1 / 10m cable P/N: AOLS1-1 / Nf connector P/N: AOLS1-N

Omnidirectional multiband LTE SISO antenna

QuOmni LTE omnidirectional SISO LTE antenna is working in Vertical polarization, it´s desired for LTE/3G/2G connections. The antenna can be used for the most popular LTE bands (e.g. 3,7,20), frequencies 694-2700 MHz. That antenna is predicted to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/3G. It’s compatible with Teltonika: RUT230, TRB140, TRB141, TRB142, TRB145, TRM240, TRM250 and other SISO LTE/3G/2G modems and routers.
LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n53, n65, n66, n67, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain 0.694 - 0.96 GHz : 2 dBi
1.7 - 2.2 GHz : 2 dBi
2.2 - 2.7 GHz : 4 dBi
VSWR <1.60, max <2.00
Beamwidth 360°/35° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE
Ingress protection IP67
Dimensions 160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch
Weight 1.5 kg
3.31 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
Cable length 5m (P/N: AOLS1) or 10m (P/N: AOLS1-1) or Nf connector (P/N: AOLS1-N)
Cable type LMR195 white
Connector type 1x integrated cable with SMA plug or 1x Nf connector
Frequency bands
LTE / 4G
GSM
617 MHz 5 8 12 13 14 17 18 19 20 26 27 28 29 44 67 68 85 103 106 n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n81 n82 n83 n85 n89 n100 960 MHz
LTE / 4G
UMTS
1710 MHz 1 2 3 4 9 10 25 33 34 35 36 37 39 n1 n2 n3 n25 n34 n39 n80 n84 n86 n95 n98 n101 2170 MHz
LTE / 4G
WCS
DARS
2300 MHz 30 40 n30 n40 n97 2400 MHz
LTE / 4G
2400 MHz 7 38 41 53 69 n7 n38 n41 n53 n90 2700 MHz

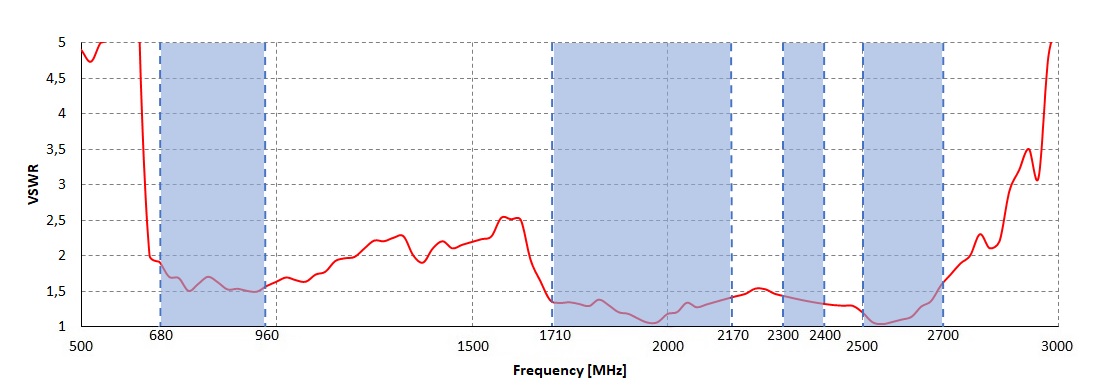

VSWR

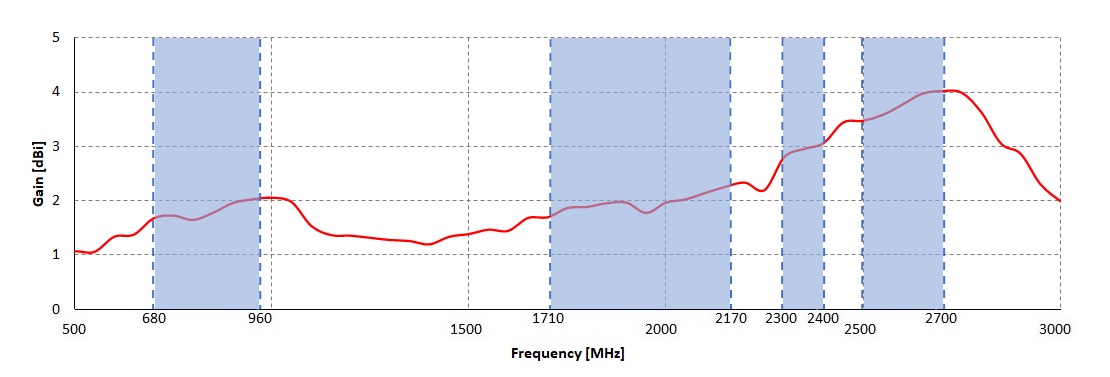

Gain

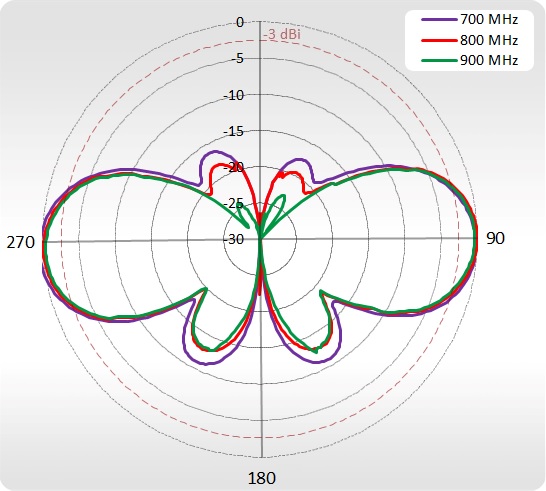

700-900 MHz Elevation
700-900 MHz Azimuth

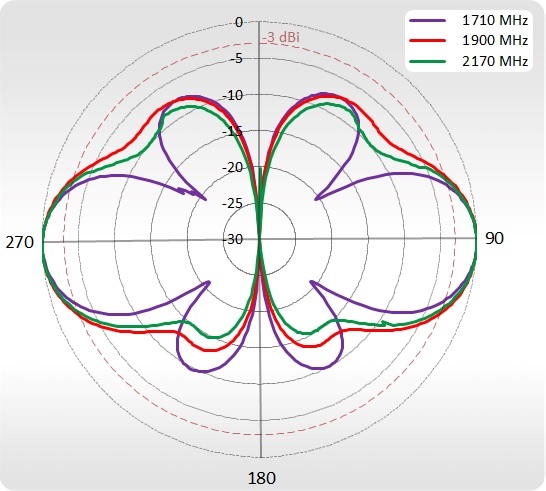

1710-2170 MHz Elevation

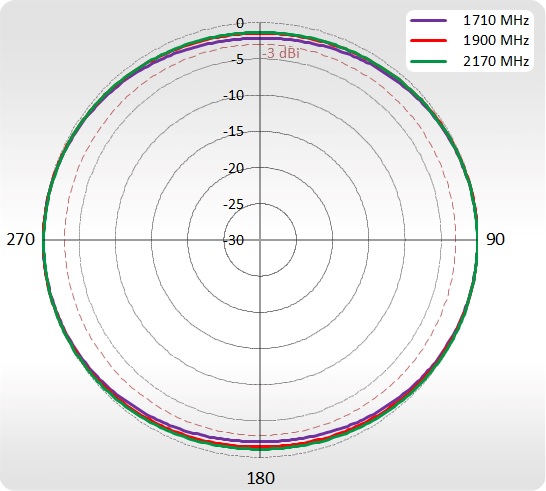

1710-2170 MHz Azimuth

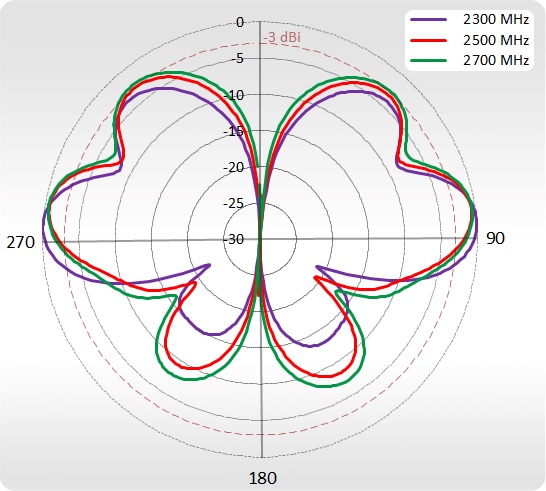

2300-2700 MHz Elevation

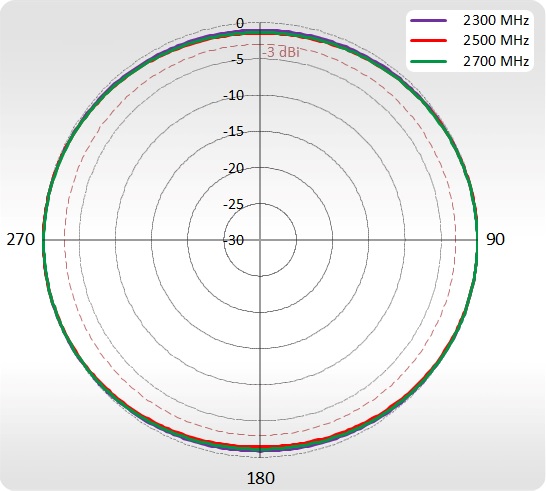

2300-2700 MHz Azimuth

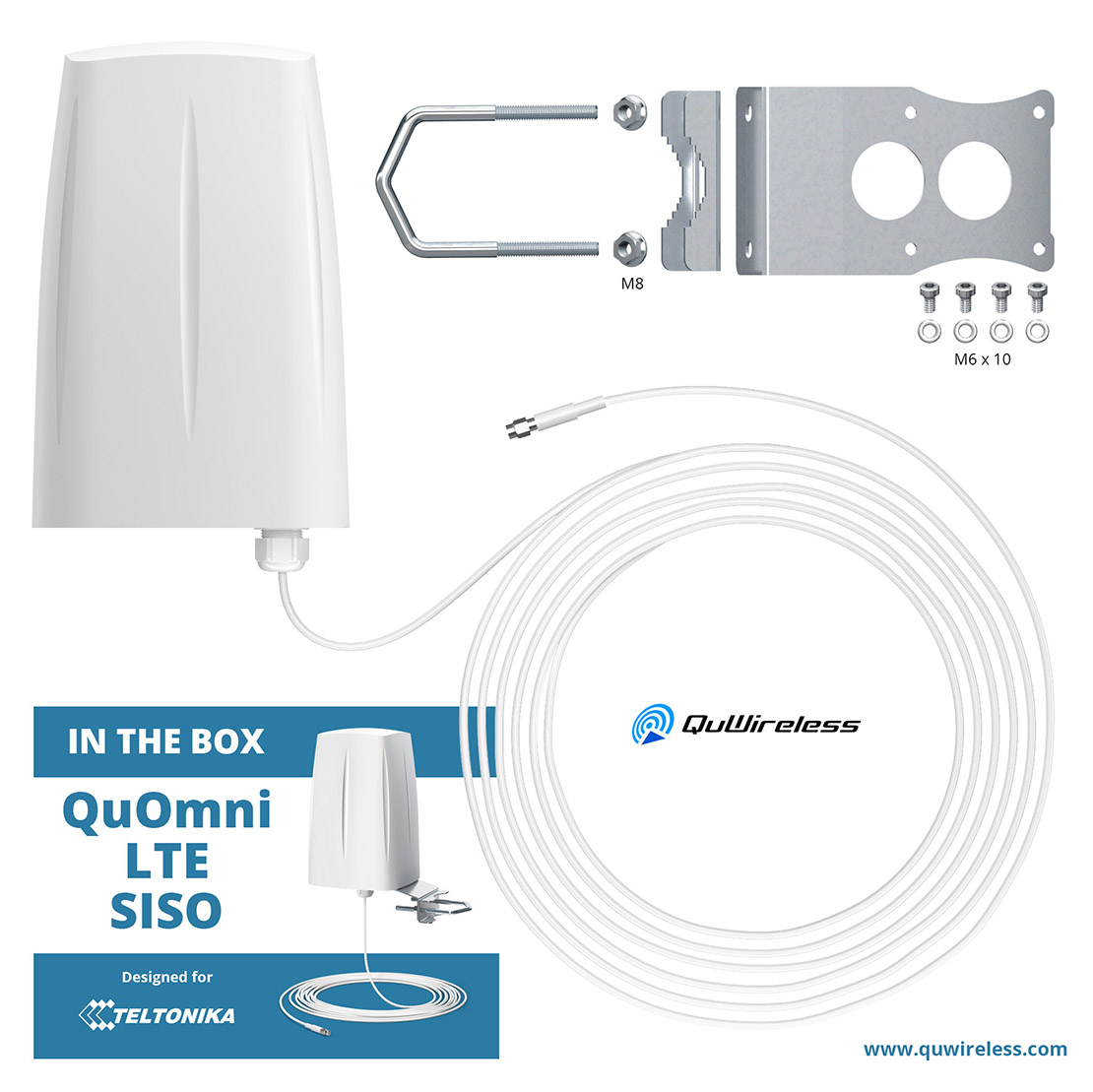

In the box
