QuOmni Wi-Fi dual band Nm
Omnidirectional concurrent dual band (2.4GHz & 5GHz) panel mount antenna

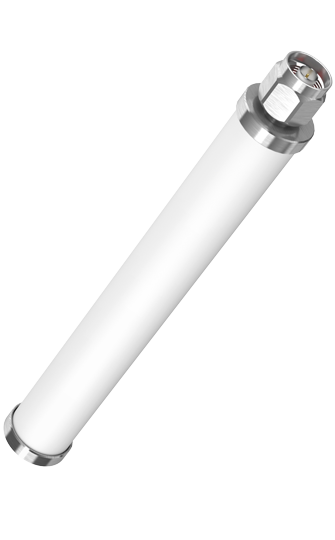

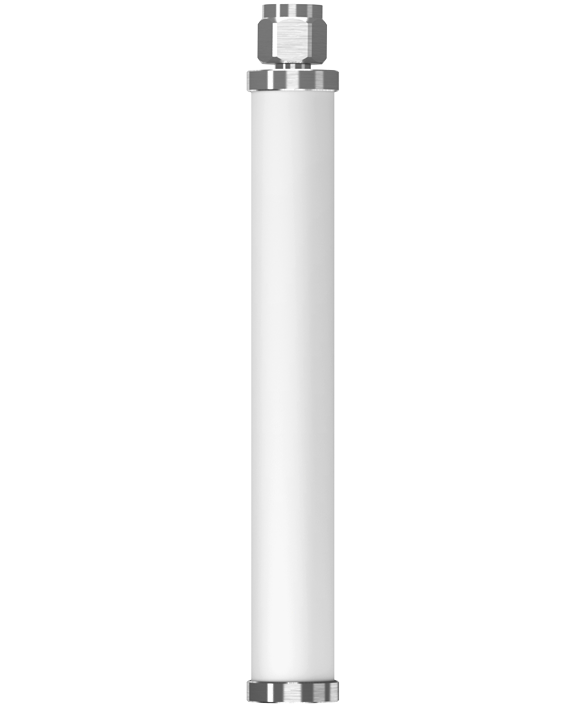

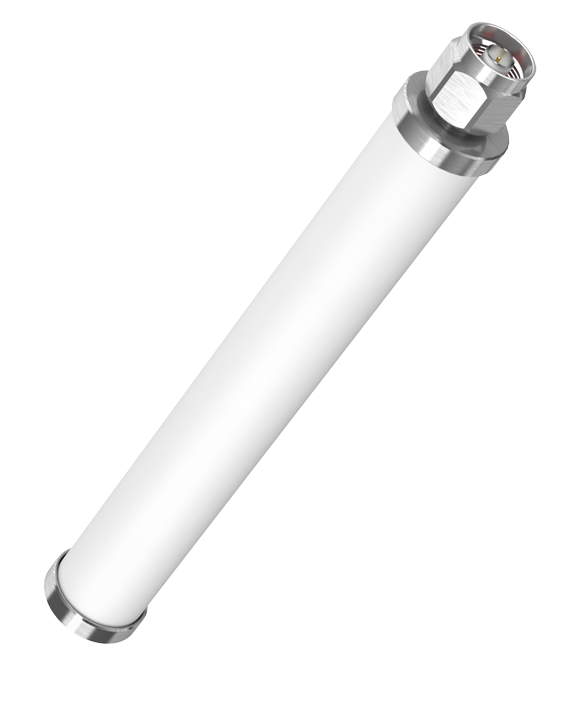

QuOmni Wi-Fi is omnidirectional concurrent dual band (2.4 GHz & 5 GHz) panel mount antenna. The antenna is for the omnidirectional data distribution like hotspots or small cells in outdoor environment. The system comes with NMale connector and is designed to be mounted on NFemale connector on the BOXes. QuOmni Wi-Fi dual band is predicted, among others, for being installed with WiBOX Medium, Large and Extra Large IP67 enslosures (they can be ordered with N-connectors installed).

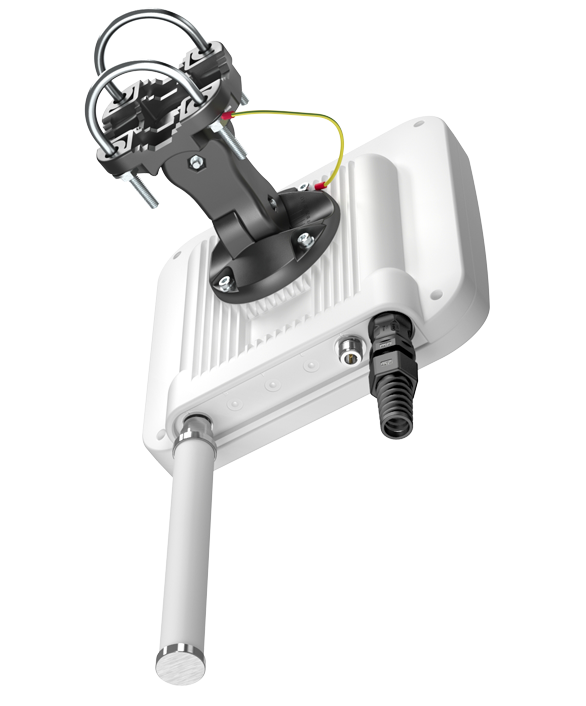

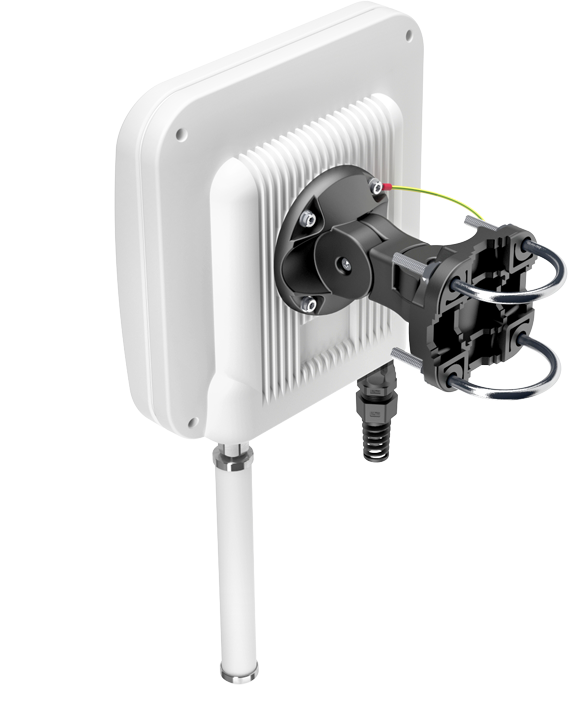

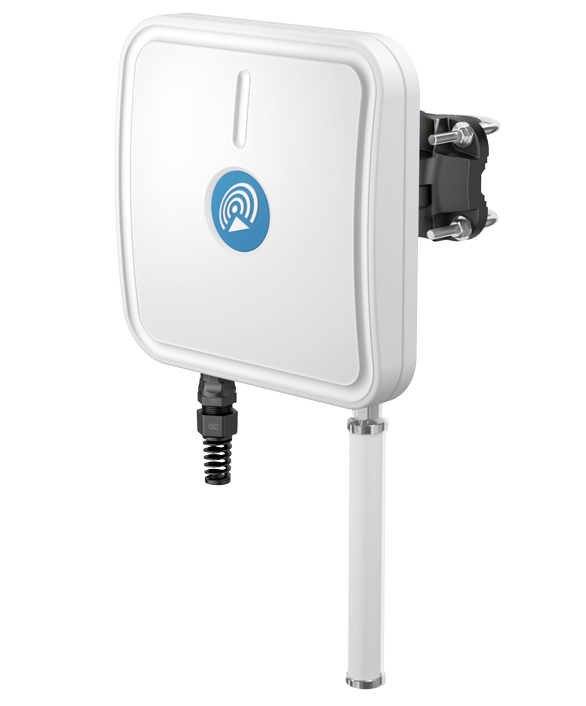

*The antenna doesn't come with WiBOX enclosure, photos are for demonstration purposes only.
| WI-FI ANTENNA SPECIFICATION | |
|---|---|
| Frequency | 2.40 - 2.50 GHz 4.70 - 6.00 GHz |
| Gain | 2.40 - 2.50 GHz : 6 dBi 4.70 - 6.00 GHz : 7 dBi |
| VSWR | <1.70, max <2.00 |
| Beamwidth | 360°/25° ±5° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| MECHANICAL SPECIFICATION | |
|---|---|
| Materials | ABS |
| Connector type | 1x N-Male |
| Ingress protection | IP67 |
| Dimensions | ⌀30 × 220 mm ⌀1.18 × 8.66 inch |
| Weight | 0.2 kg 0.44 lbs |
| Operating temperature | From -40°C to 80°C From -40°F to 176°F |
