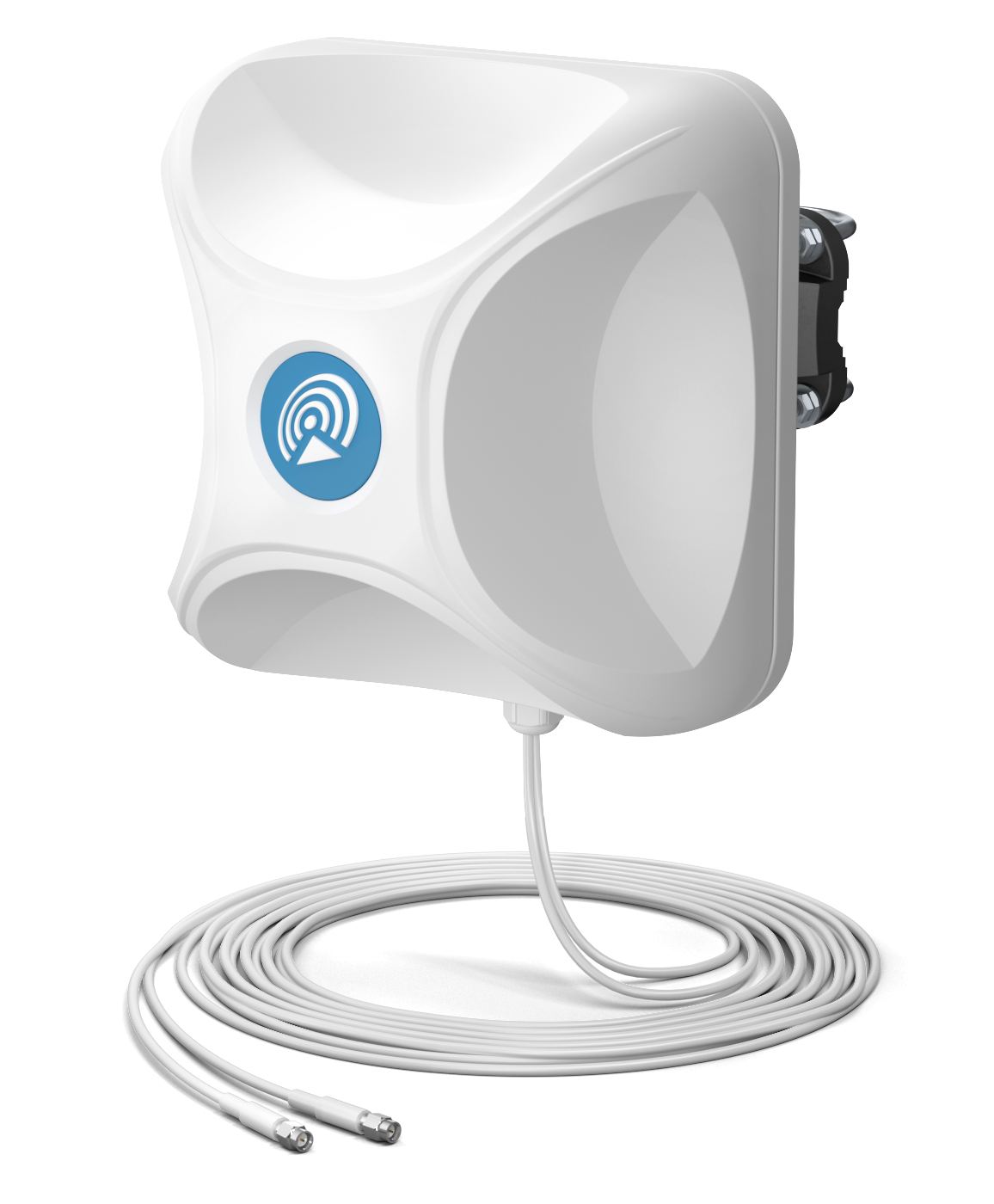

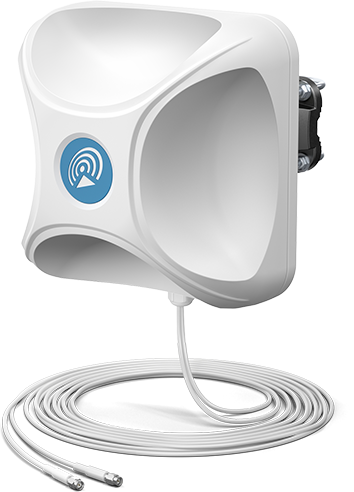

QuPanel 5G/LTE Global MIMO 2x2

5m cable P/N: AP5G2-G / 10m cable P/N: AP5G2-G1

Directional, high gain 5G/LTE MIMO 2x2 antenna

QuPanel 5G/LTE MIMO 2x2 is a high-gain, wide-band, directional antenna specifically designed for use with 5G wireless communication networks. This antenna was designed to provide reliable long-range wireless communication in outdoor environments.

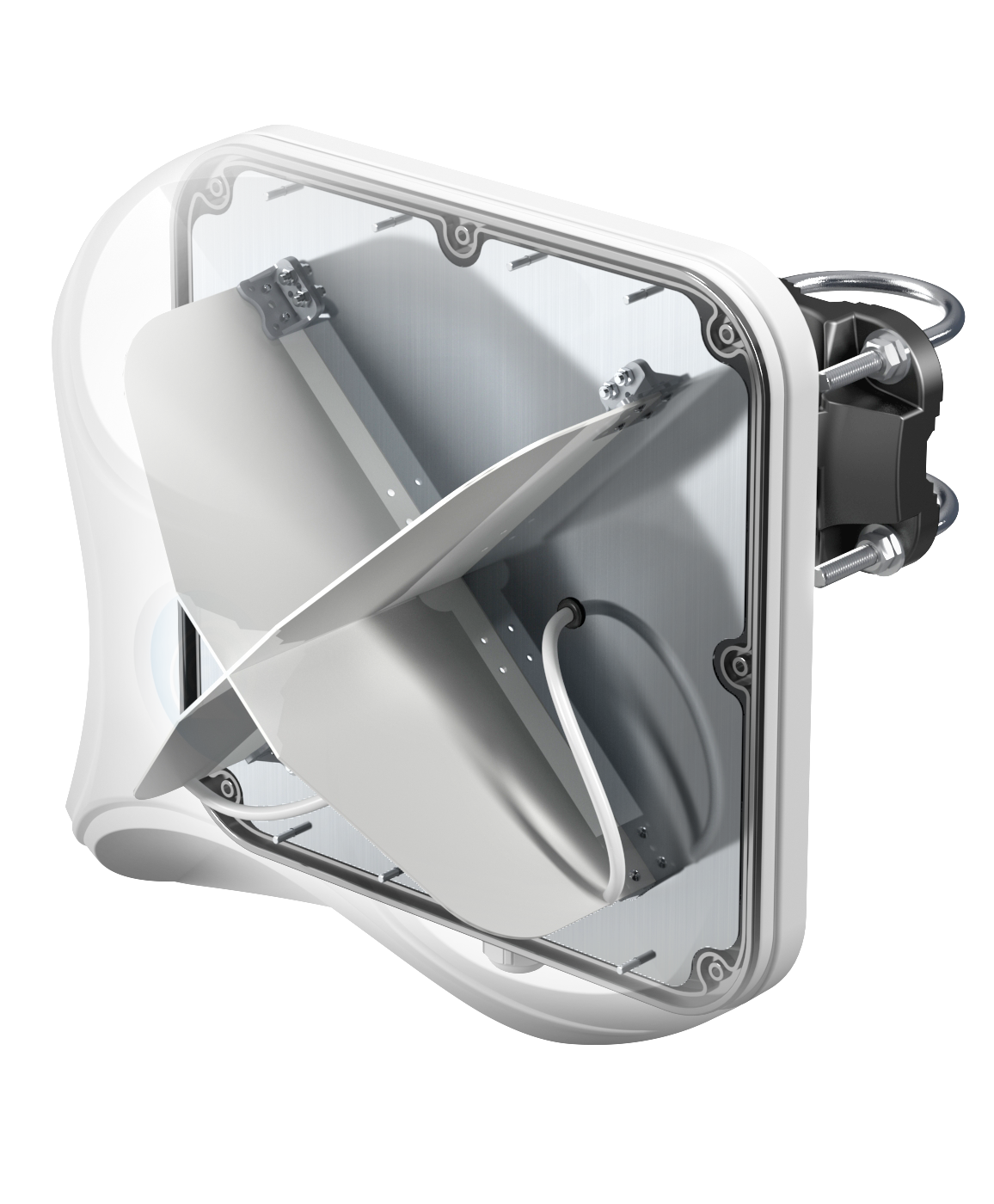

QuPanel 5G features a durable ABS enclosure and is weather-resistant, making it suitable for use in harsh outdoor conditions. It offers a high gain of up to 7dBi, which allows for long- range communication over distances of several kilometers.

Due to ultra wide working frequency range (617MHz – 6.0GHz) , the antenna is universal client for 5G bands, like n77, n78, n79, 32, 71, covering a worldwide frequency range.

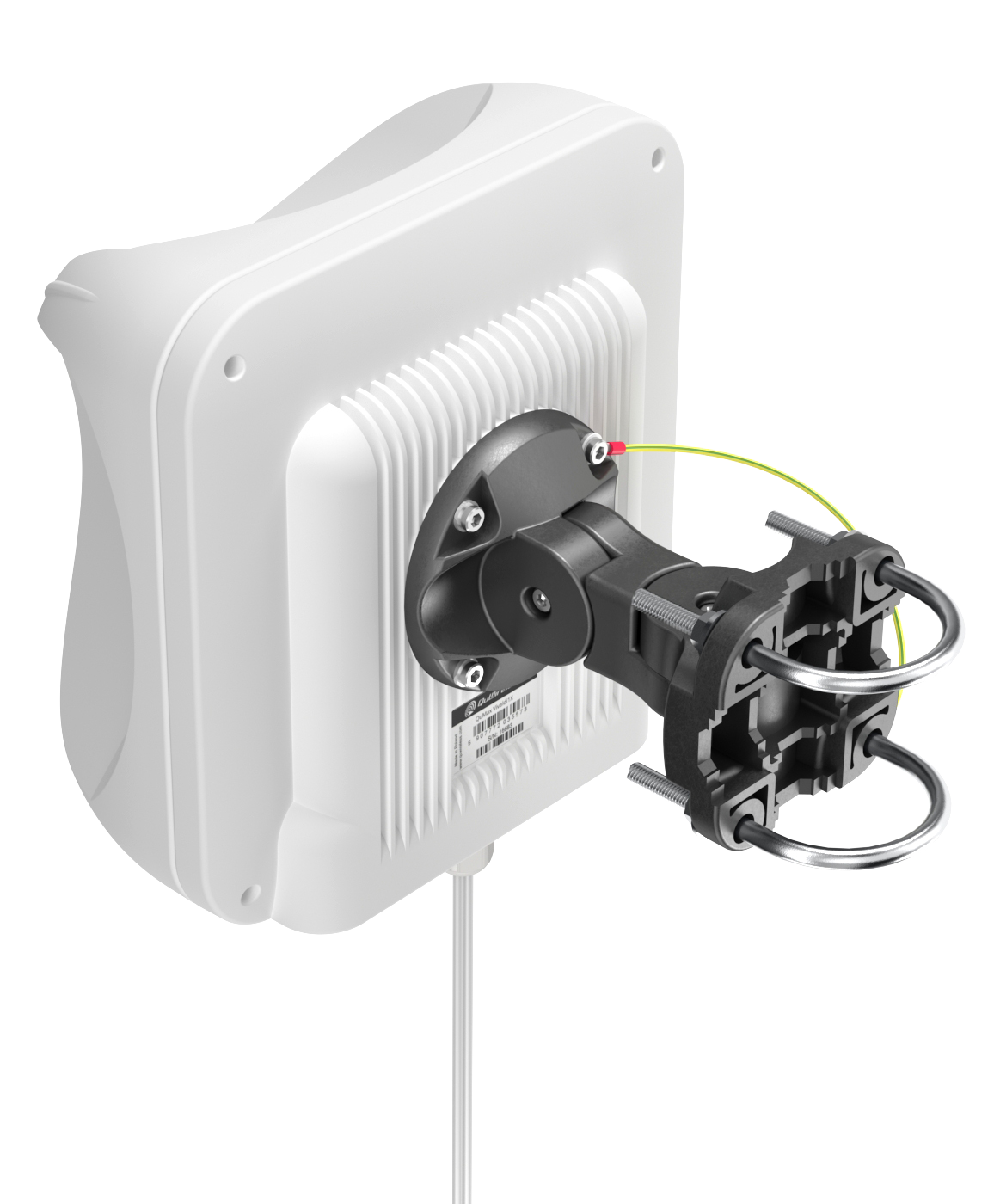

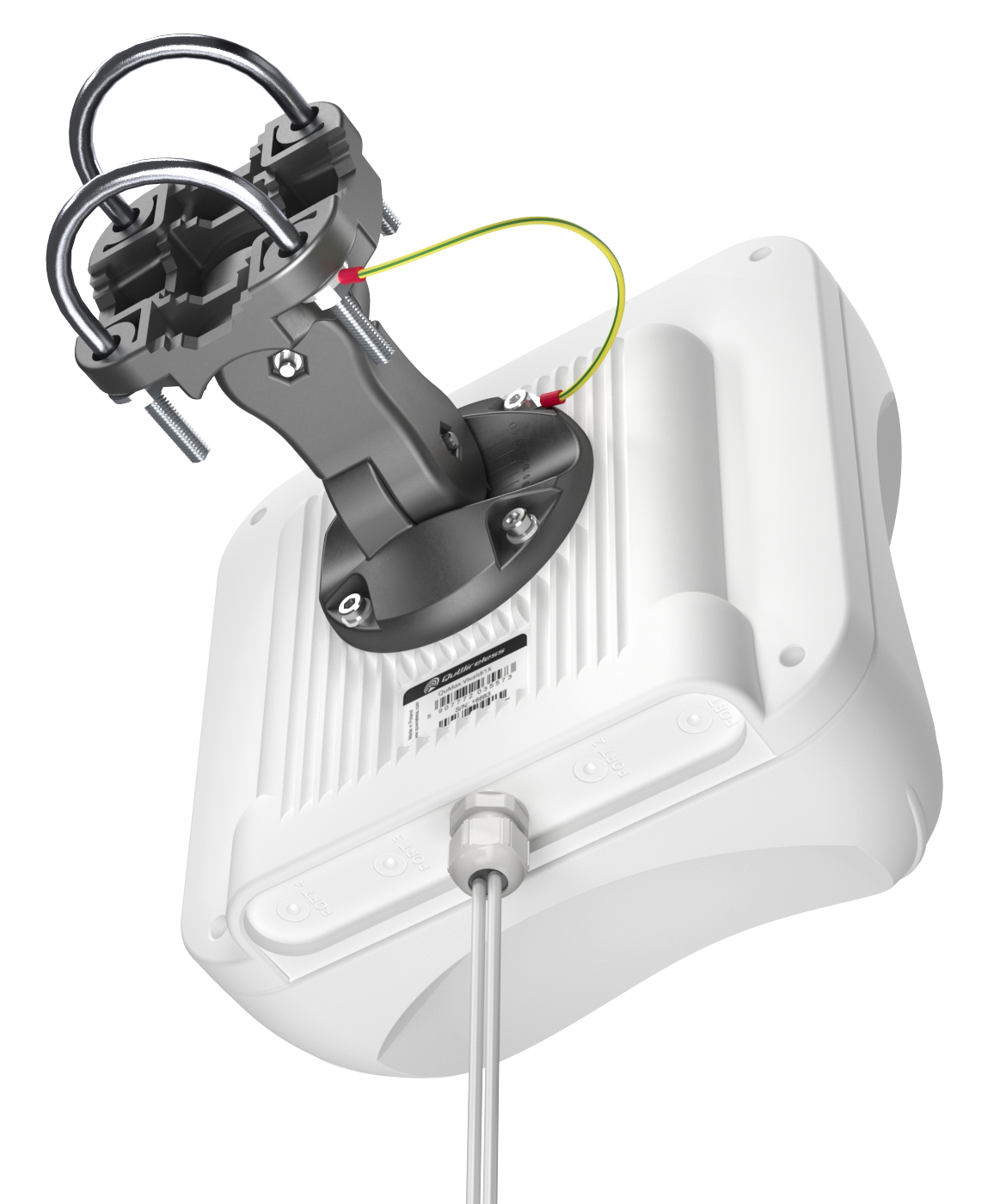

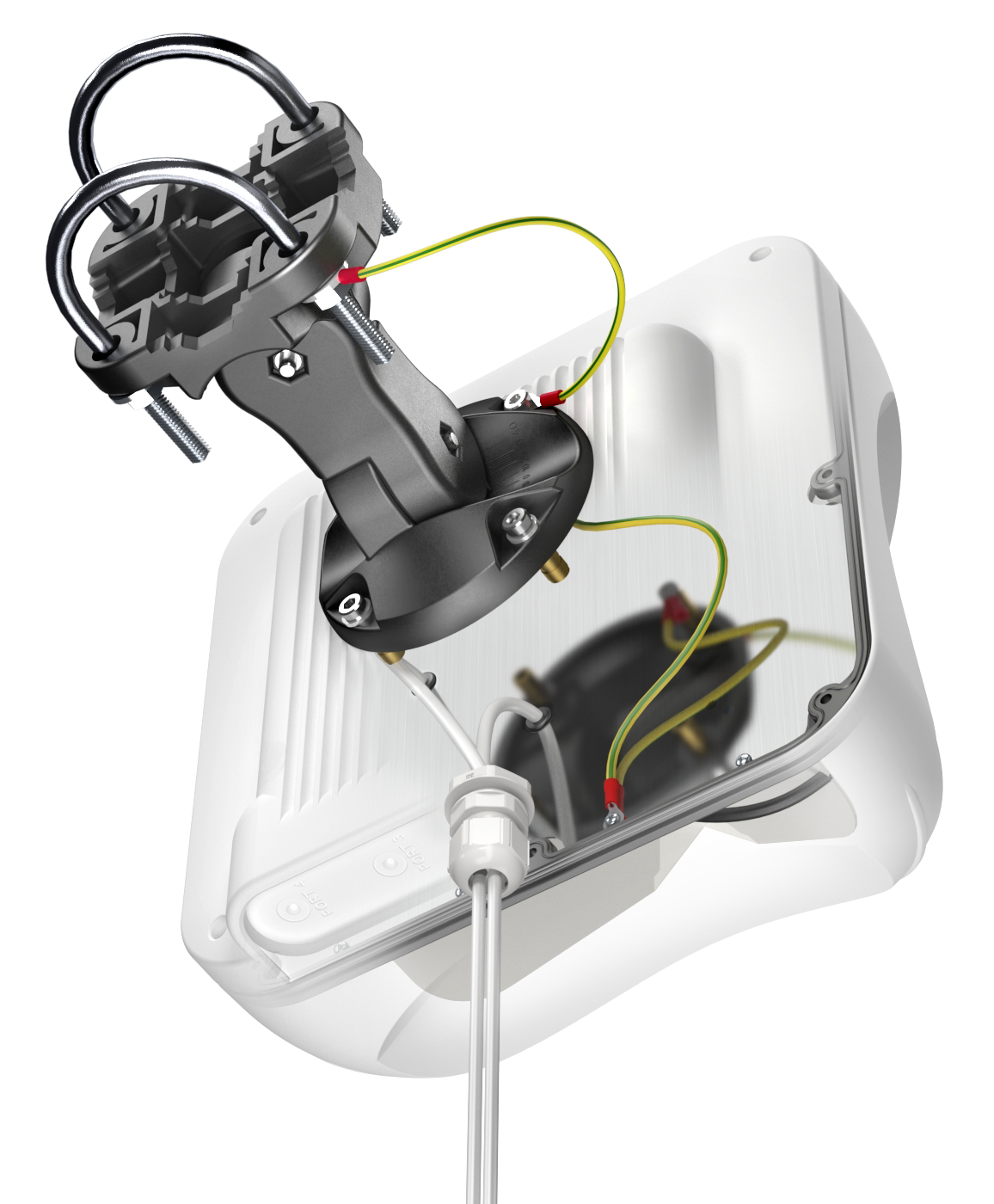

All QuWireless products were designed to be easy to install and come with mounting bracket that can be used to mount it on poles or walls.


LTE ANTENNA SPECIFICATION
Frequency 0.617 - 0.96 GHz
1.7 - 2.7 GHz
3.3 - 6.0 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain 0.617 - 0.96 GHz : 6 dBi
1.7 - 2.7 GHz : 7 dBi
3.3 - 4.6 GHz : 7 dBi
4.7 - 6.0 GHz : 5.5 dBi
VSWR <2.00, max <3.00
Beamwidth 80°/80° ±15°
Polarization X (±45°)
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Ingress protection IP67
Dimensions 270 x 270 x 175.5 mm
10.63 x 10.63 x 6.90 inch
Weight 1.8 kg
3.97 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
Cable length 5m (P/N: AP5G2-G) or 10m (P/N: AP5G2-G1)
Cable type LMR195 white
Connector type 2x integrated cables with SMA plug
Frequency bands
LTE / 4G
GSM
617 MHz 5 8 12 13 14 17 18 19 20 26 27 28 29 44 67 68 71 85 103 106 n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n71 n81 n82 n83 n85 n89 n100 960 MHz
LTE / 4G
UMTS
1710 MHz 1 2 3 4 9 10 25 33 34 35 36 37 39 n1 n2 n3 n25 n34 n39 n80 n84 n86 n95 n98 n101 2170 MHz
LTE / 4G
WCS
DARS
2300 MHz 30 40 n30 n40 n97 2400 MHz
LTE / 4G
2400 MHz 7 38 41 53 69 n7 n38 n41 n53 n90 2700 MHz
LTE / 5G
3300 MHz 22 42 43 48 49 52 n48 n78 3800 MHz
PORT 1 650 - 950 MHz LTE Azimuth
PORT 1 650 - 950 MHz LTE Elevation
PORT 1 1710 - 2170 MHz LTE Azimuth
PORT 1 1710 - 2170 MHz LTE Elevation
PORT 1 2300 - 2700 MHz LTE Azimuth
PORT 1 2300 - 2700 MHz LTE Elevation
PORT 1 3300 - 3800 MHz LTE Azimuth
PORT 1 3300 - 3800 MHz LTE Elevation
PORT 1 4200 - 4600 MHz LTE Azimuth
PORT 1 4200 - 4600 MHz LTE Elevation
PORT 1 5000 - 5900 MHz LTE Azimuth
PORT 1 5000 - 5900 MHz LTE Elevation
PORT 2 650 - 950 MHz LTE Azimuth
PORT 2 650 - 950 MHz LTE Elevation
PORT 2 1710 - 2170 MHz LTE Azimuth
PORT 2 1710 - 2170 MHz LTE Elevation
PORT 2 2300 - 2700 MHz LTE Azimuth
PORT 2 2300 - 2700 MHz LTE Elevation
PORT 2 3300 - 3800 MHz LTE Azimuth
PORT 2 3300 - 3800 MHz LTE Elevation
PORT 2 4200 - 4600 MHz LTE Azimuth
PORT 2 4200 - 4600 MHz LTE Elevation
PORT 2 5000 - 5900 MHz LTE Azimuth
PORT 2 5000 - 5900 MHz LTE Elevation
