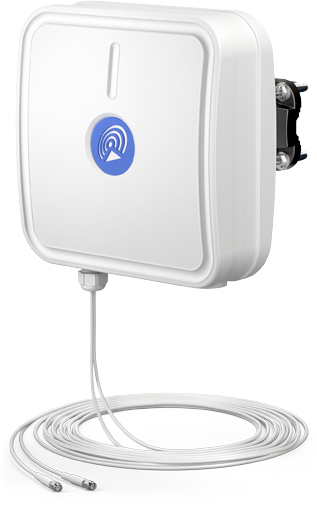

QuPanel LTE HP MIMO 2x2

5m P/N: APLM2-H / 10m P/N: APLM2-H1 / Nf connector P/N: APLM2-HN

Directional High Power multiband LTE MIMO 2x2 antenna

QuPanel LTE HP directional MIMO 2x2 high gain antenna is predicted for 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for LTE bands like LTE700/800/1800/1900/2100/2300/2600. It’s compatible with Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2x2 LTE/3G/2G modems and routers.

LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n53, n65, n66, n67, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain 0.694 - 0.96 GHz : 7 dBi
1.7 - 2.2 GHz : 7 dBi
2.2 - 2.7 GHz : 7 dBi
Front-to-Back >10 dB
VSWR <1.70, max <2.00
Beamwidth 70°/70° ±15°
Polarization Dual polarized X-Pol
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Ingress protection IP67
Dimensions 272 x 276 x 96 mm
10.71 x 10.87 x 3.78 inch
Weight 1.8 kg
3.97 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
Cable length 5m (P/N: APLM2-H) or 10m (P/N: APLM2-H1) or Nf connector (P/N: APLM2-HN)
Cable type LMR195 white
Connector type 2x integrated cables with SMA plug or 2x Nf connectors
Frequency bands
LTE / 4G
GSM
617 MHz 5 8 12 13 14 17 18 19 20 26 27 28 29 44 67 68 85 103 106 n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n81 n82 n83 n85 n89 n100 960 MHz
LTE / 4G
UMTS
1710 MHz 1 2 3 4 9 10 25 33 34 35 36 37 39 n1 n2 n3 n25 n34 n39 n80 n84 n86 n95 n98 n101 2170 MHz
LTE / 4G
WCS
DARS
2300 MHz 30 40 n30 n40 n97 2400 MHz
LTE / 4G
2400 MHz 7 38 41 53 69 n7 n38 n41 n53 n90 2700 MHz

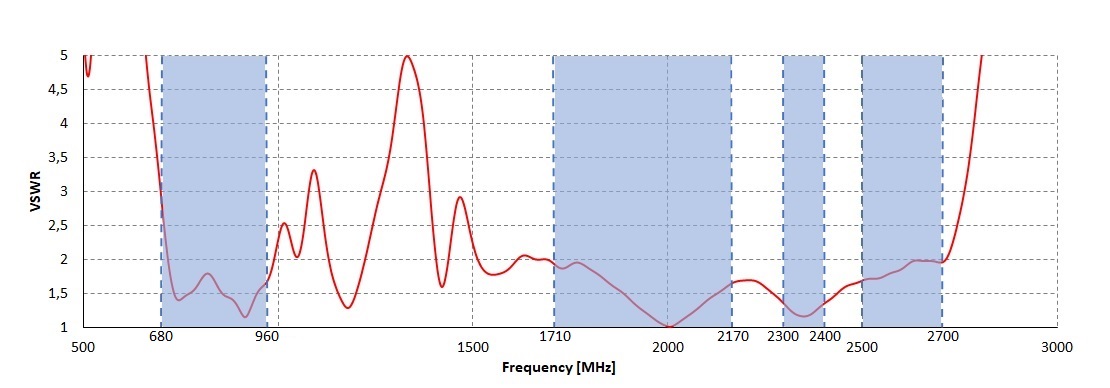

VSWR PORT 1

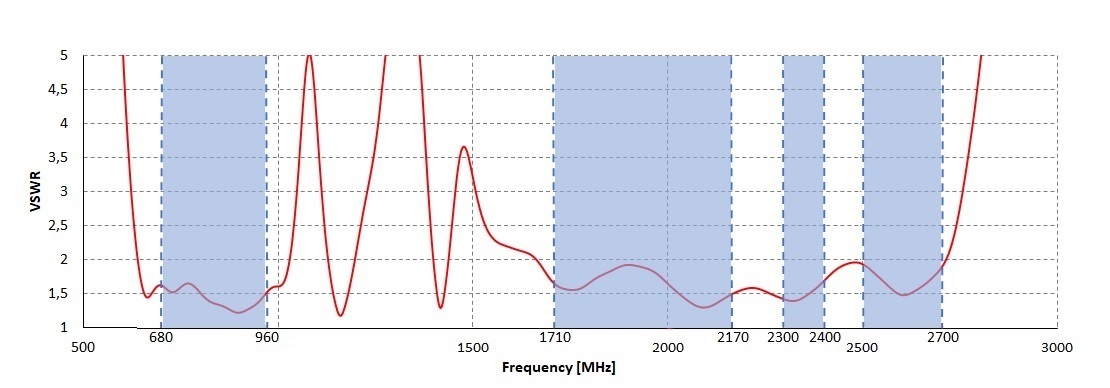

VSWR PORT 2

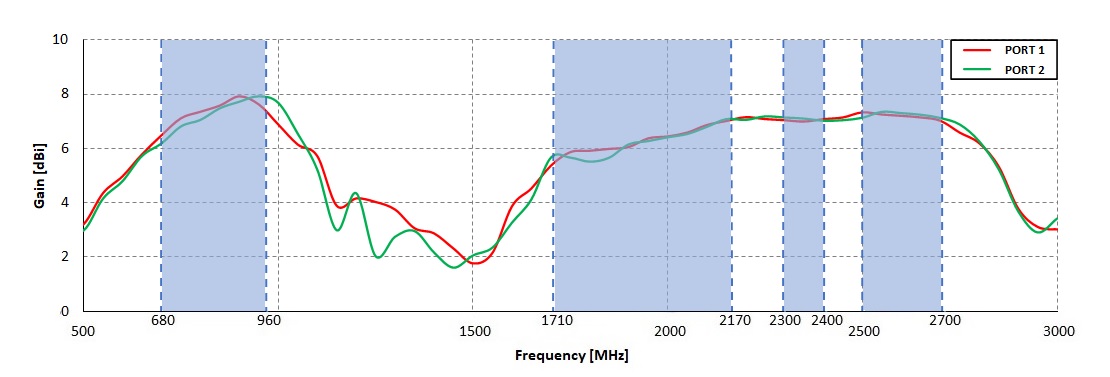

Gain

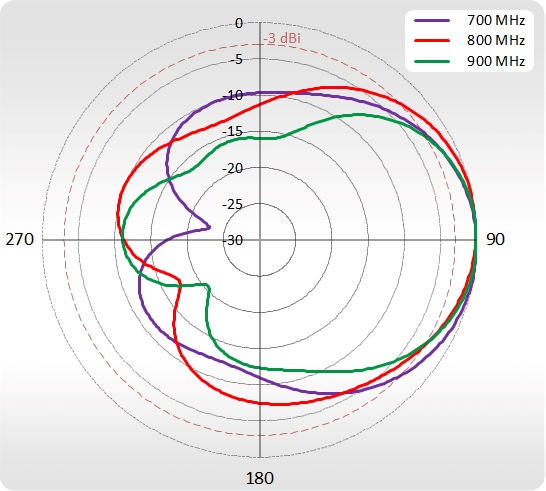

PORT 1 700-900 MHz Azimuth

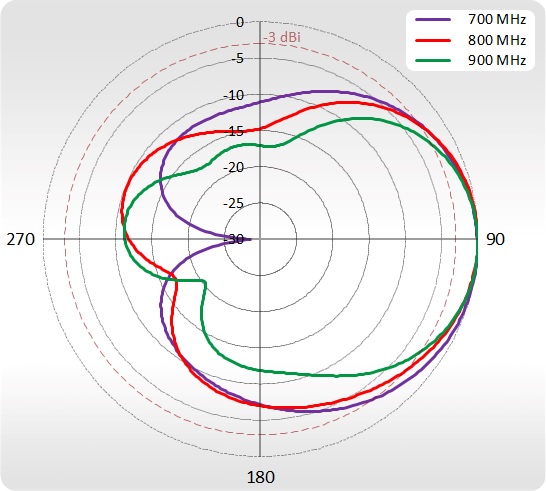

PORT 1 700-900 MHz Elevation

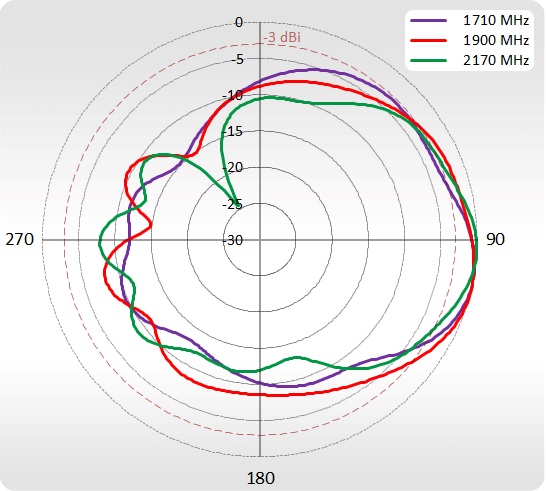

PORT 1 1710-2170 MHz Azimuth

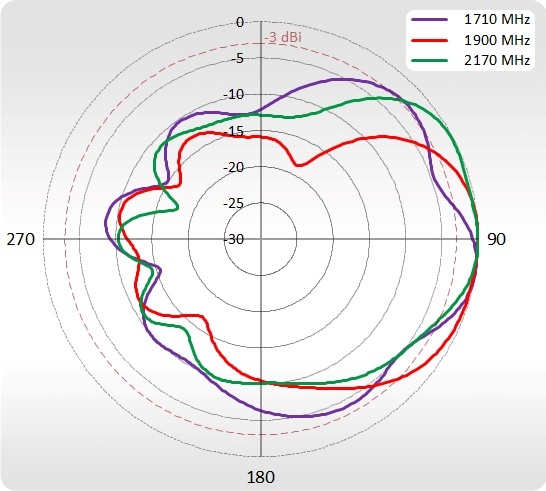

PORT 1 1710-2170 MHz Elevation

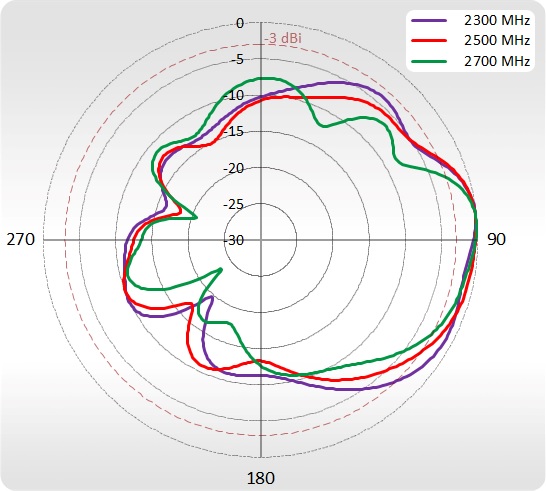

PORT 1 2300-2700 MHz Azimuth

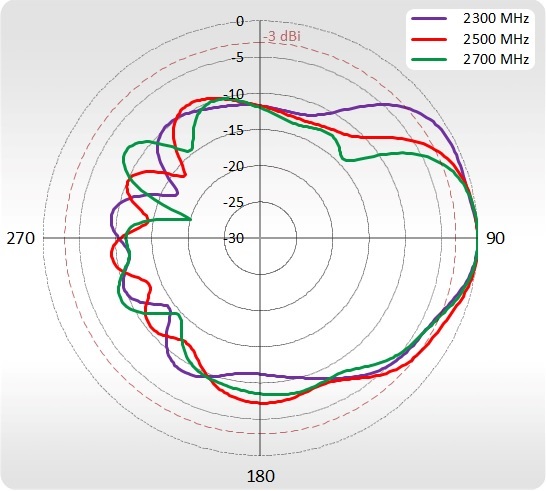

PORT 1 2300-2700 MHz Elevation

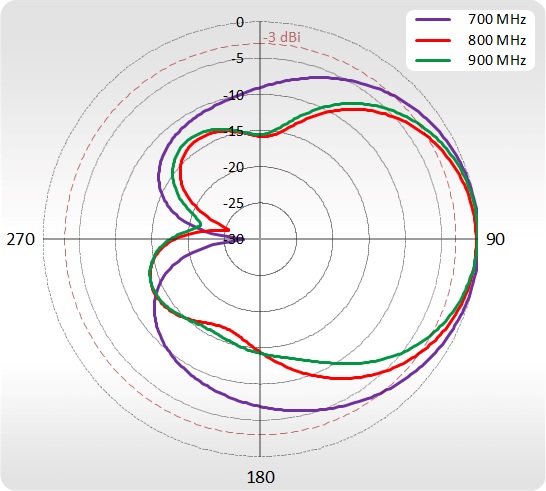

PORT 2 700-900 MHz Azimuth

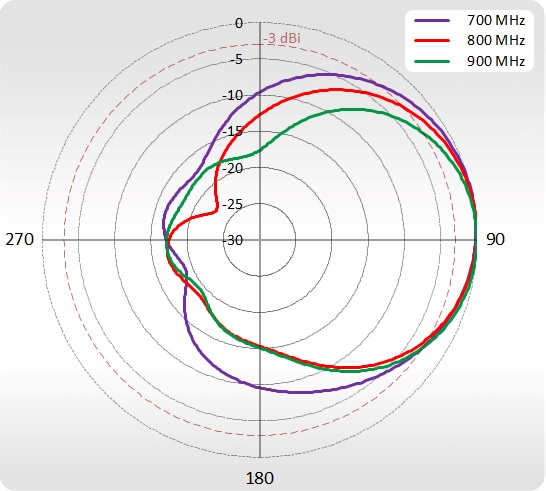

PORT 2 700-900 MHz Elevation

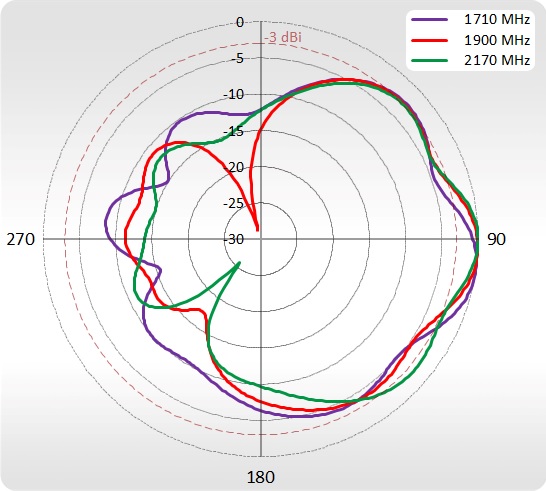

PORT 2 1710-2170 MHz Azimuth

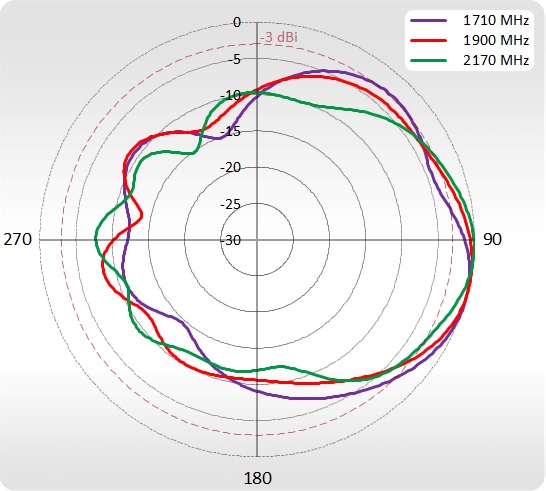

PORT 2 1710-2170 MHz Elevation

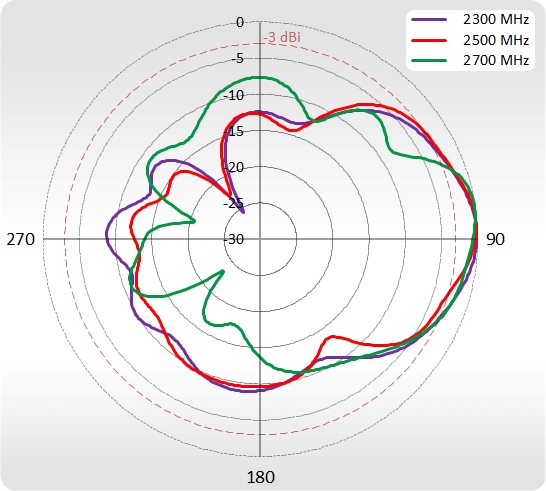

PORT 2 2300-2700 MHz Azimuth

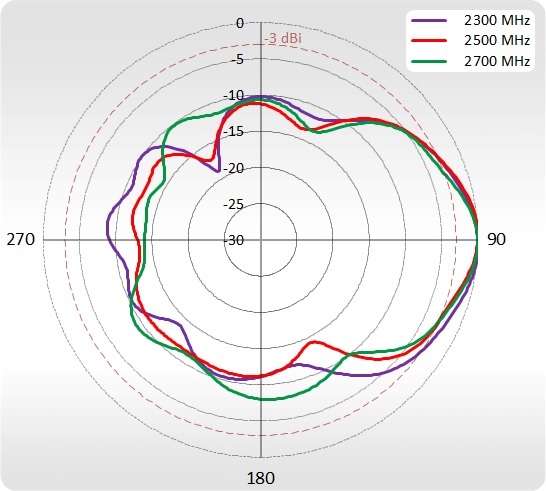

PORT 2 2300-2700 MHz Elevation

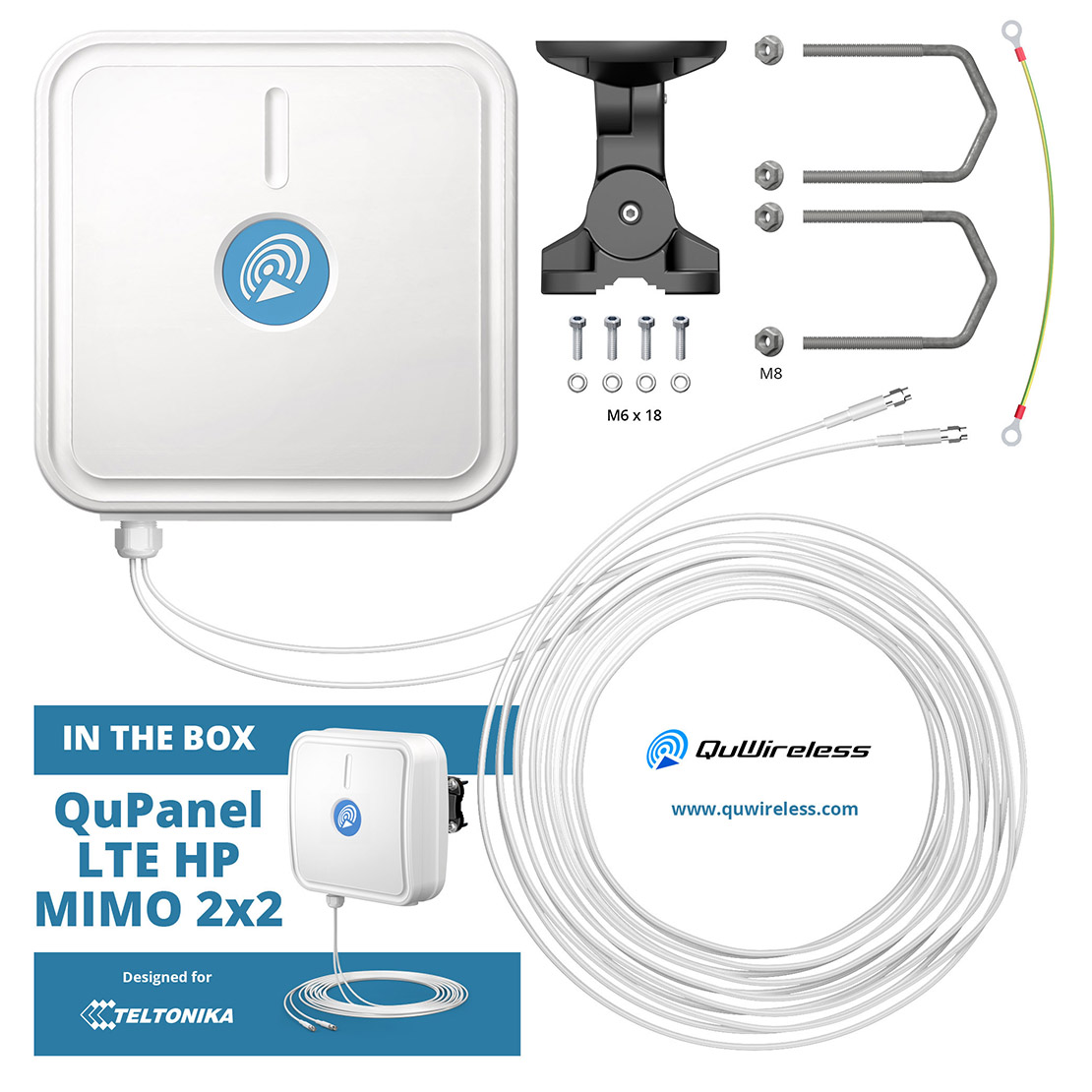

In the box
