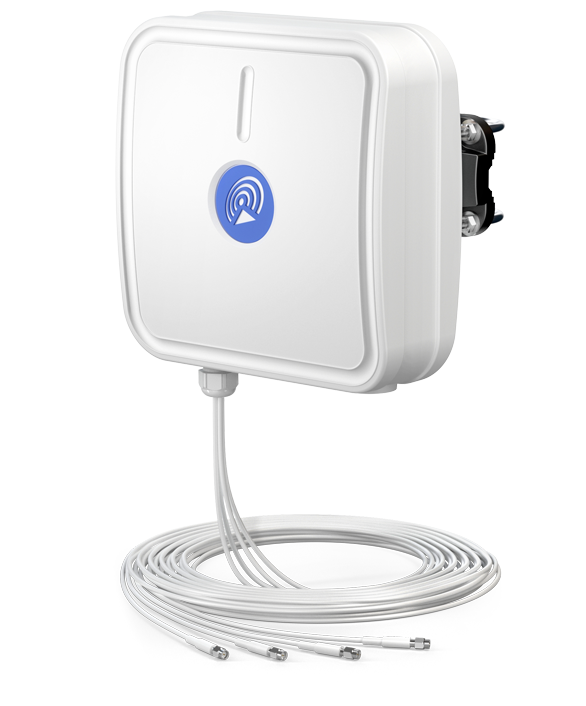

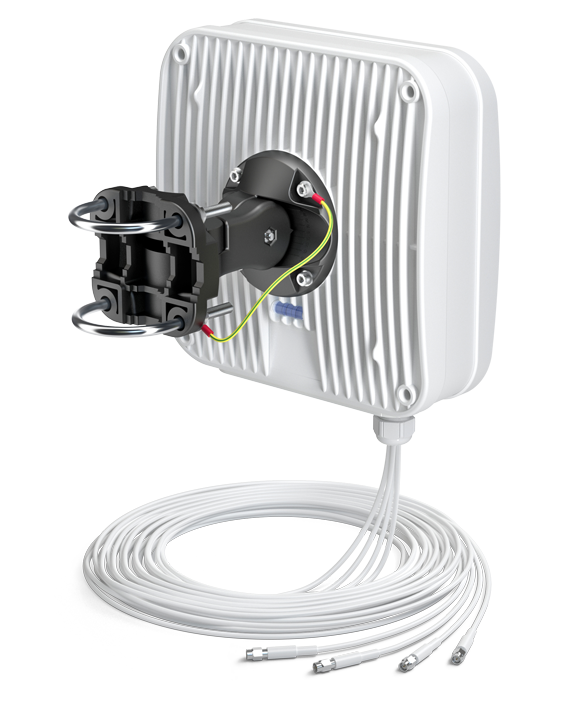

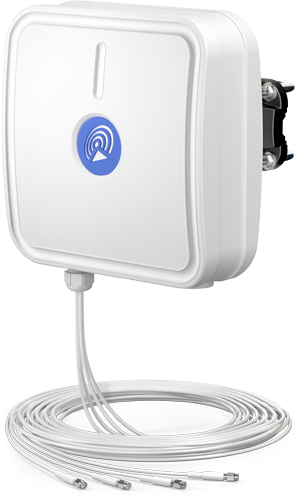

QuPanel LTE MIMO 4x4

5m cable P/N: APLM4 / 10m cable P/N: APLM4-1 / Nf connector P/N: APLM4-N

Directional multiband LTE MIMO 4x4 antenna

QuPanel LTE directional MIMO 4x4 antenna is predicted for 4G LTE high categories from cat 5 up to cat 19. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. That antenna is predicted to be installed on the buildings (on the pole or on the wall). Due to very wide working frequency range, the antenna is universal client for LTE bands like LTE700/800/1800/1900/2100/2300/2600. It’s compatible with all MIMO 4x4 LTE modems and routers working in categories: cat 5, cat 6, cat 7, cat 9, cat 10, cat 11, cat 12, cat 13, cat 15, cat 16, cat 18, cat 19, cat 20.

Datasheet

3D Model

Send Inquiry

LTE ANTENNA SPECIFICATION
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n53, n65, n66, n67, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

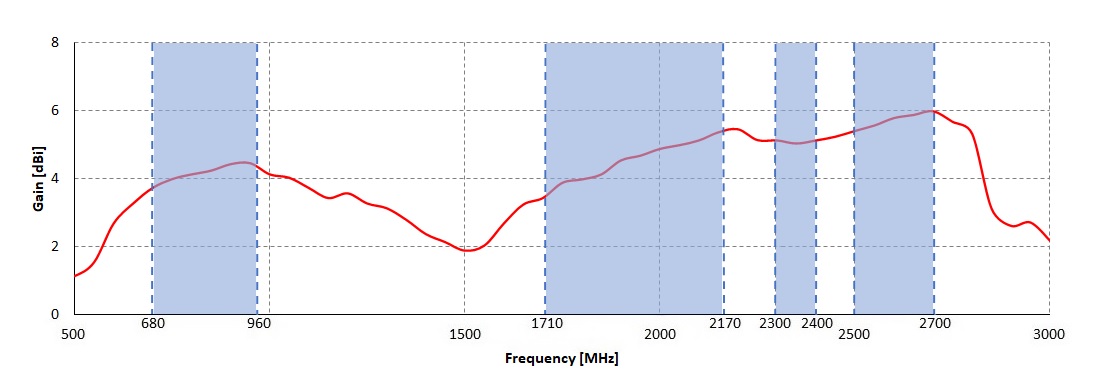

Gain	0.694 - 0.96 GHz : 4 dBi 1.7 - 2.2 GHz : 5 dBi 2.2 - 2.7 GHz : 6 dBi
Front-to-Back	>8 dB

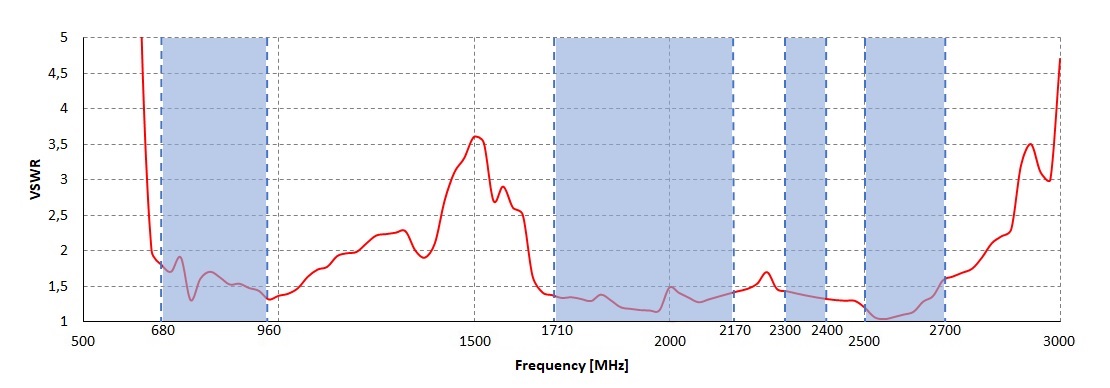

VSWR	<1.30, max <1.80

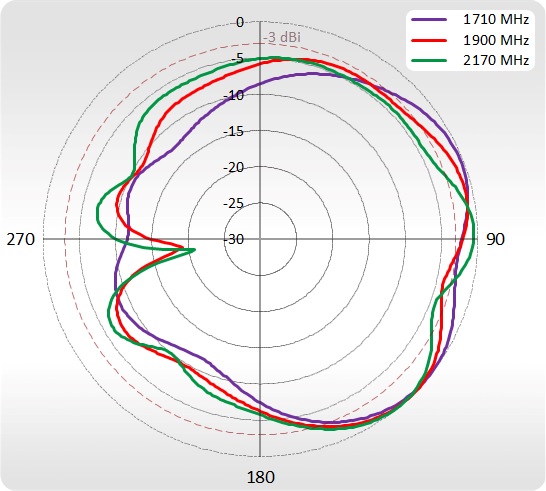

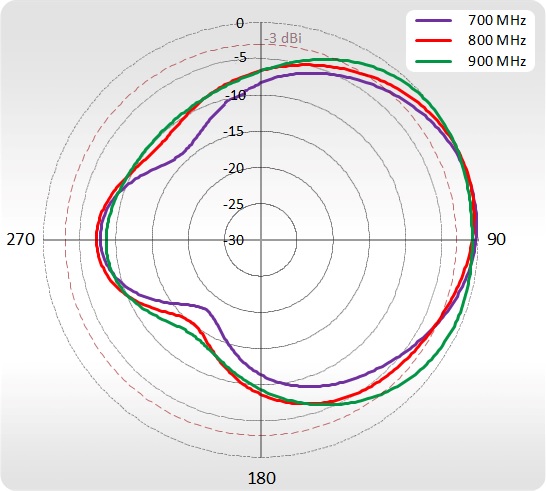

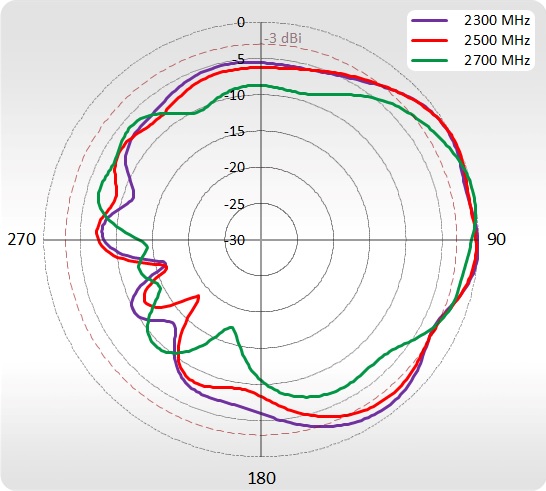

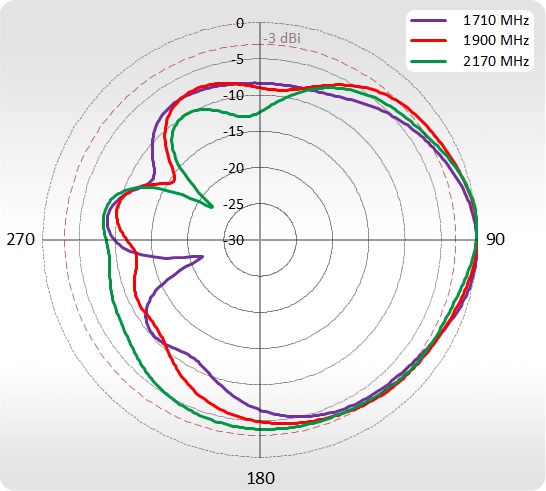

Beamwidth	90°/90° ±30°
Polarization	4x Vertical
Impedance	50 Ω

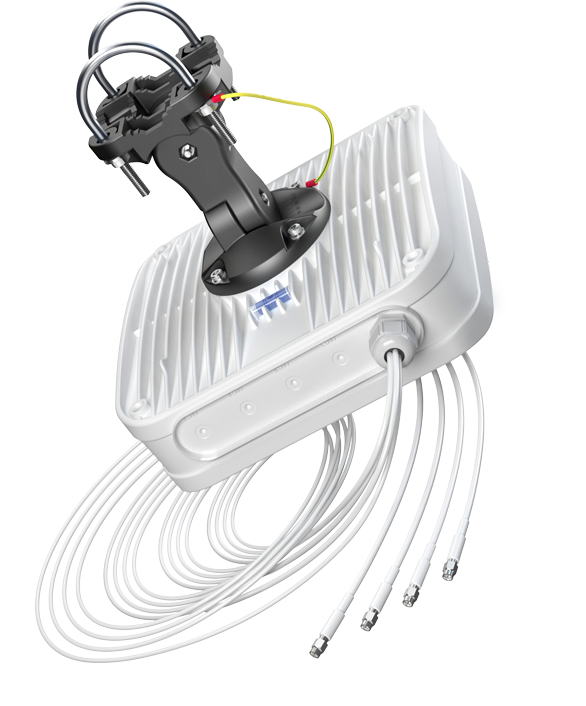

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE, Fiberglass
Ingress protection	IP67
Dimensions	272 x 276 x 96 mm 10.71 x 10.87 x 3.78 inch
Weight	1.8 kg 3.97 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F
Cable length	5m (P/N: APLM4) or 10m (P/N: APLM4-1) or Nf connector (P/N: APLM4-N)
Cable type	LMR195 white

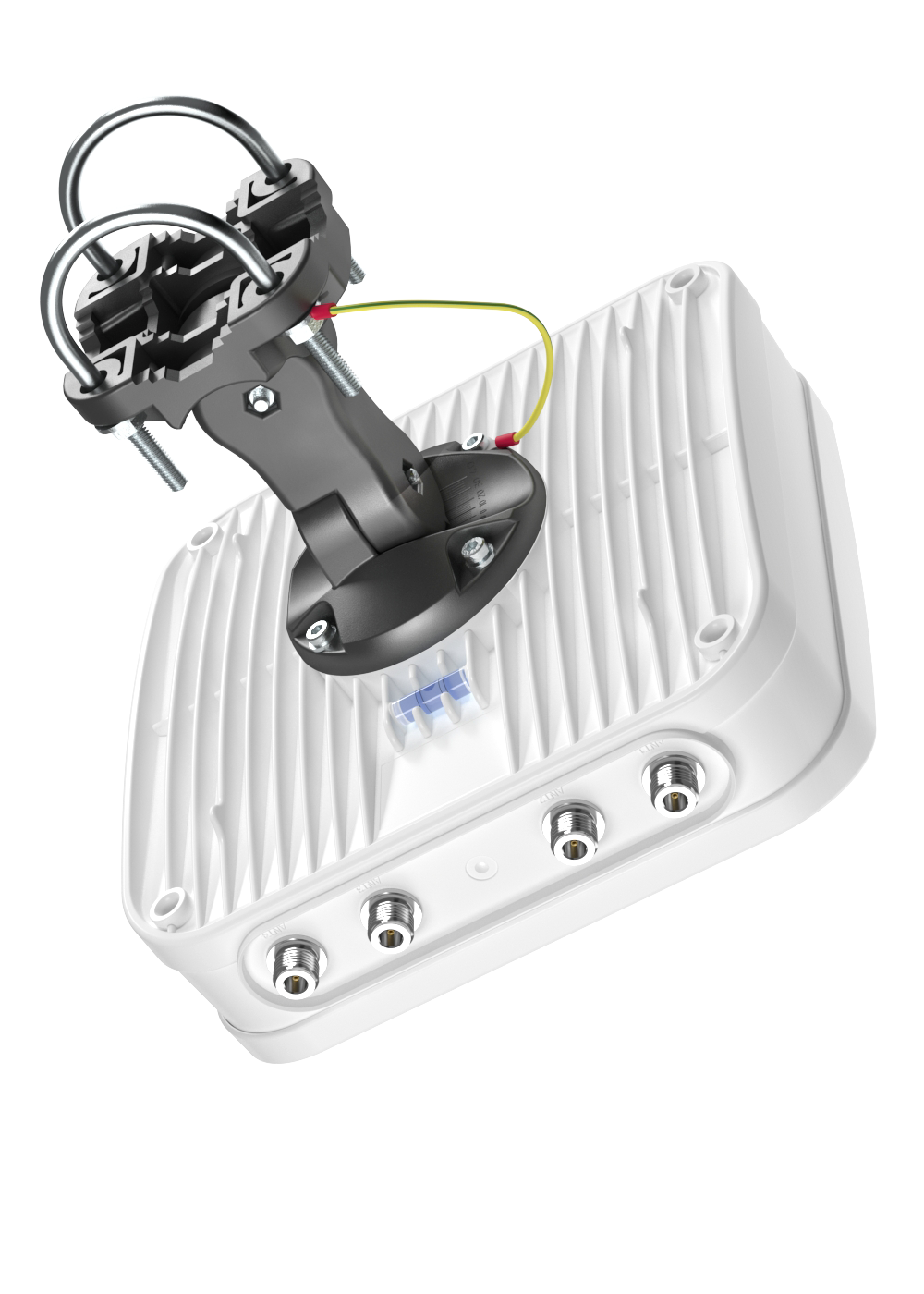

Connector type	4x integrated cables with SMA plug or 4x Nf connectors
