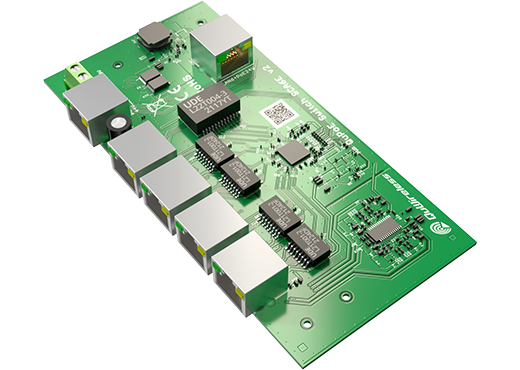

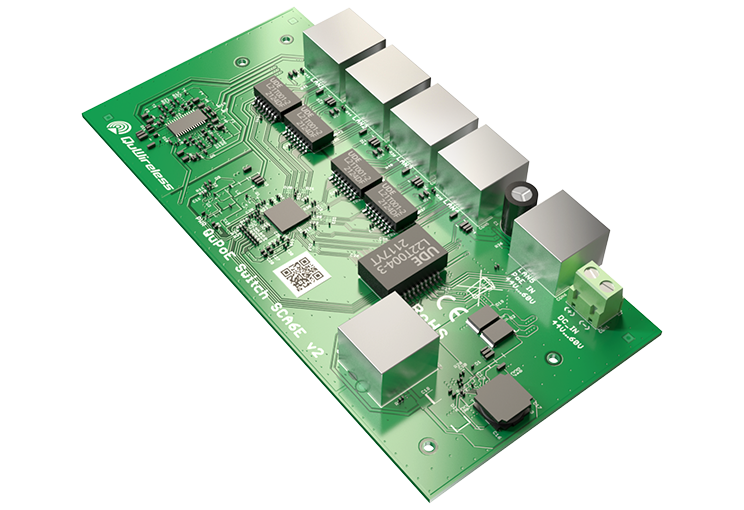

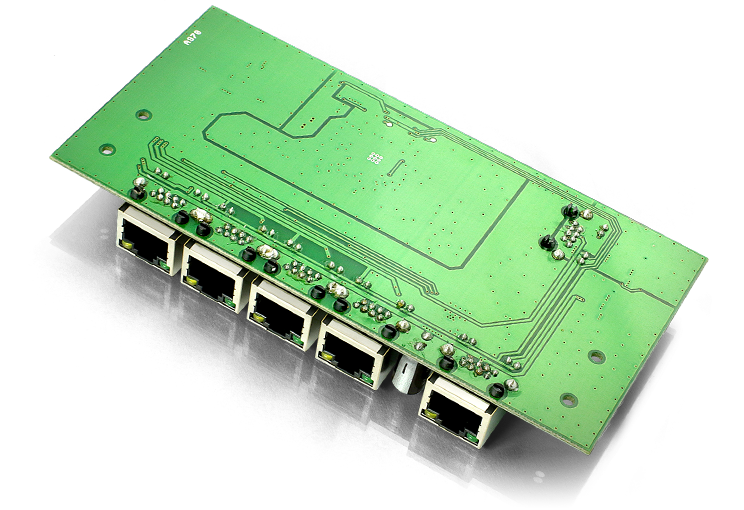

QuPoE Switch SCA6E v2
P/N: SCA6E
PoE switch powered by PoE PSU or typical PSU through high power connector
PoE switch dedicated to power:
1x Teltonika RUT240/RUT360/RUT950/RUT955/RUTX09/RUTX10/RUTX11/RUTX12/RUTX14 and 4x CCTV cameras with active PoE 802.3af/at.
This switch can be powered by two inputs: passive PoE on LAN_5 or by connecting wires directly to terminal block DC_IN. If both are used simultaneously, the source with higher voltage is the one which supply power to device. This can by used to automatically switch to backup power supply when other (with higher voltage) fails. Terminal block is capable to deliver 130W to powered devices, which is not possible through PoE due limited maximum current of Ethernet cables.
1x Teltonika RUT240/RUT360/RUT950/RUT955/RUTX09/RUTX10/RUTX11/RUTX12/RUTX14 and 4x CCTV cameras with active PoE 802.3af/at.
This switch can be powered by two inputs: passive PoE on LAN_5 or by connecting wires directly to terminal block DC_IN. If both are used simultaneously, the source with higher voltage is the one which supply power to device. This can by used to automatically switch to backup power supply when other (with higher voltage) fails. Terminal block is capable to deliver 130W to powered devices, which is not possible through PoE due limited maximum current of Ethernet cables.

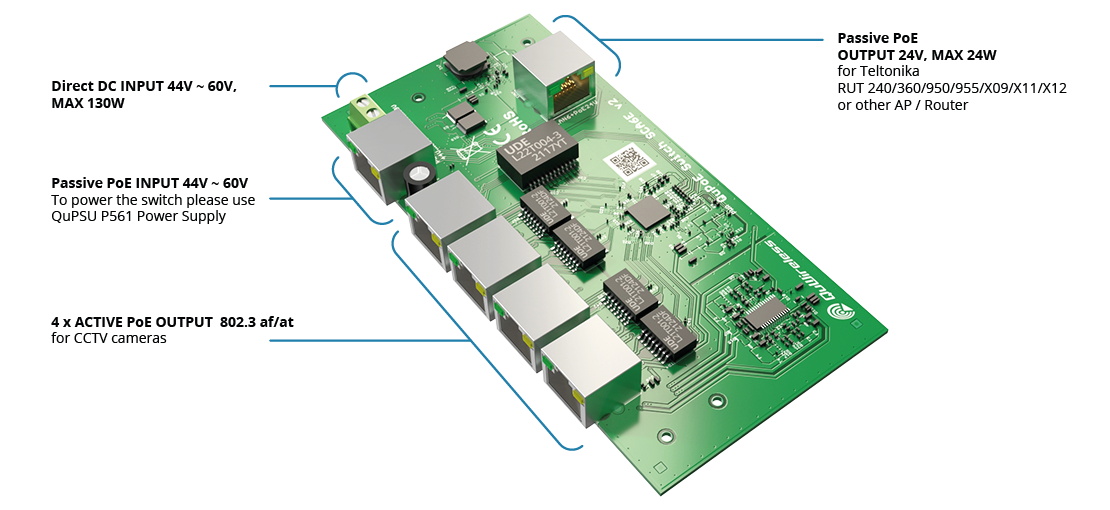

1x Passive PoE input 44-60V to power the switch*
1x Terminal block input 44-60V for alternative powering
1x Passive PoE output 24V up to 24W for Router/AP
4x Active PoE 802.3af/at to power up to 4x CCTV cameras
*Please use QuPSU P561 Passive PoE Power Supply to power the switch (QuPSU P561 is offered separately).
1x Terminal block input 44-60V for alternative powering
1x Passive PoE output 24V up to 24W for Router/AP
4x Active PoE 802.3af/at to power up to 4x CCTV cameras
*Please use QuPSU P561 Passive PoE Power Supply to power the switch (QuPSU P561 is offered separately).
| SPECIFICATION | |
|---|---|
| LAN Ports | 6x RJ45 10/100Mbps |
| Power Input | 1x 2-way terminal block 44-60V / max. 130W (DC_IN) |
| PoE Input | 1x Passive PoE input 44-60V (LAN_5) |
| PoE Output | 4x Active PoE 802.3af/at (LAN_1-4) 1x Passive PoE output 24V/24W (LAN_6) |
| PoE Output protection | LAN_1-4: 0.75A, LAN_5: 1.25A (separate resettable fuses) |
| Passive PoE mode | mode B (4,5+) (7,8-) |
| LEDs | 1x Power on (white, on board), 6x Link (orange, on port), 6x Transmit (green, on port) |
| Operating temperature | -10°C … +40°C |
| Installation | 4x holes ⌀2.5mm |
| Dimensions | 73mm x 145mm x 17mm (WxLxH) |
| Weight | 75g |
