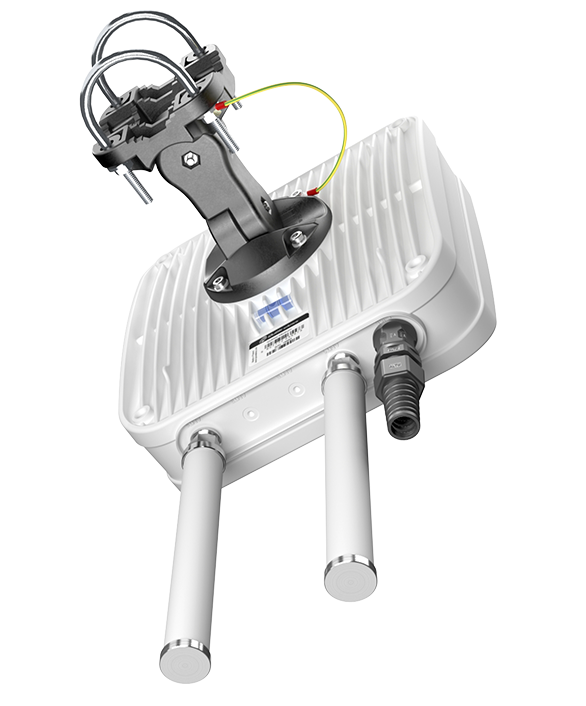

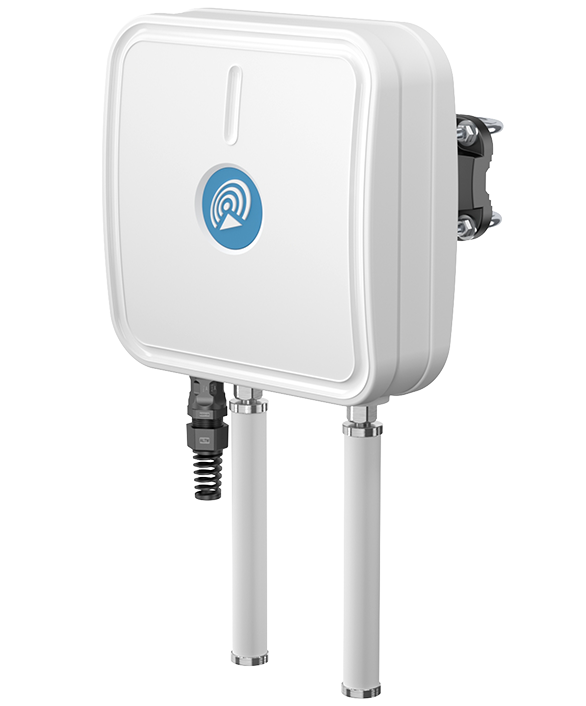

QuMax for Teltonika RUTX11

P/N: AX11M

Integrated outdoor LTE high power directional antenna + outdoor Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth antenna + GPS antenna + place to install Teltonika RUTX11 (All-in-one)

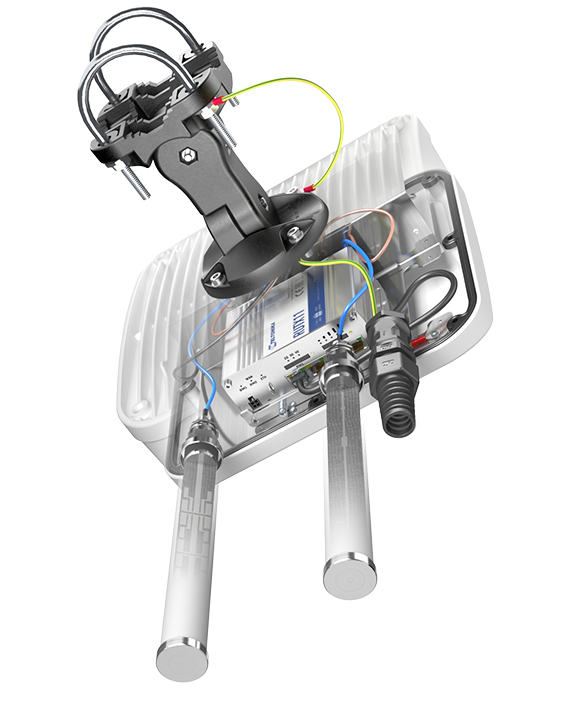

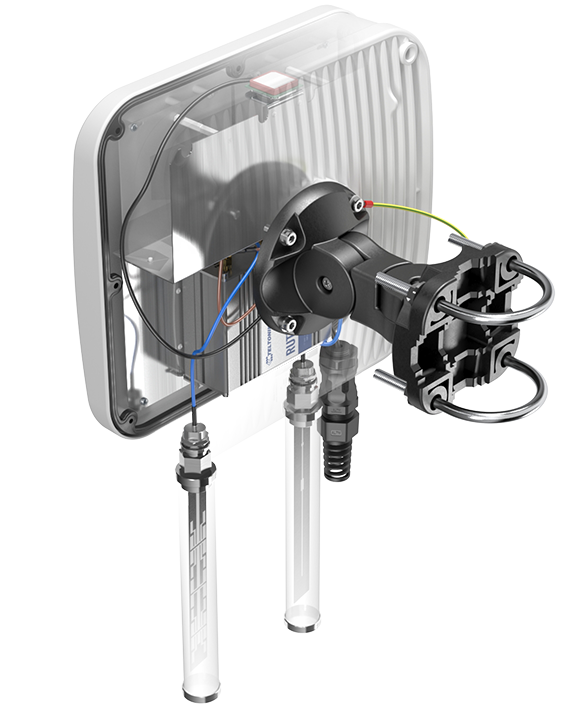

QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTX11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It also has embedded GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 & 5 GHz omni antennas.
  • All antennas and Teltonika router integrated in one enclosure
  • Outdoor antenna works in any weather conditions, IP67
  • Antenna perfectly matched with the router
  • Passive PoE support
  • Easy to install
  • Dual SIM with auto Failover
LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n53, n65, n66, n67, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain 0.694 - 0.96 GHz : 4 dBi
1.7 - 2.2 GHz : 5 dBi
2.2 - 2.7 GHz : 6 dBi
Front-to-Back >8 dB
VSWR <1.30, max <1.80
Beamwidth 90°/90° ±30°
Polarization Vertical
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
4.70 - 6.00 GHz
Gain 2.40 - 2.50 GHz : 6 dBi
4.70 - 6.00 GHz : 7 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
BLUETOOTH ANTENNA SPECIFICATION
Frequency 2.30 - 2.60 GHz
Gain 3 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45 + 2xNf + 2xNm in external omni wi-fi antenna
Ingress protection IP67
Dimensions 272 x 276 x 96 mm
10.71 x 10.87 x 3.78 inch
Weight 1.8 kg
3.97 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
DEVICE SPECIFICATION (NOT INCLUDED)

Most powerful and feature rich device within Teltonika Networking products range. Equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications.

RUTX11 Datasheet
RUTX11 User Manual
RUTX11 Quick Start Guide
Frequency bands
LTE / 4G
GSM
617 MHz 5 8 12 13 14 17 18 19 20 26 27 28 29 44 67 68 85 103 106 n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n81 n82 n83 n85 n89 n100 960 MHz
LTE / 4G
UMTS
1710 MHz 1 2 3 4 9 10 25 33 34 35 36 37 39 n1 n2 n3 n25 n34 n39 n80 n84 n86 n95 n98 n101 2170 MHz
LTE / 4G
WCS
DARS
2300 MHz 30 40 n30 n40 n97 2400 MHz
LTE / 4G
2400 MHz 7 38 41 53 69 n7 n38 n41 n53 n90 2700 MHz
VSWR for LTE antenna
VSWR for Wi-Fi antenna
Gain for LTE antenna
Gain for Wi-Fi antenna
700-900 MHz Azimuth
700-900 MHz Elevation
1710-2170 MHz Azimuth
1710-2170 MHz Elevation
2300-2700 MHz Azimuth
2300-2700 MHz Elevation
Wi-Fi Azimuth
Wi-Fi Elevation

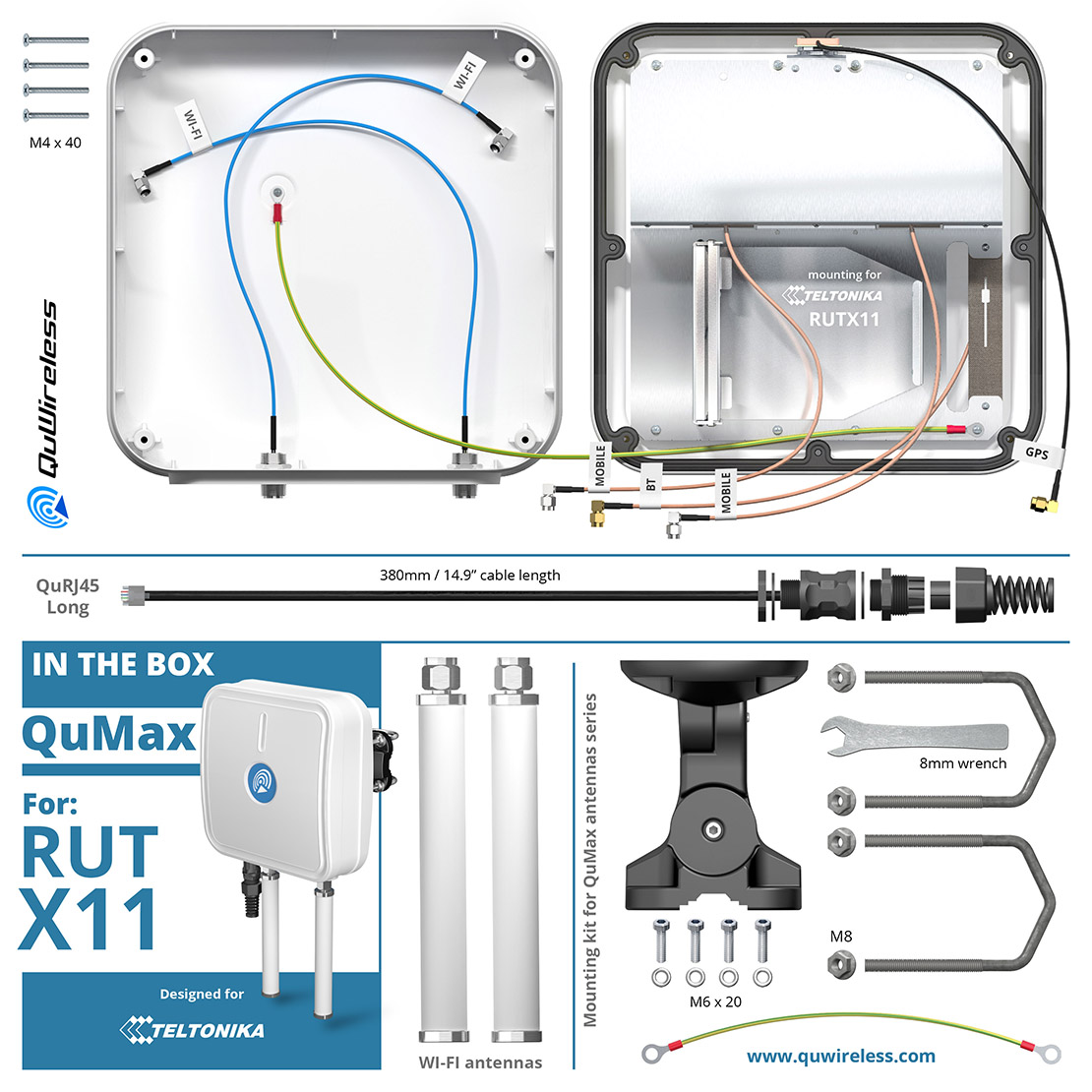

In the box
Router mounting adapter manual
Use cases
Solution where RUTX11 is being used
