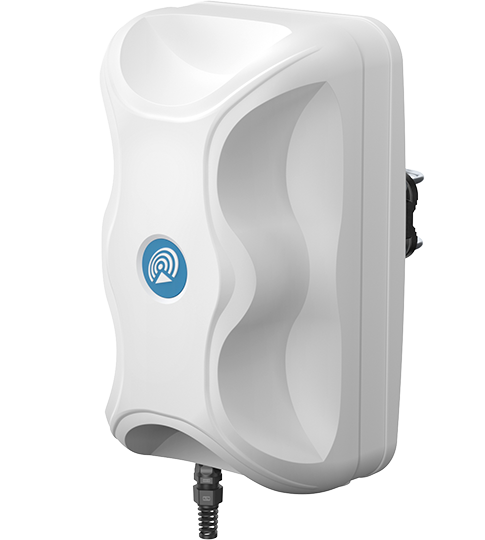

QuMax for Teltonika RUTX50

P/N: AX50M

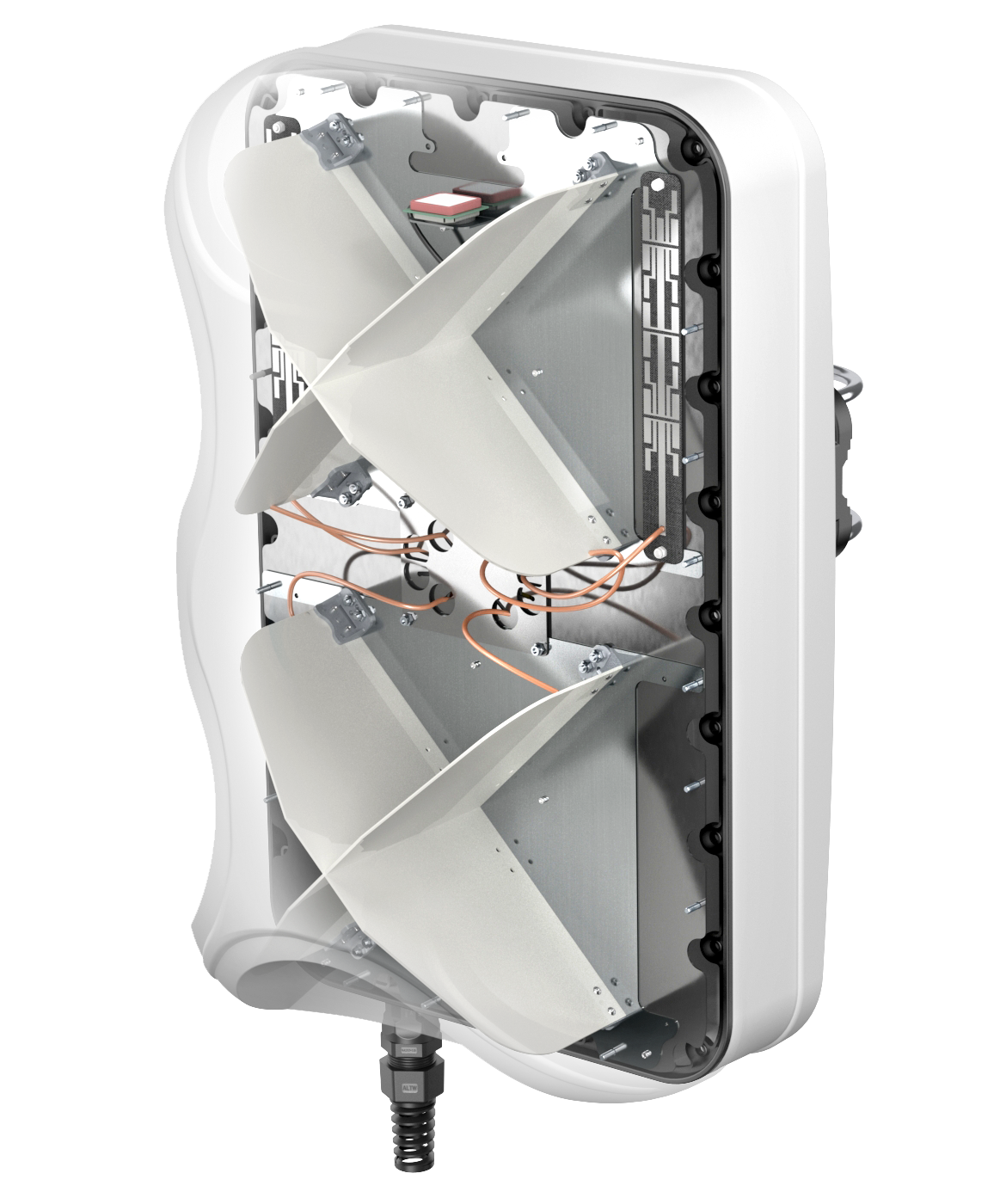

Integrated multi-band LTE & 5G panel antenna + Wi-Fi omni antenna + GPS + place to install Teltonika RUTX50 (All-in-one)

QuMax for RUTX50 is a high-performance directional antenna designed for use in a variety of wireless communication applications. This all-in one product consists of multi-band 5G, Wi-Fi and GPS antennas integrated in IP67 enclosure. It offers 7.5dBi gain and wide beamwidth, which makes it suitable for use in both urban and rural environments.

Combining QuMax with RUTX50 inside the antenna housing gives you complete, outdoor solution with mulitple use scenatios, such as transportation, public, energy, mining, IoT and more.

  • Outdoor antenna works in any weather conditions, IP67
  • Antenna perfectly matched with the router
  • Passive PoE support
  • Easy to install
LTE ANTENNA SPECIFICATION
Frequency 0.617 - 0.96 GHz
1.7 - 2.7 GHz
3.3 - 6.0 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain 0.617 - 0.96 GHz : 6 dBi
1.7 - 2.7 GHz : 7 dBi
3.3 - 4.6 GHz : 7 dBi
4.7 - 6.0 GHz : 5.5 dBi
VSWR <2.00, max <3.00
Beamwidth 80°/80° ±15°
Polarization X (±45°)
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
5.000 - 7.125 GHz
Gain 2.40 - 2.50 GHz : 6 dBi
5.000 - 7.125GHz : 7.5 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45
Ingress protection IP67
Dimensions 486 x 292.2 x 210 mm
19.13 x 11.50 x 8.27 inch
Weight 2.8 kg
6.17 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
DEVICE SPECIFICATION (NOT INCLUDED)

RUTX50 is a robust industrial 5G router equipped with 5x Gigabit Ethernet ports, WiFi, Dual-SIM, GPS, a powerful CPU and RutOS software for advanced networking solutions.

RUTX50 Datasheet
RUTX50 User Manual
RUTX50 Quick Start Guide
Frequency bands
LTE / 4G
GSM
617 MHz 5 8 12 13 14 17 18 19 20 26 27 28 29 44 67 68 71 85 103 106 n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n71 n81 n82 n83 n85 n89 n100 960 MHz
LTE / 4G
UMTS
1710 MHz 1 2 3 4 9 10 25 33 34 35 36 37 39 n1 n2 n3 n25 n34 n39 n80 n84 n86 n95 n98 n101 2170 MHz
LTE / 4G
WCS
DARS
2300 MHz 30 40 n30 n40 n97 2400 MHz
LTE / 4G
2400 MHz 7 38 41 53 69 n7 n38 n41 n53 n90 2700 MHz
LTE / 5G
3300 MHz 22 42 43 48 49 52 n48 n78 3800 MHz
PORT 1&3 650 - 950 MHz LTE Azimuth
PORT 1&3 650 - 950 MHz LTE Elevation
PORT 1&3 1710 - 2170 MHz LTE Azimuth
PORT 1&3 1710 - 2170 MHz LTE Elevation
PORT 1&3 2300 - 2700 MHz LTE Azimuth
PORT 1&3 2300 - 2700 MHz LTE Elevation
PORT 1&3 3300 - 3800 MHz LTE Azimuth
PORT 1&3 3300 - 3800 MHz LTE Elevation
PORT 1&3 4200 - 4600 MHz LTE Azimuth
PORT 1&3 4200 - 4600 MHz LTE Elevation
PORT 1&3 5000 - 5900 MHz LTE Azimuth
PORT 1&3 5000 - 5900 MHz LTE Elevation
PORT 2&4 650 - 950 MHz LTE Azimuth
PORT 2&4 650 - 950 MHz LTE Elevation
PORT 2&4 1710 - 2170 MHz LTE Azimuth
PORT 2&4 1710 - 2170 MHz LTE Elevation
PORT 2&4 2300 - 2700 MHz LTE Azimuth
PORT 2&4 2300 - 2700 MHz LTE Elevation
PORT 2&4 3300 - 3800 MHz LTE Azimuth
PORT 2&4 3300 - 3800 MHz LTE Elevation
PORT 2&4 4200 - 4600 MHz LTE Azimuth
PORT 2&4 4200 - 4600 MHz LTE Elevation
PORT 2&4 5000 - 5900 MHz LTE Azimuth
PORT 2&4 5000 - 5900 MHz LTE Elevation
2400 - 5700 MHz Wi-Fi Azimuth
2400 - 5700 MHz Wi-Fi Elevation
