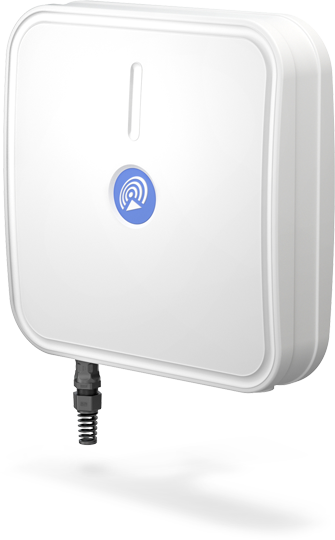

QuMax XR All In

P/N: AXRA

Integrated outdoor multi band eXtra Range LTE directional antenna + Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth antenna + GPS antenna + place to install Teltonika RUT200/240/241/901/950/951/955/956/X09/X11 (All-in-one)

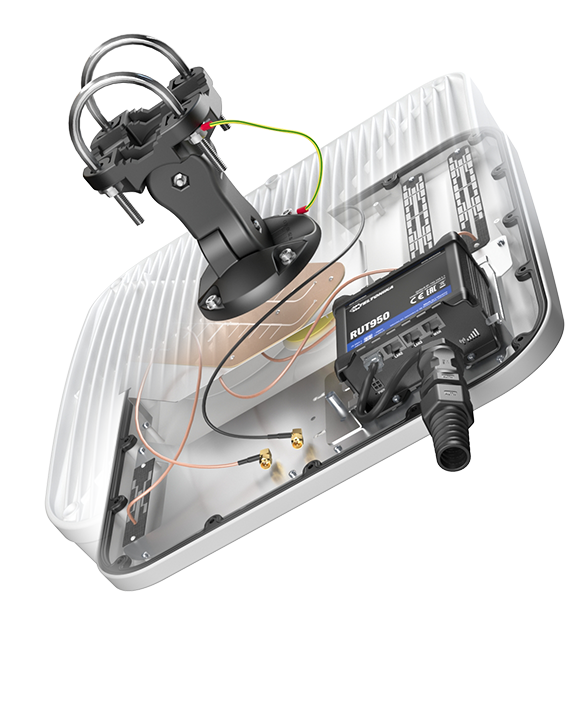

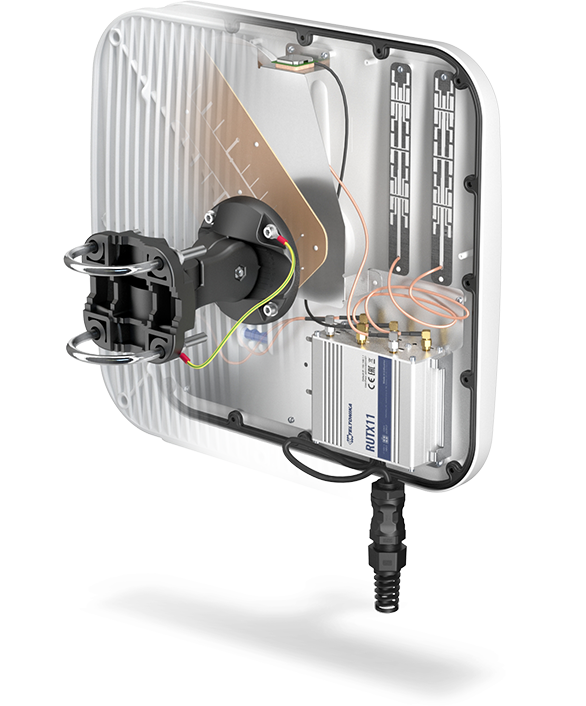

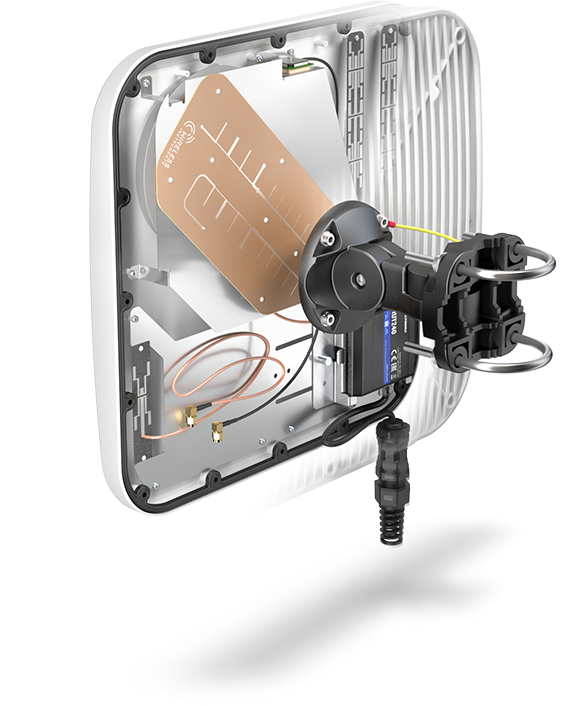

QuMAX eXtra Range All In offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. It is designed to have Teltonika RUT200/240/241/901/950/951/955/956/X09/X11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment.
  • Outdoor antenna works in any weather conditions, IP67
  • Antenna perfectly matched with the router
  • Passive PoE support
  • Easy to install
LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n53, n65, n66, n67, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain 0.694 - 0.96 GHz : 7 dBi
1.7 - 2.2 GHz : 7 dBi
2.2 - 2.7 GHz : 7 dBi
Front-to-Back >10 dB
VSWR <1.70, max <2.00
Beamwidth 70°/70° ±15°
Polarization Dual polarized X-Pol
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
4.70 - 6.00 GHz
Gain 2.40 - 2.50 GHz : 6 dBi
4.70 - 6.00 GHz : 7 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
BLUETOOTH ANTENNA SPECIFICATION
Frequency 2.30 - 2.60 GHz
Gain 3 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45
Ingress protection IP67
Dimensions 392 x 392 x 99 mm
15.43 x 15.43 x 3.90 inch
Weight 3.7 kg
8.16 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
Frequency bands
LTE / 4G
GSM
617 MHz 5 8 12 13 14 17 18 19 20 26 27 28 29 44 67 68 85 103 106 n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n81 n82 n83 n85 n89 n100 960 MHz
LTE / 4G
UMTS
1710 MHz 1 2 3 4 9 10 25 33 34 35 36 37 39 n1 n2 n3 n25 n34 n39 n80 n84 n86 n95 n98 n101 2170 MHz
LTE / 4G
WCS
DARS
2300 MHz 30 40 n30 n40 n97 2400 MHz
LTE / 4G
2400 MHz 7 38 41 53 69 n7 n38 n41 n53 n90 2700 MHz

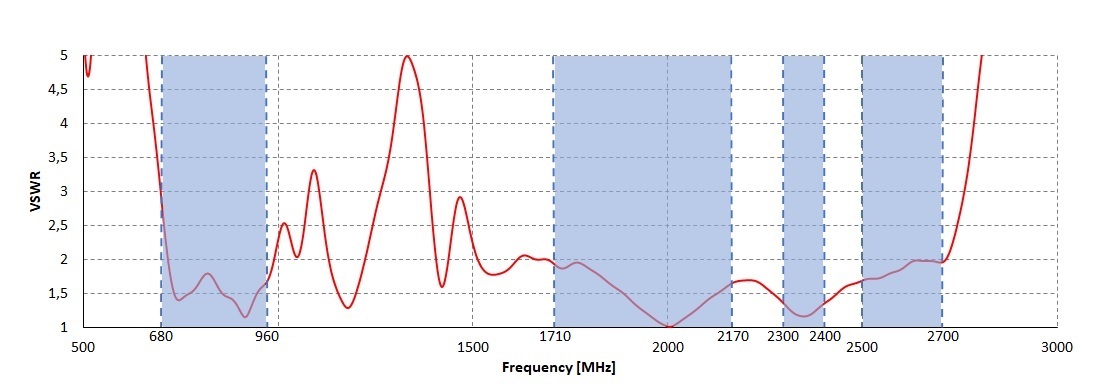

VSWR for LTE antenna PORT 1

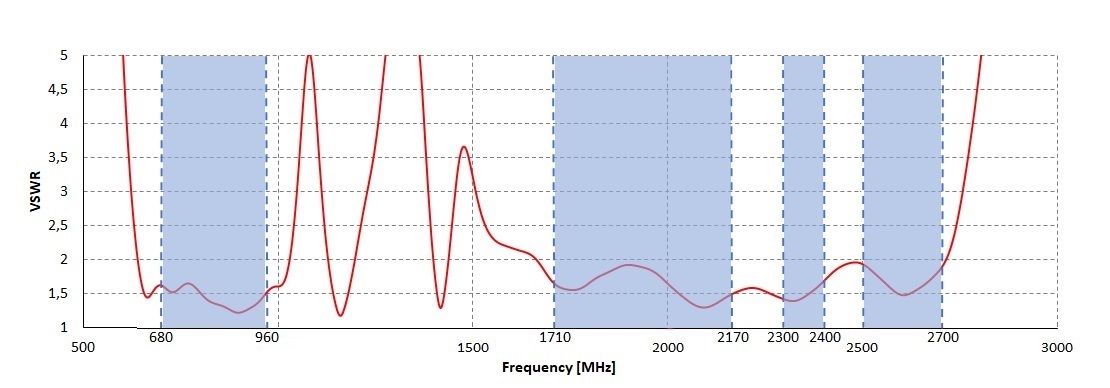

VSWR for LTE antenna PORT 2

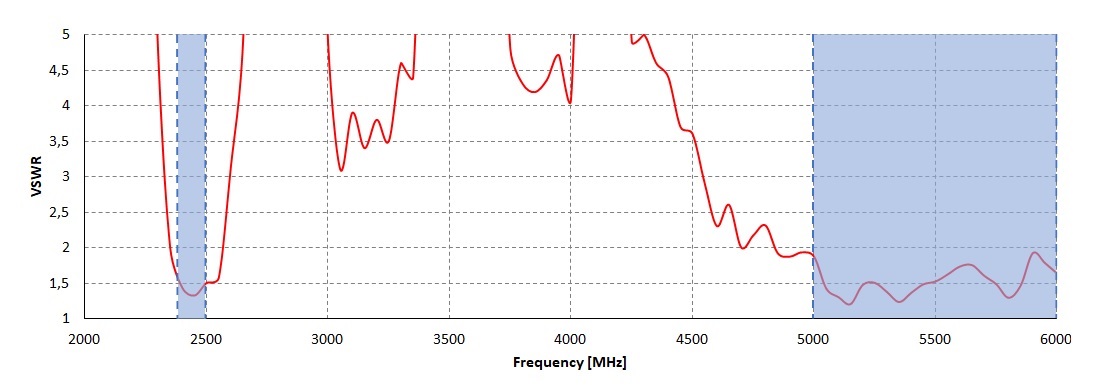

VSWR for Wi-Fi antenna

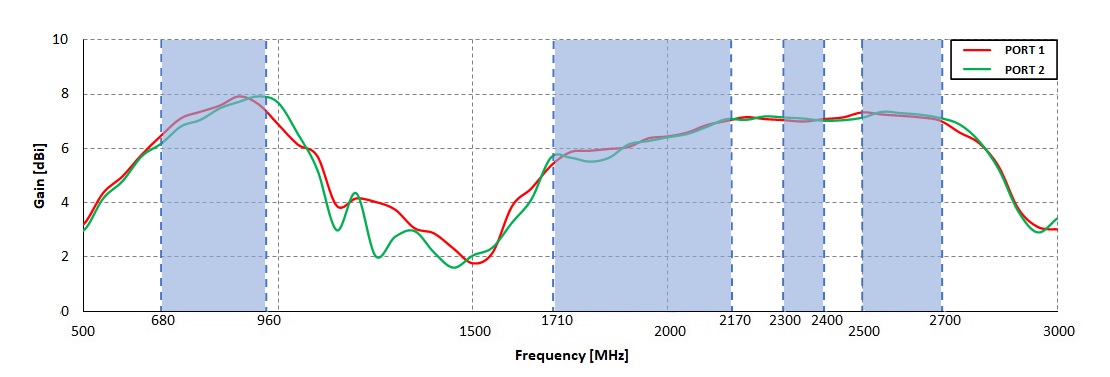

Gain for LTE antenna

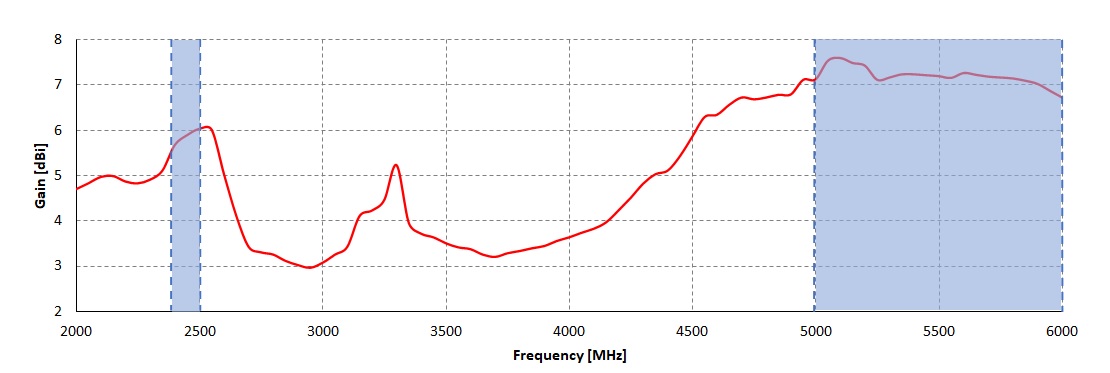

Gain for Wi-Fi antenna

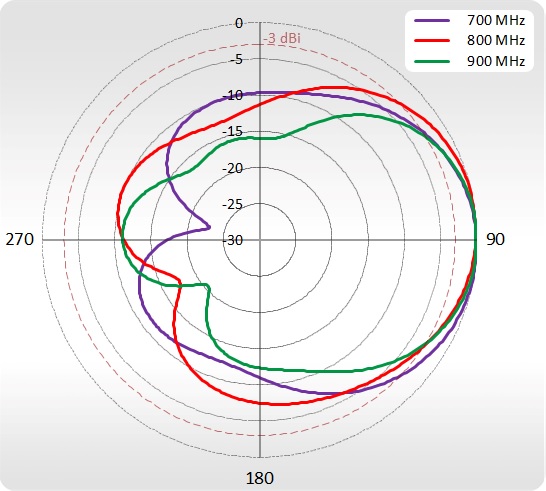

PORT 1 700-900 MHz Azimuth

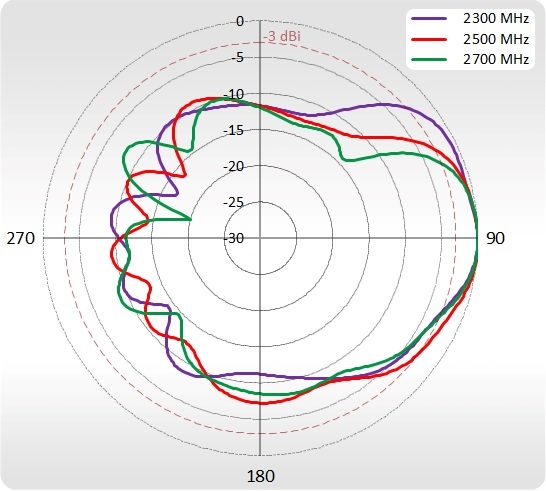

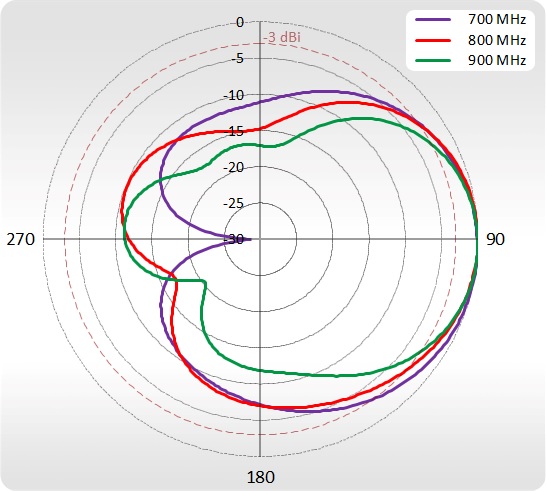

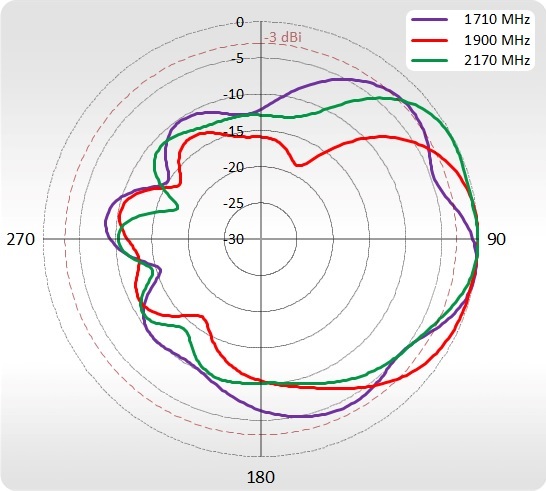

PORT 1 700-900 MHz Elevation

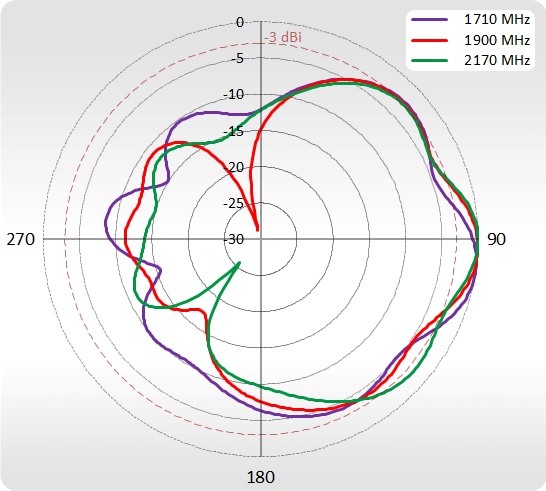

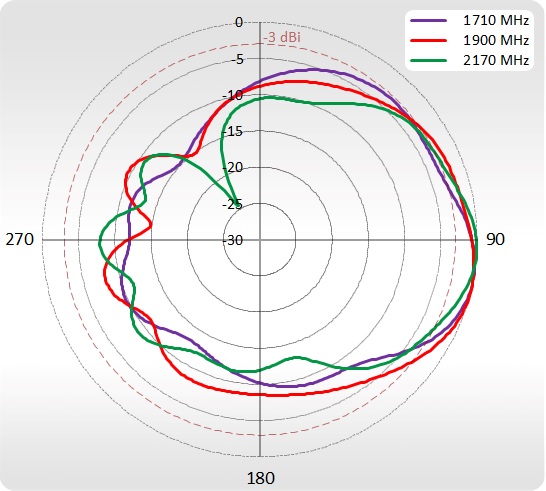

PORT 1 1710-2170 MHz Azimuth
PORT 1 1710-2170 MHz Elevation

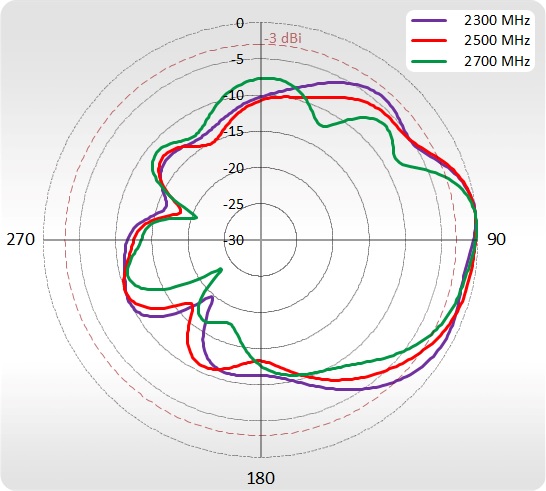

PORT 1 2300-2700 MHz Azimuth
PORT 1 2300-2700 MHz Elevation

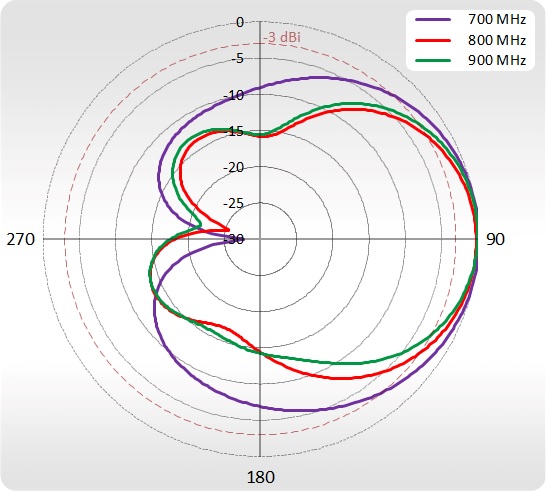

PORT 2 700-900 MHz Azimuth

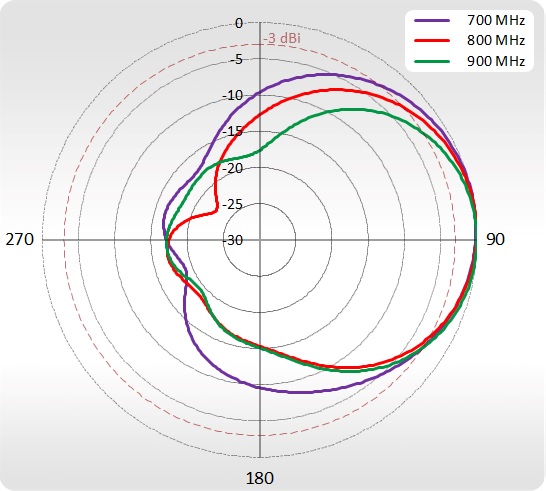

PORT 2 700-900 MHz Elevation
PORT 2 1710-2170 MHz Azimuth

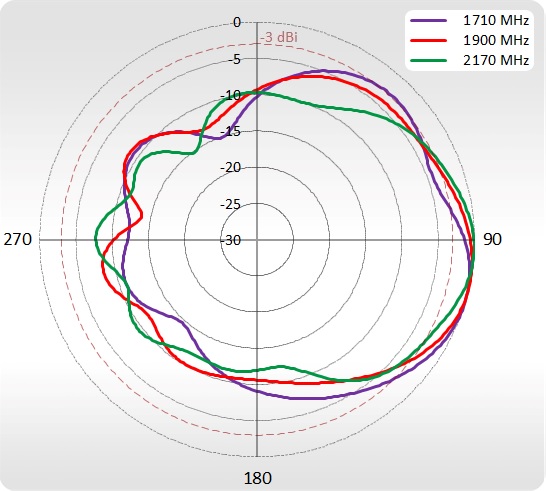

PORT 2 1710-2170 MHz Elevation

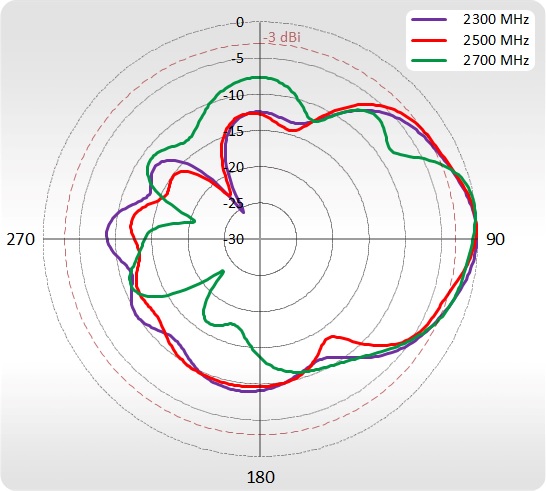

PORT 2 2300-2700 MHz Azimuth

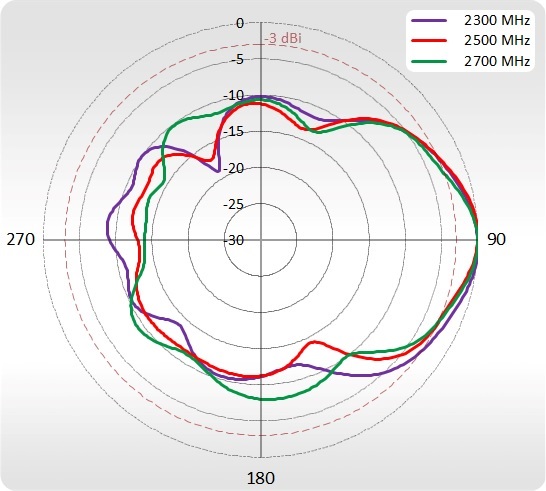

PORT 2 2300-2700 MHz Elevation

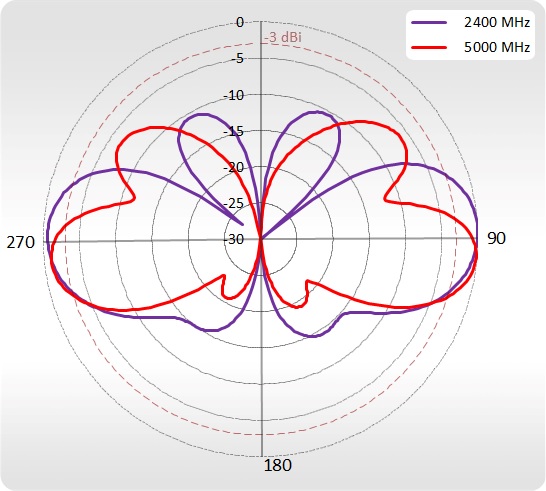

Wi-Fi Azimuth

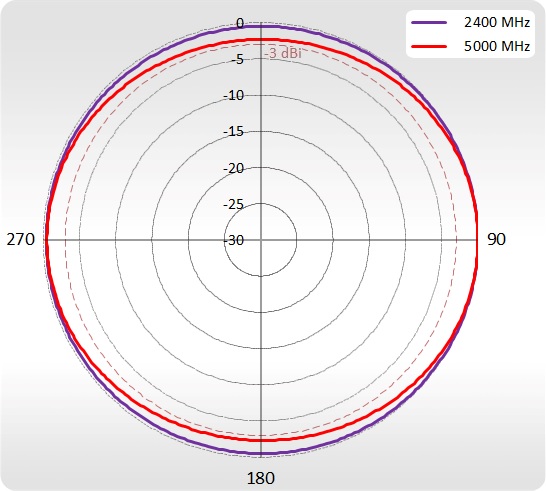

Wi-Fi Elevation

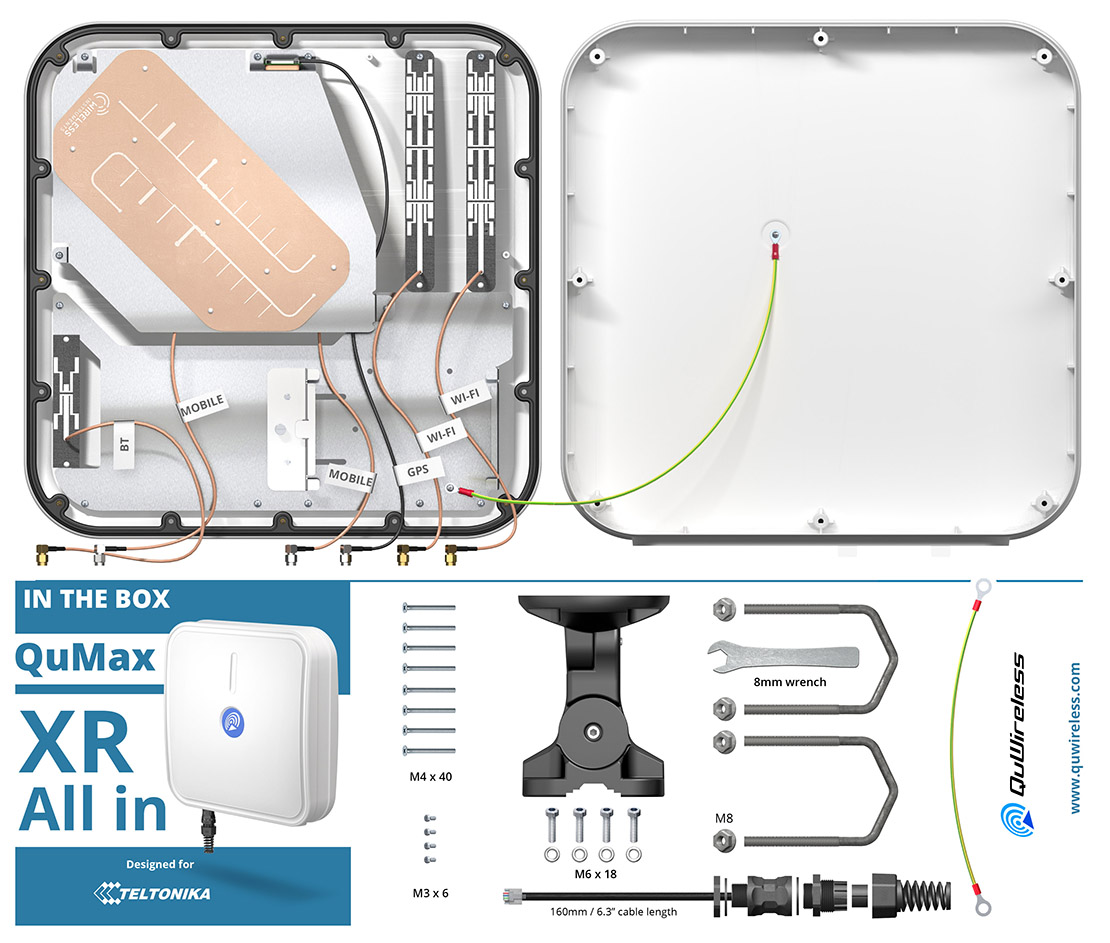

In the box
