QuMax XR LTE for RUT240/950/955/X09/X11

P/N: AXRL

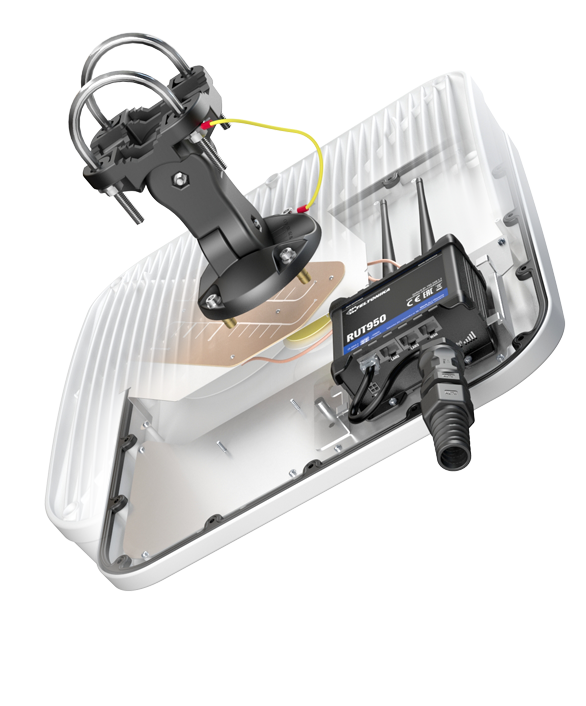

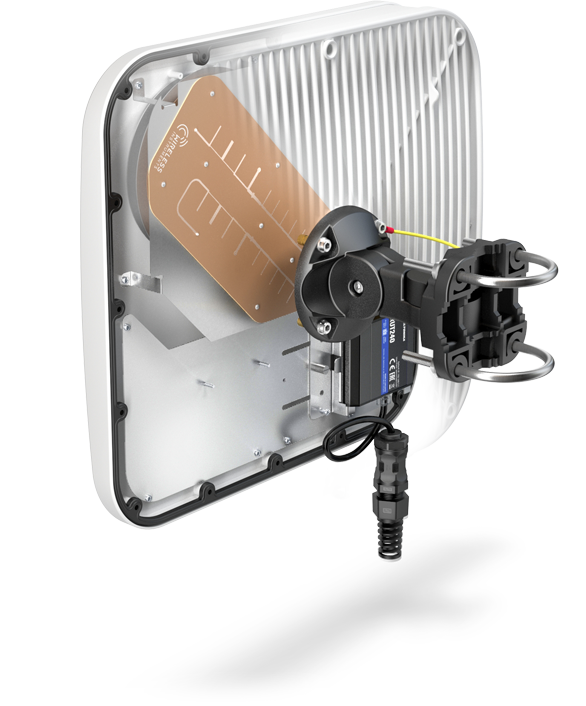

Integrated outdoor multi band eXtra Range LTE directional antenna + place to install Teltonika RUT200/240/241/901/950/951/955/956/X09/X11

QuMAX eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure.
Compatible Teltonika routers: RUT200, RUT240, RUT241, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09, RUTX11.

NOTE: There is also available version with extreme high gain antenna for high bands (2300-2700 MHz) – QuMax XR LTE High Band.
  • Outdoor antenna works in any weather conditions, IP67
  • Antenna perfectly matched with the router
  • Passive PoE support
  • Easy to install
LTE ANTENNA SPECIFICATION
Frequency 0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n53, n65, n66, n67, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain 0.694 - 0.96 GHz : 7 dBi
1.7 - 2.2 GHz : 7 dBi
2.2 - 2.7 GHz : 7 dBi
Front-to-Back >10 dB
VSWR <1.70, max <2.00
Beamwidth 70°/70° ±15°
Polarization Dual polarized X-Pol
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Connector type RJ45
Ingress protection IP67
Dimensions 392 x 392 x 99 mm
15.43 x 15.43 x 3.90 inch
Weight 3.7 kg
8.16 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
Frequency bands
LTE / 4G
GSM
617 MHz 5 8 12 13 14 17 18 19 20 26 27 28 29 44 67 68 85 103 106 n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n81 n82 n83 n85 n89 n100 960 MHz
LTE / 4G
UMTS
1710 MHz 1 2 3 4 9 10 25 33 34 35 36 37 39 n1 n2 n3 n25 n34 n39 n80 n84 n86 n95 n98 n101 2170 MHz
LTE / 4G
WCS
DARS
2300 MHz 30 40 n30 n40 n97 2400 MHz
LTE / 4G
2400 MHz 7 38 41 53 69 n7 n38 n41 n53 n90 2700 MHz

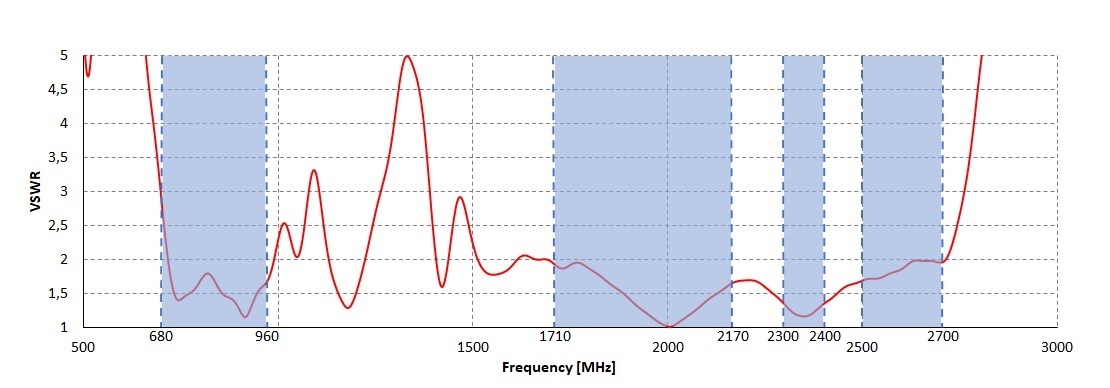

VSWR PORT 1

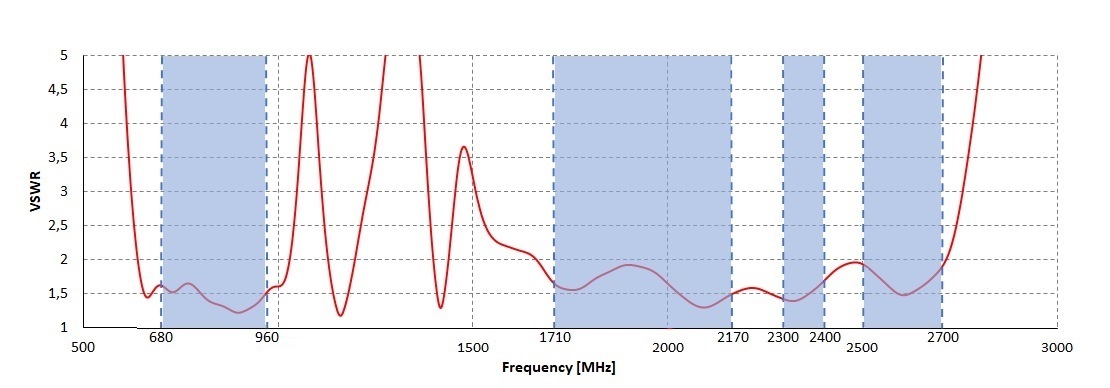

VSWR PORT 2

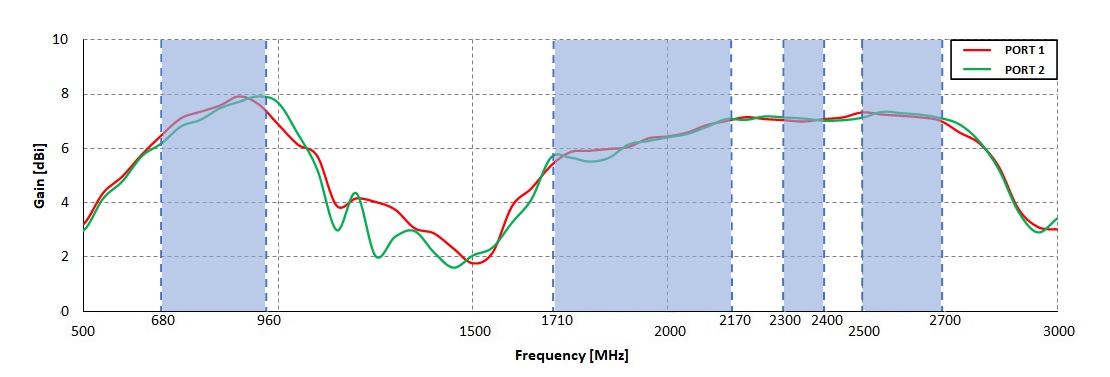

Gain

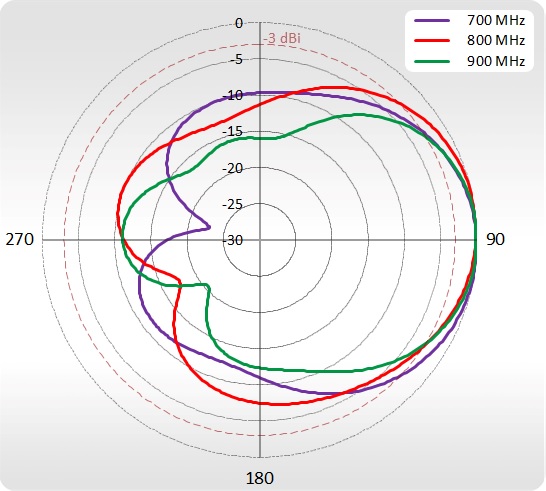

PORT 1 700-900 MHz Azimuth

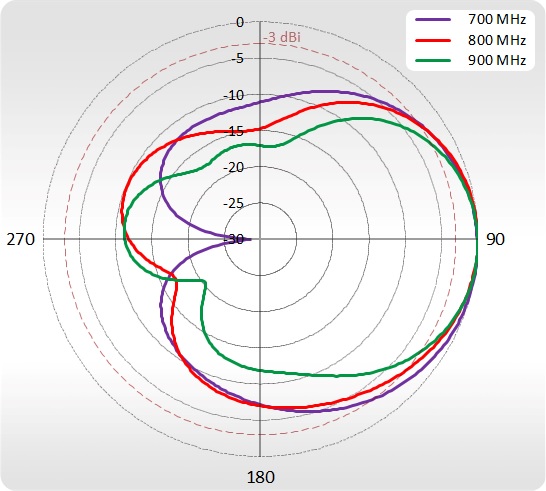

PORT 1 700-900 MHz Elevation

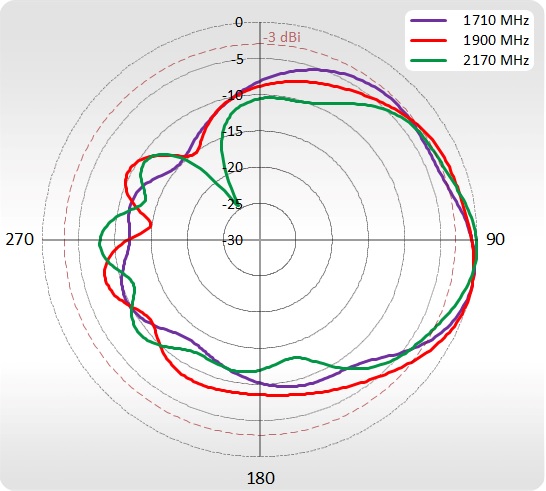

PORT 1 1710-2170 MHz Azimuth

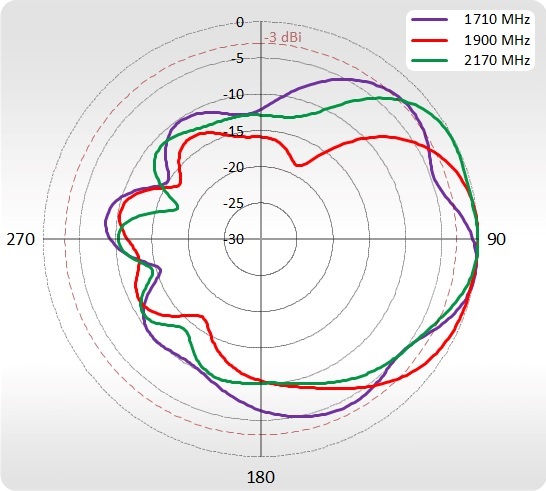

PORT 1 1710-2170 MHz Elevation

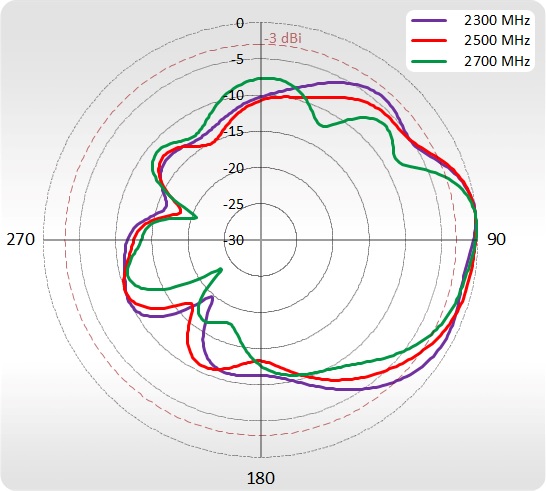

PORT 1 2300-2700 MHz Azimuth

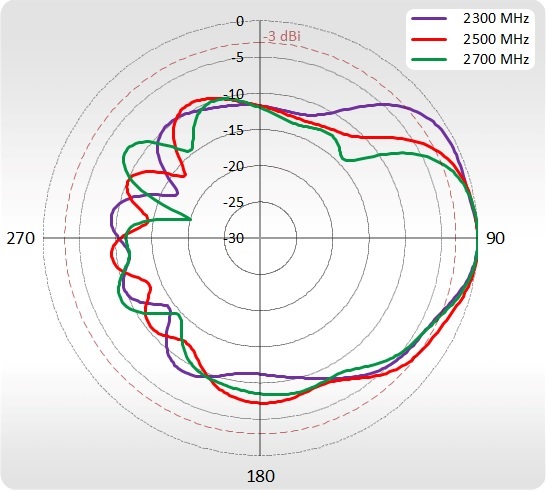

PORT 1 2300-2700 MHz Elevation

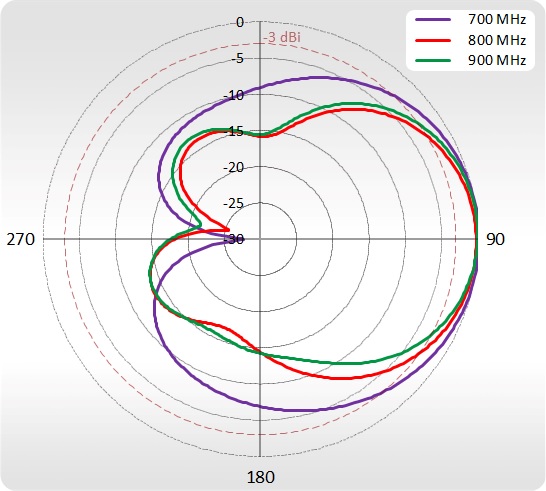

PORT 2 700-900 MHz Azimuth

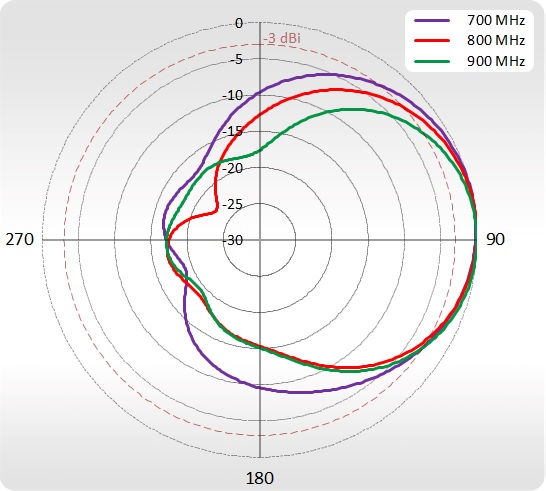

PORT 2 700-900 MHz Elevation

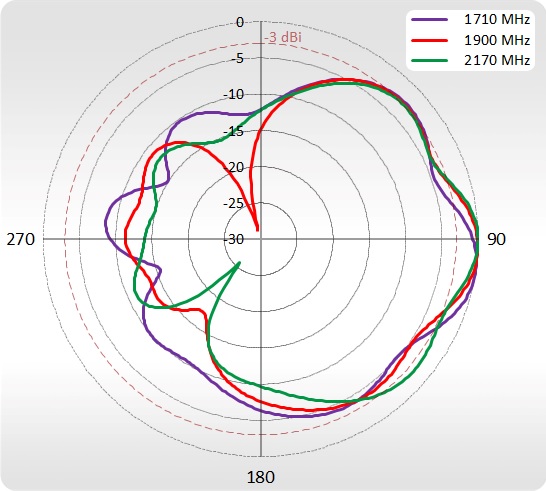

PORT 2 1710-2170 MHz Azimuth

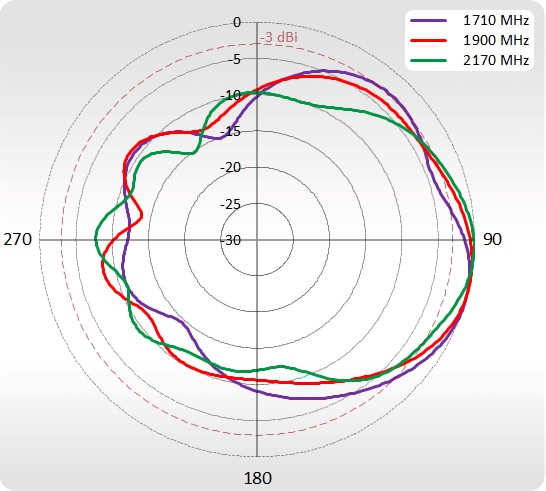

PORT 2 1710-2170 MHz Elevation

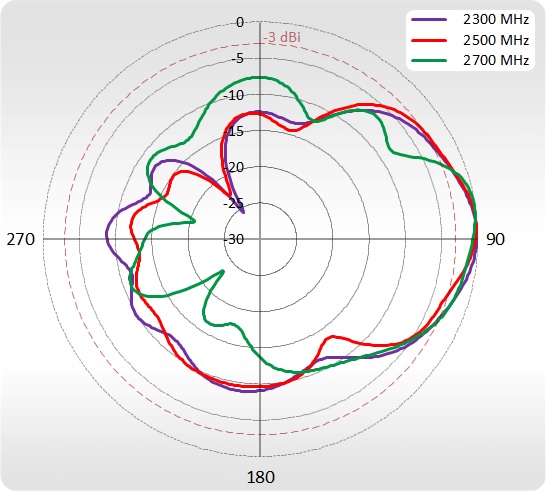

PORT 2 2300-2700 MHz Azimuth

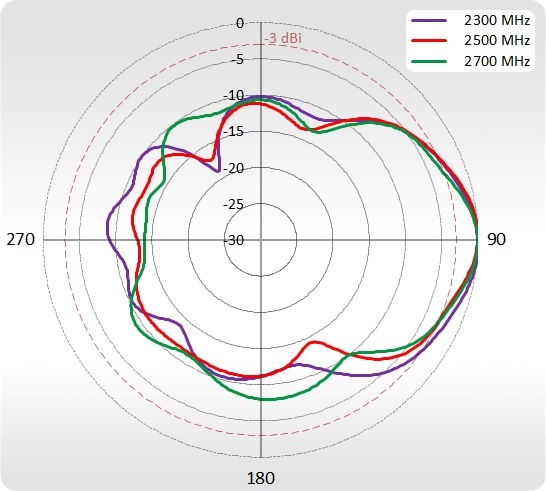

PORT 2 2300-2700 MHz Elevation

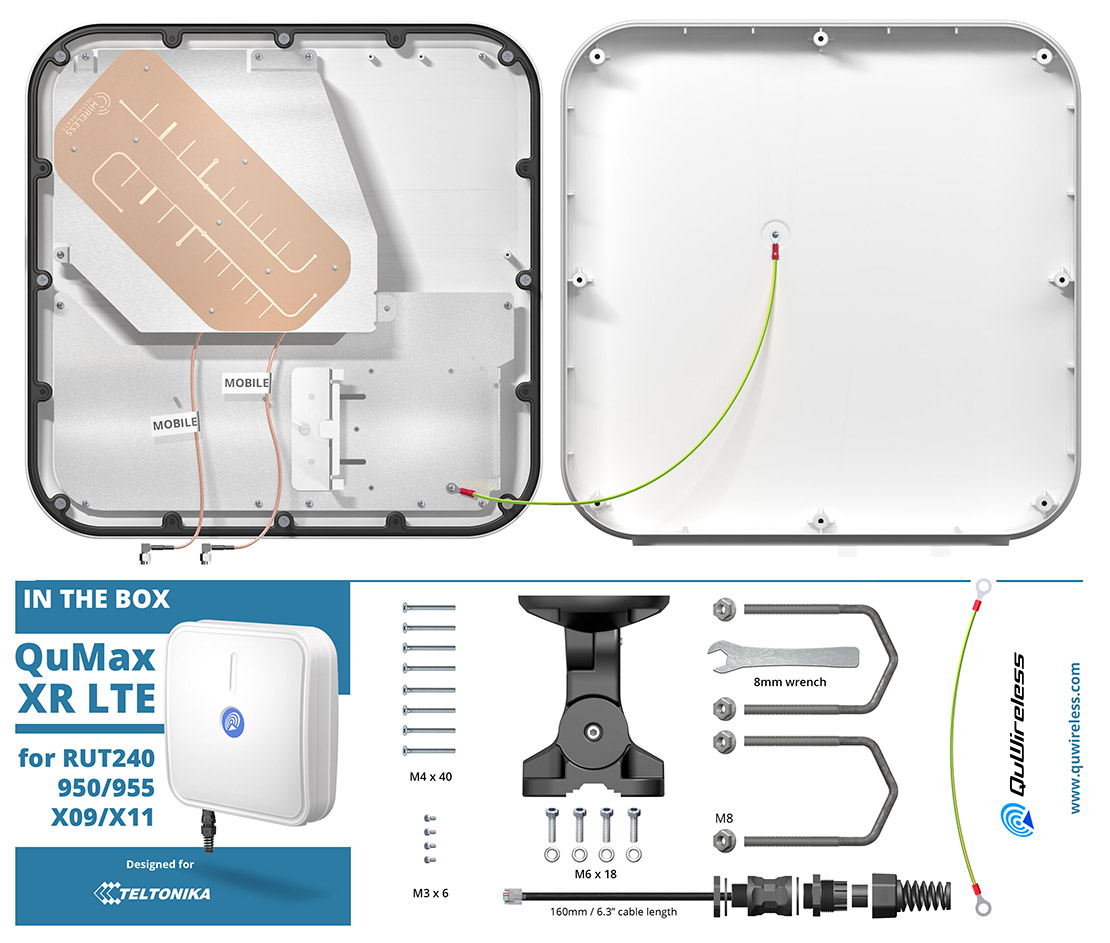

In the box
