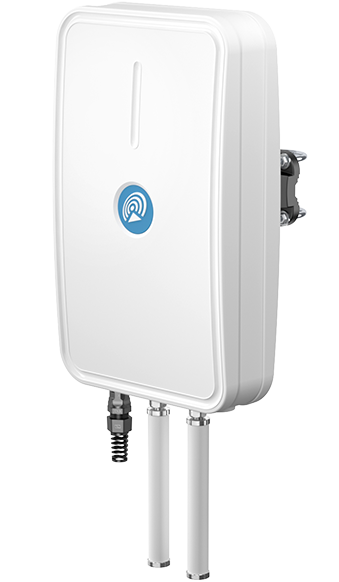

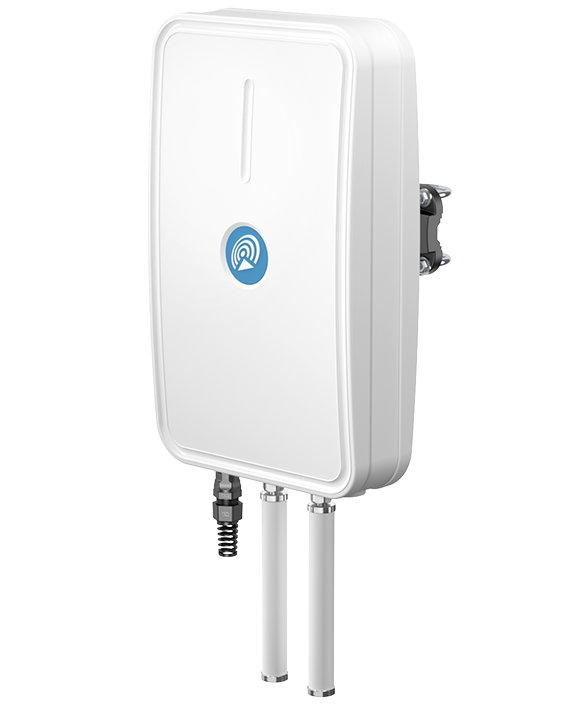

QuMax Omni for Teltonika RUTX50

P/N: AX50MO

Integrated multi-band LTE & 5G omni antenna + Wi-Fi omni antenna + GPS + place to install Teltonika RUTX50 (All-in-one)

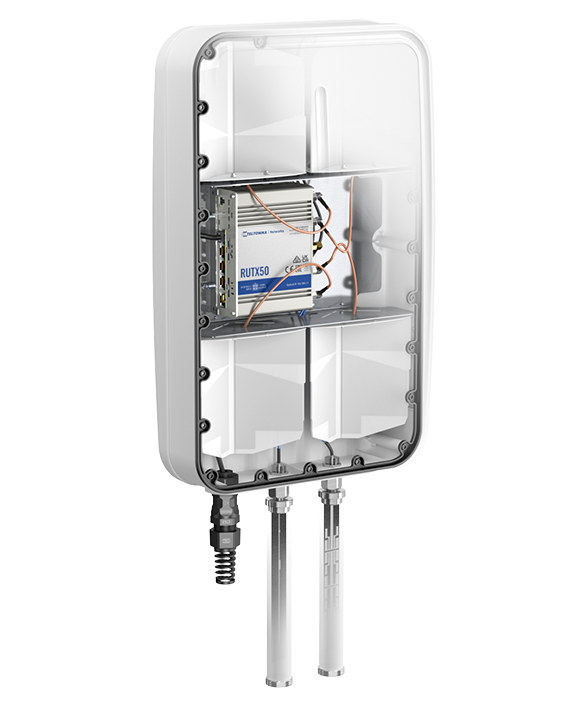

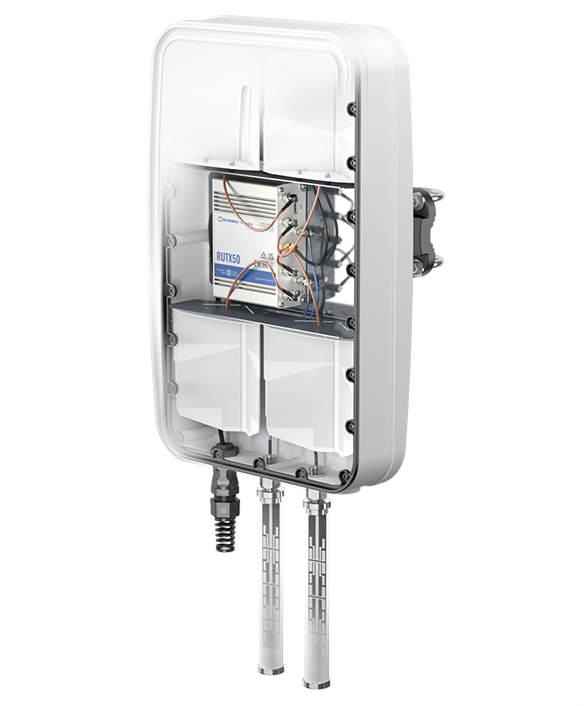

QuMax Omni is a 5G omnidirectional MIMO 4x4 antenna for the Teltonika RUTX50 router. The antenna covers a wide frequency range from 617MHz (Band71) to 3.8GHz. Apart from 5G, also Wi-Fi and GPS antennas are included, which means you get an all-in-one solution for your RUTX50. Additional router compartment inside the housing creates a variety of new outdoor (IP67) scenarios. It is recommended for moving applications, like trains, buses, yachts or campers, but also to improve signal quality in rural areas. NOTE! The antenna doesn’t support B 32 band and n 77 above 3800 MHz band!
  • Outdoor antenna works in any weather conditions, IP67
  • Antenna perfectly matched with the router
  • Passive PoE support
  • Easy to install
LTE ANTENNA SPECIFICATION
Frequency 0.617 - 0.96 GHz
1.7 - 2.2 GHz
2.3 - 2.7 GHz
3.3 - 3.8 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain 0.617 - 0.96 GHz : 3 dBi
1.7 - 2.2 GHz : 3.5 dBi
2.3 - 2.7 GHz : 3.5 dBi
3.3 - 3.8 GHz : 4 dBi
VSWR <1.80, max <2.00
Beamwidth 360°/35° ±5°
Polarization Vertical
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
4.70 - 6.00 GHz
Gain 2.40 - 2.50 GHz : 6 dBi
4.70 - 6.00 GHz : 7 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE, Fiberglass
Ingress protection IP67
Connector type RJ45

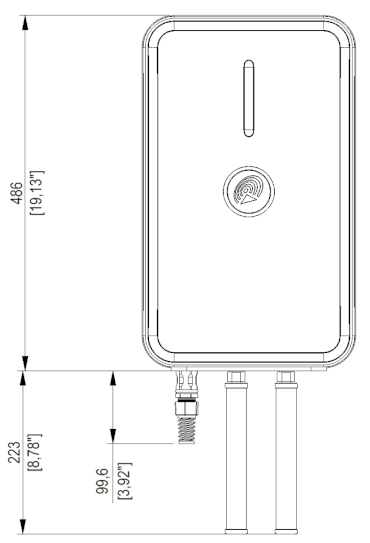

Dimensions 292.2 x 486.0 x 105.6 mm
11.5 x 19.13 x 4.16 inch
Weight 2.5 kg
5.51 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
DEVICE SPECIFICATION (NOT INCLUDED)

RUTX50 is a robust industrial 5G router equipped with 5x Gigabit Ethernet ports, WiFi, Dual-SIM, GPS, a powerful CPU and RutOS software for advanced networking solutions.

RUTX50 Datasheet
RUTX50 User Manual
RUTX50 Quick Start Guide
Frequency bands
LTE / 4G
GSM
617 MHz 5 8 12 13 14 17 18 19 20 26 27 28 29 44 67 68 71 85 103 106 n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n71 n81 n82 n83 n85 n89 n100 960 MHz
LTE / 4G
UMTS
1710 MHz 1 2 3 4 9 10 25 33 34 35 36 37 39 n1 n2 n3 n25 n34 n39 n80 n84 n86 n95 n98 n101 2170 MHz
LTE / 4G
WCS
DARS
2300 MHz 30 40 n30 n40 n97 2400 MHz
LTE / 4G
2400 MHz 7 38 41 53 69 n7 n38 n41 n53 n90 2700 MHz
LTE / 5G
3300 MHz 22 42 43 48 49 52 n48 n78 3800 MHz
VSWR for LTE antenna
650 - 950 MHz LTE Elevation
650 - 950 MHz LTE Azimuth
1710 - 2170 MHz LTE Elevation
1710 - 2170 MHz LTE Azimuth
2300 - 2700 MHz LTE Elevation
2300 - 2700 MHz LTE Azimuth
3300 - 3800 MHz LTE Elevation
3300 - 3800 MHz LTE Azimuth
