QuSpot for Teltonika RUT200/241/240/230

P/N: A240S

Integrated multi-band LTE omni antenna + WiFi omni antenna + place to install Teltonika RUT200, RUT241, RUT240 or RUT230 (All-in-one)

QuSpot omni LTE antenna for Teltonika RUT200, RUT241, RUT240 or 230 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antenna. If you use RUT200, RUT241, RUT240 or 230 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

NOTE: For RUT230 one LTE antenna is unplugged.

Datasheet

3D Model

Send Inquiry

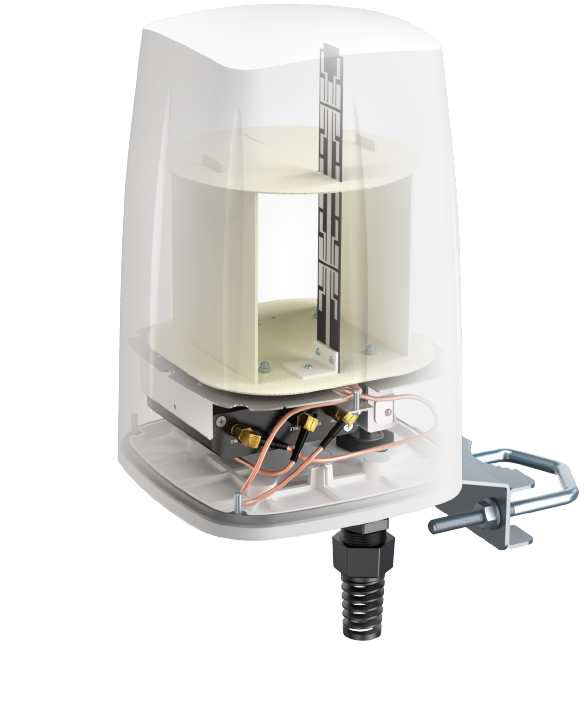

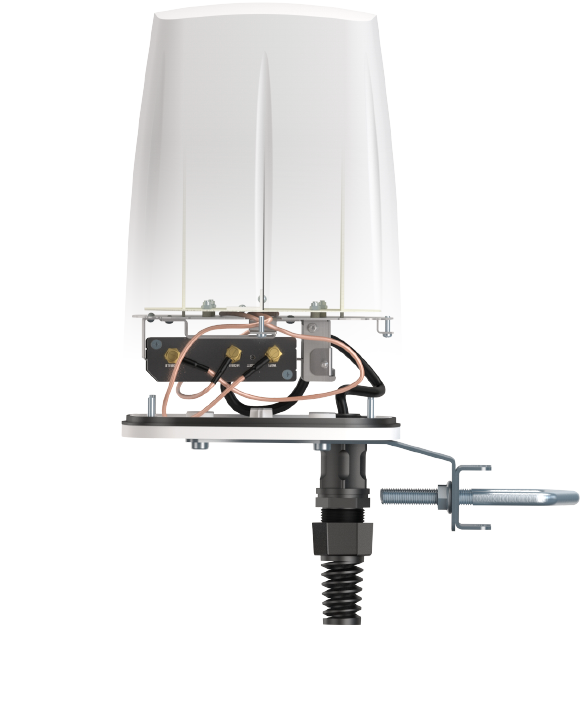

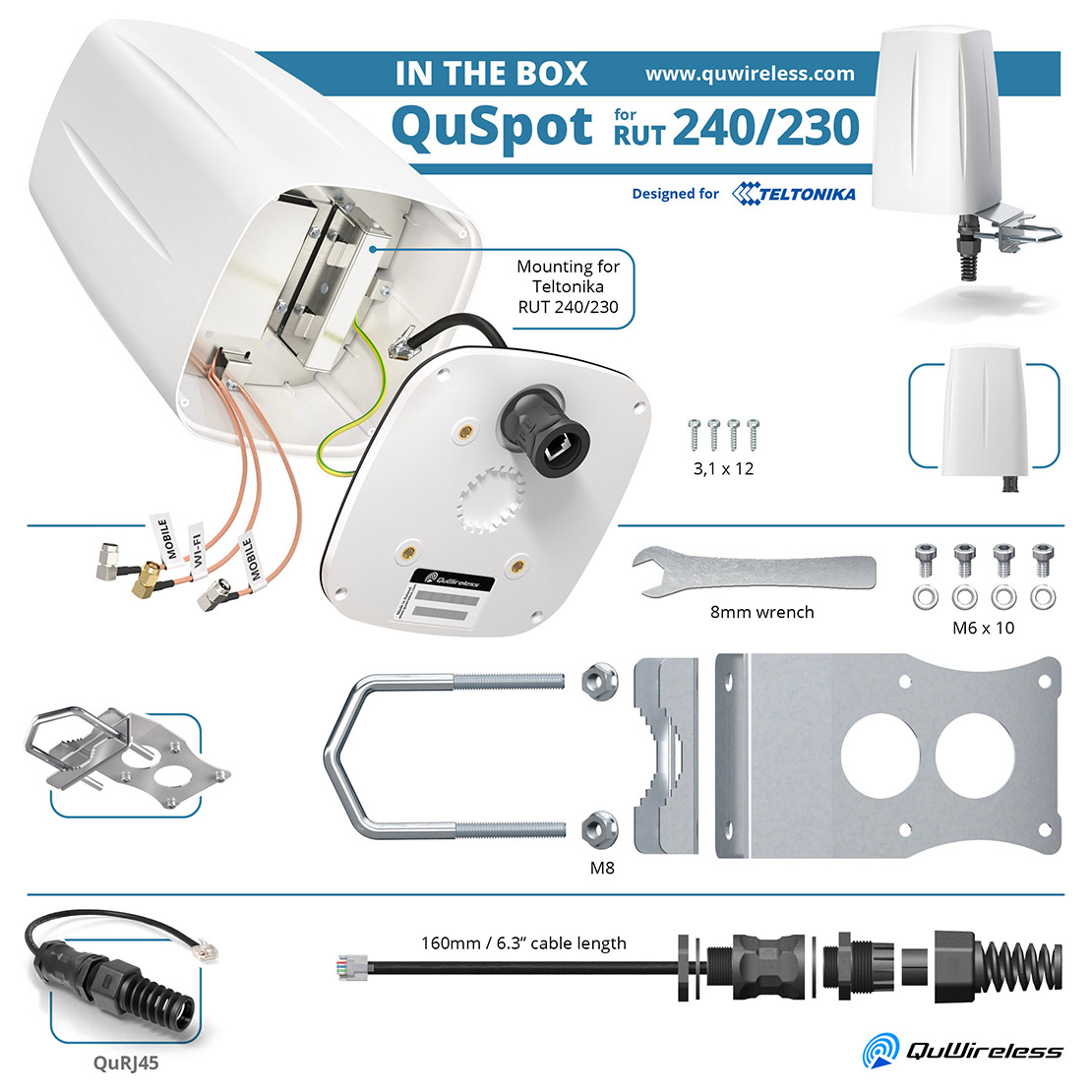

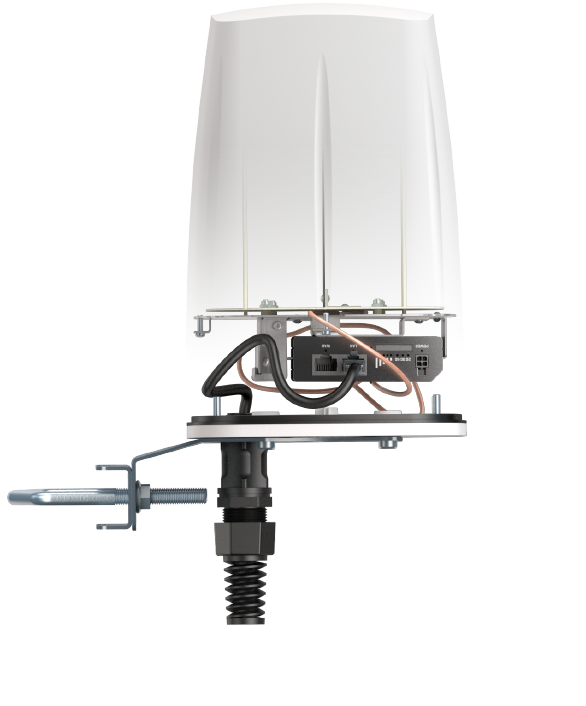

All antennas and Teltonika router integrated in one enclosure
Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router
Passive PoE support

LTE ANTENNA SPECIFICATION
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n53, n65, n66, n67, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain	0.694 - 0.96 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi
VSWR	<1.60, max <2.00
Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ω

WI-FI ANTENNA SPECIFICATION
Frequency	2.40 - 2.50 GHz
Gain	6 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

DEVICE SPECIFICATION (NOT INCLUDED)
RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities. RUT200 Datasheet RUT200 User Manual RUT200 Quick Start Guide
Compact but powerful 4G LTE & WiFi cellular router with Ethernet and I/O. Great for quick deployment in mission critical IoT applications where advanced Networking, VPN and security features are needed. RUT241 Datasheet RUT241 User Manual RUT241 Quick Start Guide
Compact but powerful 4G LTE & WiFi cellular router with Ethernet and I/O. Great for quick deployment in mission critical IoT applications where advanced Networking, VPN and security features are needed. RUT240 Datasheet RUT240 User Manual RUT240 Quick Start Guide
Compact but powerful 4G LTE & WiFi cellular router with Ethernet and I/O. Great for quick deployment in mission critical IoT applications where advanced Networking, VPN and security features are needed. RUT230 Datasheet RUT230 User Manual RUT230 Quick Start Guide
