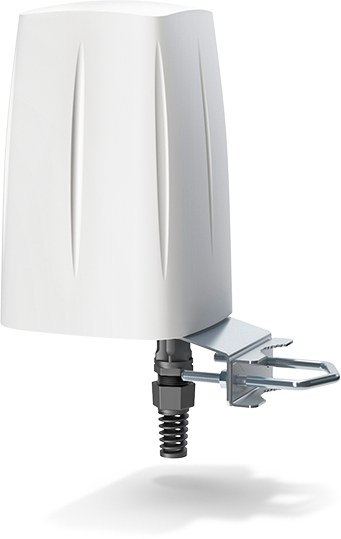

QuSpot for Teltonika RUT901/951/950/900

P/N: A950S

Integrated multi-band LTE omni antennas + WiFi omni antennas + place to install Teltonika RUT901, RUT951, RUT950 or 900 (All-in-one)

QuSpot omni LTE antenna for Teltonika RUT901, RUT951, RUT950 or 900 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also omni Wi-Fi antennas. If you use RUT901, RUT951, RUT950 or 900 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Datasheet

3D Model

Send Inquiry

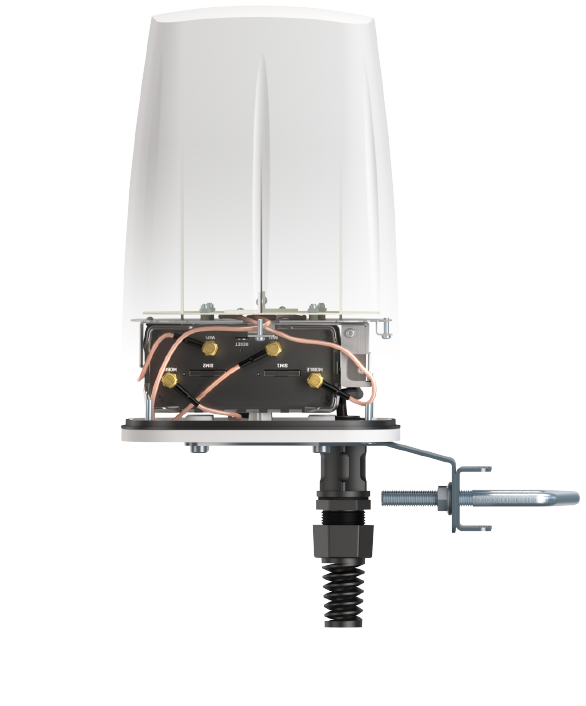

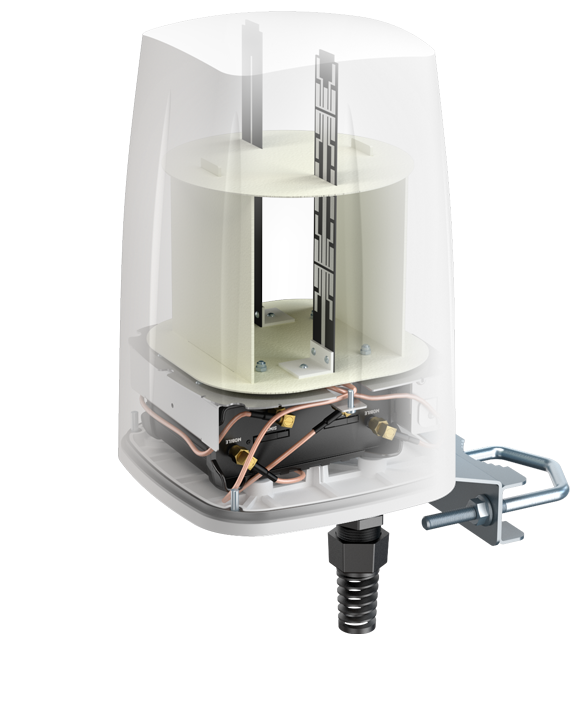

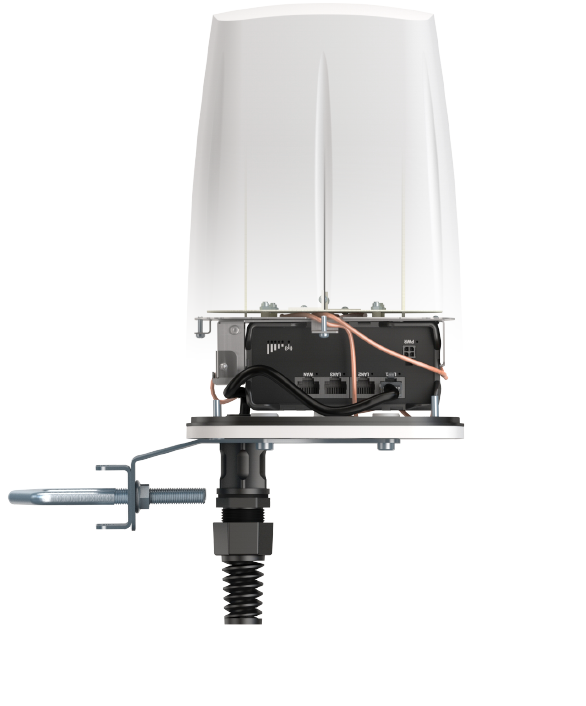

All antennas and Teltonika router integrated in one enclosure
Outdoor antenna works in any weather conditions, IP67
Antenna perfectly matched with the router

Passive PoE support
Easy to install
Dual SIM with auto Failover

LTE ANTENNA SPECIFICATION
Frequency	0.694 - 0.96 GHz 1.7 - 2.2 GHz 2.2 - 2.7 GHz
Supported LTE/5G bands	1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n53, n65, n66, n67, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

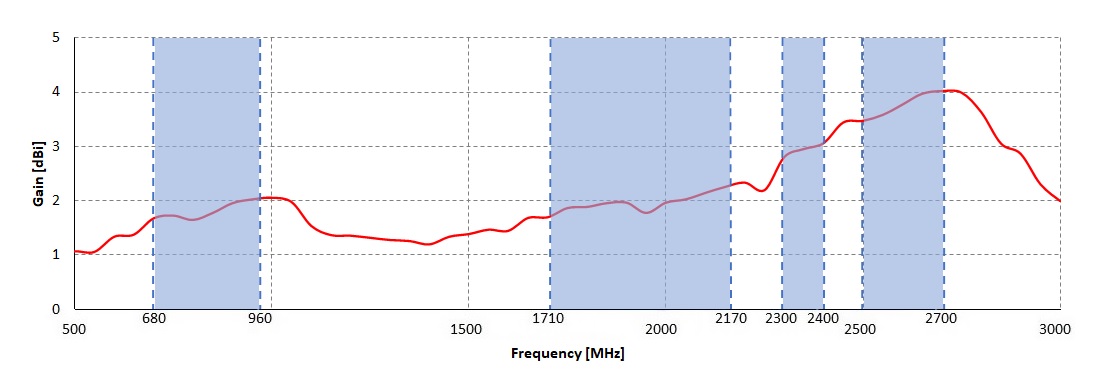

Gain	0.694 - 0.96 GHz : 2 dBi 1.7 - 2.2 GHz : 2 dBi 2.2 - 2.7 GHz : 4 dBi

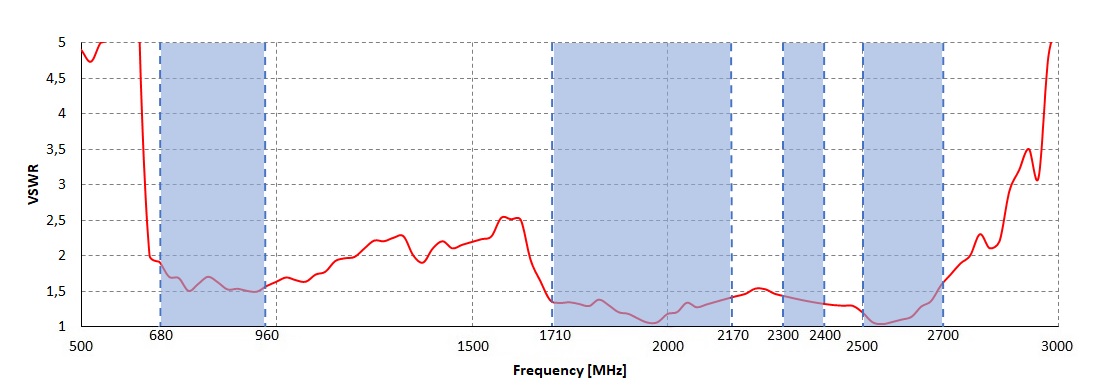

VSWR	<1.60, max <2.00

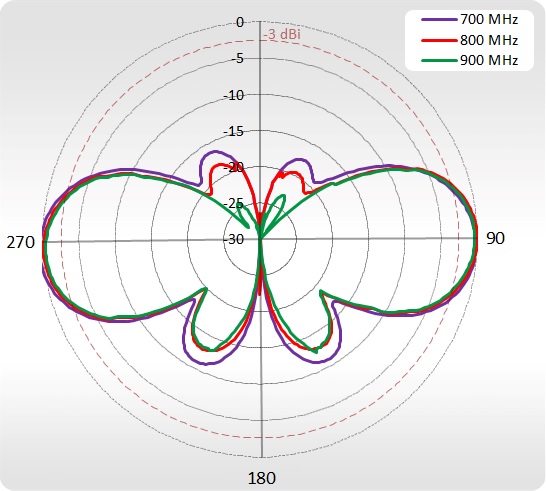

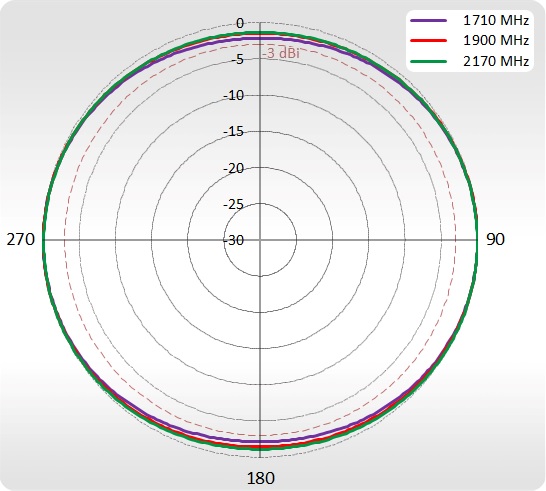

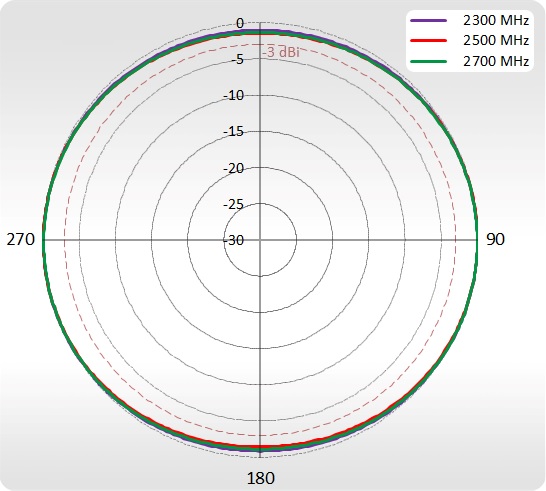

Beamwidth	360°/35° ±5°
Polarization	Vertical
Impedance	50 Ω

WI-FI ANTENNA SPECIFICATION
Frequency	2.40 - 2.50 GHz
Gain	6 dBi

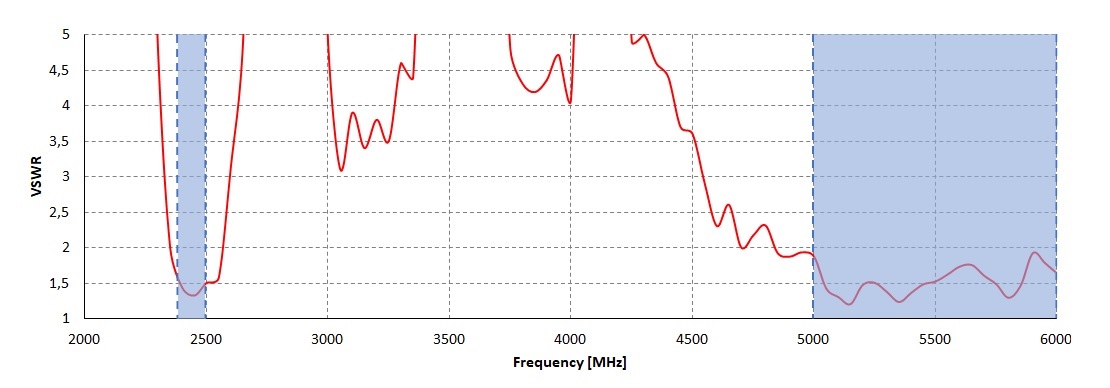

VSWR	<1.70, max <2.00

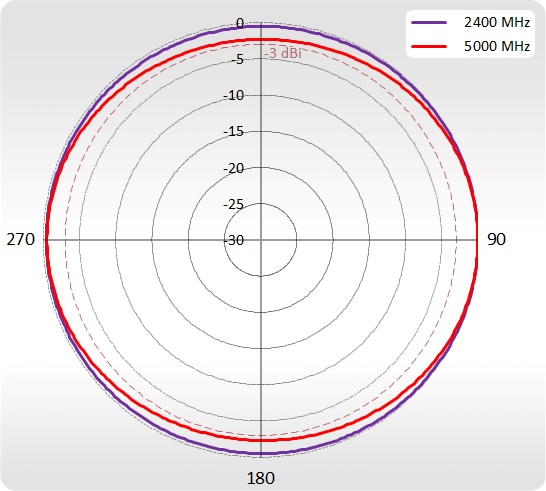

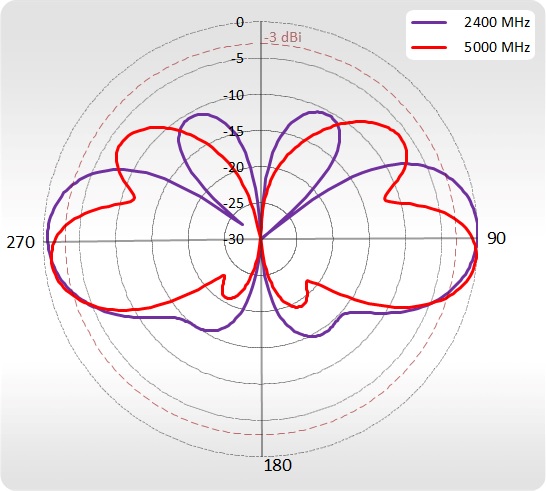

Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

DEVICE SPECIFICATION (NOT INCLUDED)
The RUT901 cellular router delivers the top-rated features of its predecessors, the RUT950 and RUT951, to the market. The device ensures high-performance, providing automatic WAN failover to an available backup connection, guaranteeing network continuity and eliminating downtime. RUT901 Datasheet RUT901 User Manual RUT901 Quick Start Guide
Rugged and durable professional 4G LTE Dual SIM cellular router with advanced WiFi, Ethernet and industrial grade networking functionality support. Quick to deploy, easy to manage and flexible for applications across most demanding market sectors. RUT951 Datasheet RUT951 User Manual RUT951 Quick Start Guide
Rugged and durable professional 4G LTE Dual SIM cellular router with advanced WiFi, Ethernet and industrial grade networking functionality support. Quick to deploy, easy to manage and flexible for applications across most demanding market sectors. RUT950 Datasheet RUT950 User Manual RUT950 Quick Start Guide
Dual SIM 3G industrial cellular router with WiFi and multiple Ethernet interfaces. Highly secure and reliable OpenWrt based router for most demanding low bandwidth applications where advanced networking functionality is needed. RUT900 Datasheet RUT900 User Manual RUT900 Quick Start Guide
