QuSpot for Teltonika RUTX10

P/N: AX10S

Integrated outdoor Wi-Fi dual band 2.4 & 5 GHz omni antenna + Bluetooth omni antenna + place to install Teltonika RUTX10 (All-in-one)

QuSpot Wi-Fi antenna for Teltonika RUTX10 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded also Wi-Fi dual band 2.4 & 5GHz omni antenna and Bluetooth omni antenna. If you use RUTX10 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.

Datasheet

3D Model

Send Inquiry

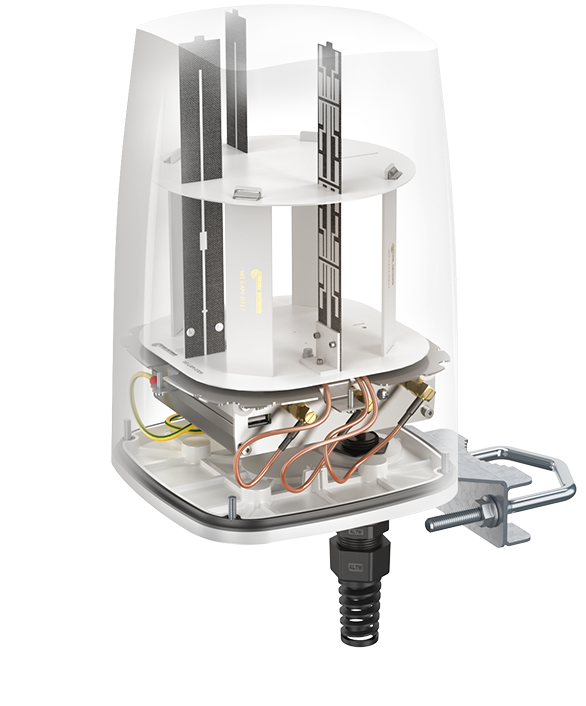

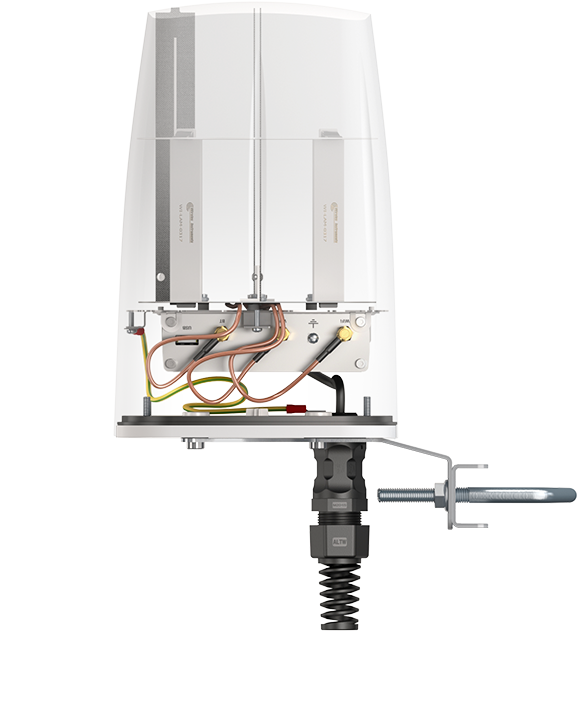

All antennas and Teltonika router integrated in one enclosure
Outdoor antenna works in any weather conditions, IP67

Antenna perfectly matched with the router
Passive PoE support

WI-FI ANTENNA SPECIFICATION
Frequency	2.40 - 2.50 GHz 4.70 - 6.00 GHz

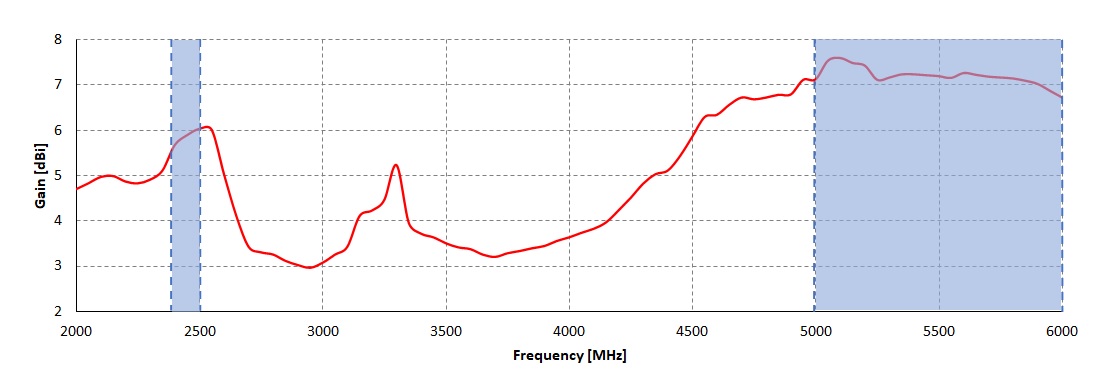

Gain	2.40 - 2.50 GHz : 6 dBi 4.70 - 6.00 GHz : 7 dBi

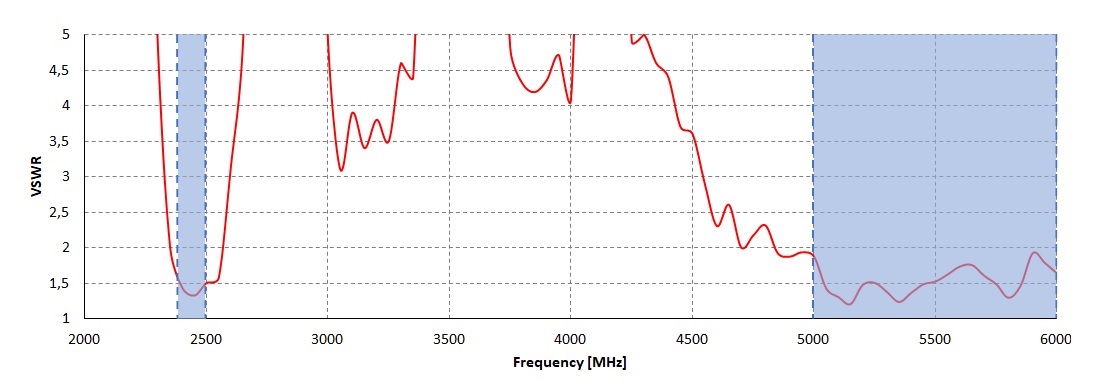

VSWR	<1.70, max <2.00

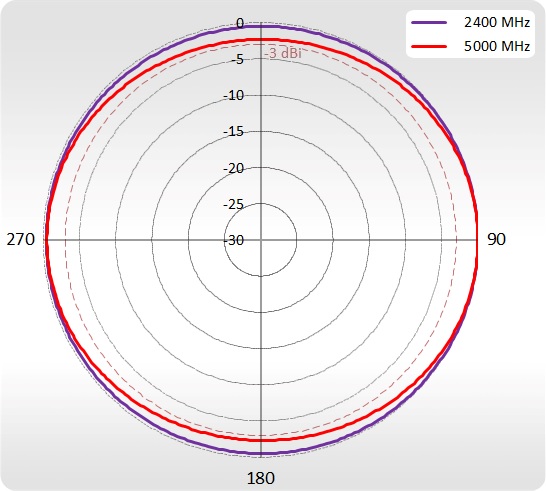

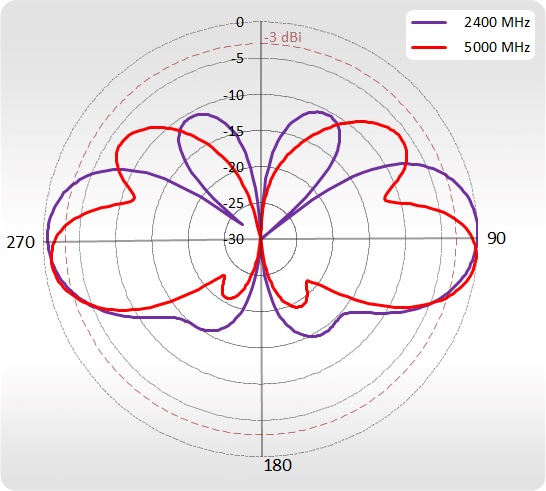

Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

BLUETOOTH ANTENNA SPECIFICATION
Frequency	2.40 - 2.50 GHz
Gain	6 dBi
VSWR	<1.70, max <2.00
Beamwidth	360°/25° ±5°
Polarization	Vertical
Impedance	50 Ω

MECHANICAL SPECIFICATION
Materials	ABS, aluminum, PTFE
Connector type	RJ45
Ingress protection	IP67
Dimensions	160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch
Weight	1.5 kg 3.31 lbs
Operating temperature	From -40°C to 75°C From -40°F to 167°F

DEVICE SPECIFICATION (NOT INCLUDED)
Next-Generation Teltonika Enterprise router, equipped with the Dual Band WiFi 5 802.11ac and a Bluetooth LE module. Perfect for Small office or Public sector applications. High speed WiFi connectivity allows companies to transition into all-wireless office settings. RUTX10 Datasheet RUTX10 User Manual RUTX10 Quick Start Guide
