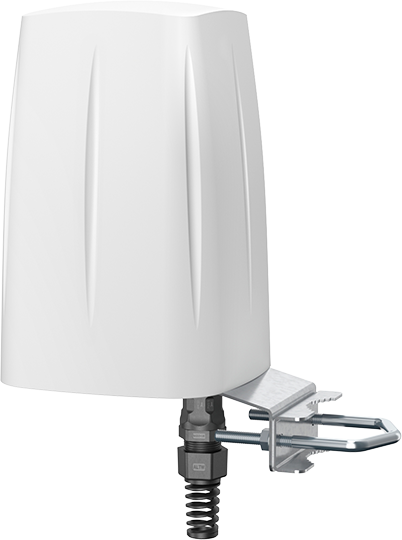

QuSpot for Teltonika RUTX50

P/N: AX50S

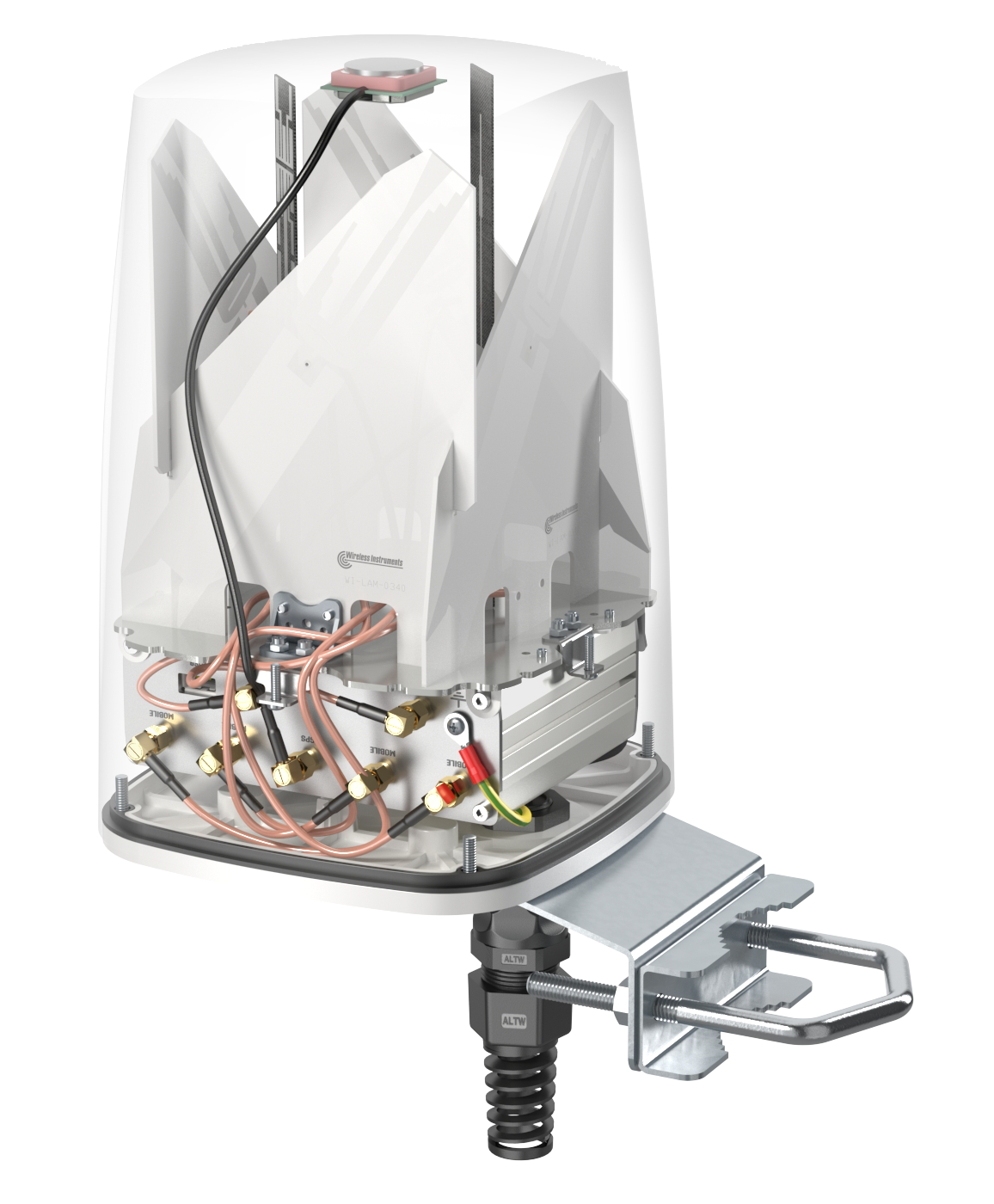

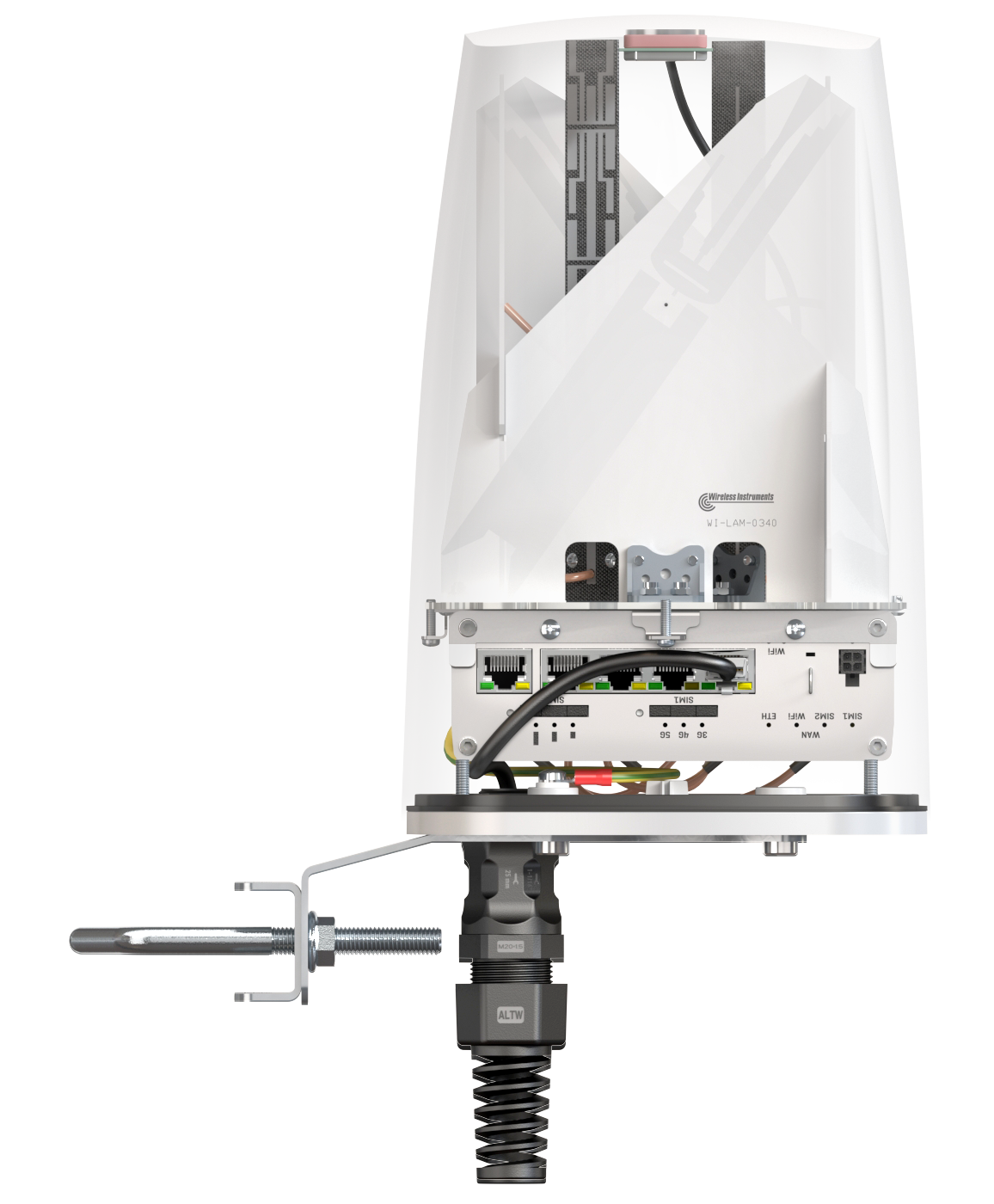

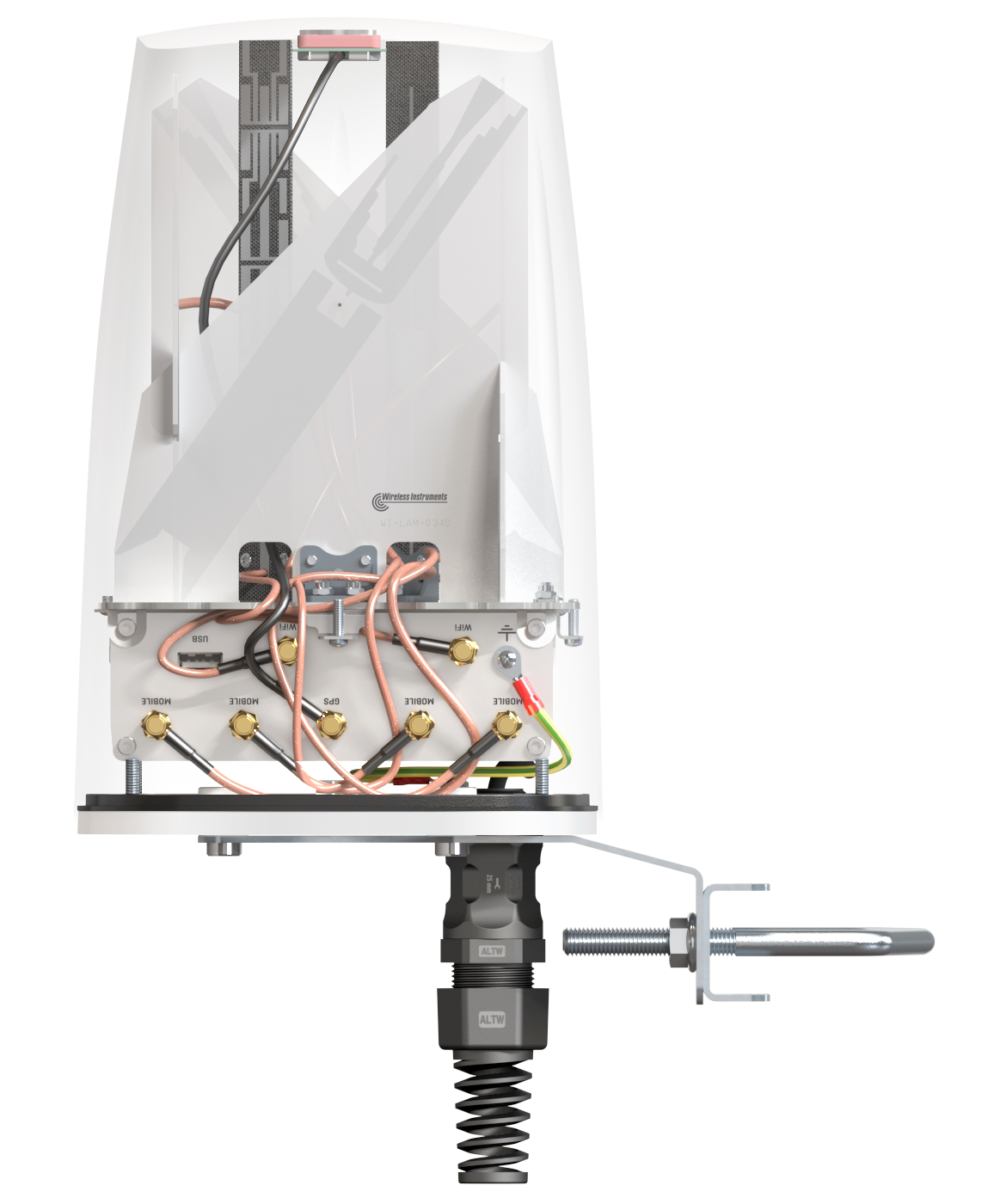

Integrated multi-band LTE & 5G omni antenna + Wi-Fi omni antenna + GPS + place to install Teltonika RUTX50 (All-in-one)

QuSpot for RUTX50 is an outdoor antenna designed to provide reliable wireless connectivity in a variety of environments. This product is an all-in-one solution that integrates a high-gain, omnidirectional 5G and Wi-Fi antennas with RUTX50 into a single IP67 enclosure. Such integration allows implementation of new, outdoor RUTX50 solutions.

QuSpot for RUTX50 is an ideal solution for outdoor wireless connectivity in moving applications such as transportation, yachting, boats and camping but also city centres with high signal density.
  • All antennas and Teltonika router integrated in one enclosure
  • Outdoor antenna works in any weather conditions, IP67
  • Antenna perfectly matched with the router
  • Passive PoE support
  • Easy to install
  • Dual SIM with auto Failover
LTE ANTENNA SPECIFICATION
Frequency 0.617 - 0.96 GHz
1.7 - 2.7 GHz
3.3 - 4.3 GHz
Supported LTE/5G bands 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106, n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256
Gain 0.617 - 0.96 GHz : 2.5 dBi
1.7 - 2.7 GHz : 4 dBi
3.3 - 4.3 GHz : 4.5 dBi
VSWR <2.00, max <2.50
Beamwidth 360°/35° ±5°
Polarization Vertical
Impedance 50 Ω
WI-FI ANTENNA SPECIFICATION
Frequency 2.40 - 2.50 GHz
5.000 - 7.125 GHz
Gain 2.40 - 2.50 GHz : 6 dBi
5.000 - 7.125GHz : 7.5 dBi
VSWR <1.70, max <2.00
Beamwidth 360°/25° ±5°
Polarization Vertical
Impedance 50 Ω
MECHANICAL SPECIFICATION
Materials ABS, aluminum, PTFE
Connector type RJ45
Ingress protection IP67
Dimensions 160 x 160 x 240 mm
6.3 x 6.3 x 9.45 inch
Weight 1.5 kg
3.31 lbs
Operating temperature From -40°C to 75°C
From -40°F to 167°F
DEVICE SPECIFICATION (NOT INCLUDED)

RUTX50 is a robust industrial 5G router equipped with 5x Gigabit Ethernet ports, WiFi, Dual-SIM, GPS, a powerful CPU and RutOS software for advanced networking solutions.

RUTX50 Datasheet
RUTX50 User Manual
RUTX50 Quick Start Guide
Frequency bands
LTE / 4G
GSM
617 MHz 5 8 12 13 14 17 18 19 20 26 27 28 29 44 67 68 71 85 103 106 n5 n8 n12 n13 n14 n18 n20 n26 n28 n29 n67 n71 n81 n82 n83 n85 n89 n100 960 MHz
LTE / 4G
UMTS
1710 MHz 1 2 3 4 9 10 25 33 34 35 36 37 39 n1 n2 n3 n25 n34 n39 n80 n84 n86 n95 n98 n101 2170 MHz
LTE / 4G
WCS
DARS
2300 MHz 30 40 n30 n40 n97 2400 MHz
LTE / 4G
2400 MHz 7 38 41 53 69 n7 n38 n41 n53 n90 2700 MHz
LTE / 5G
3300 MHz 22 42 43 48 49 52 n48 n78 3800 MHz
617 - 960 MHz LTE Azimuth
617 - 960 MHz LTE Elevation
1710 - 2500 MHz LTE Azimuth
1710 - 2500 MHz LTE Elevation
3300 - 4200 MHz LTE Azimuth
3300 - 4200 MHz LTE Elevation
2400 - 5700 MHz Wi-Fi Azimuth
2400 - 5700 MHz Wi-Fi Elevation
Use cases
Solution where RUTX50 is being used
